Official File parts/s/47996s01.dat

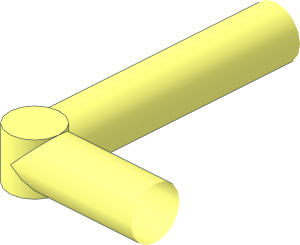

~Boat Rigging 4 x 28 Corner Joint
File Header:
0 ~Boat Rigging 4 x 28 Corner Joint 0 Name: s\47996s01.dat 0 Author: William Howard [WilliamH] 0 !LDRAW_ORG Subpart UPDATE 2025-09 0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03 0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW 0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 4 0 0 0 16 0 -4 0 0 0 0 4 4-4cyli.dat 1 16 0 0 4 4 0 0 0 0 4 0 36 0 4-4cyli.dat 1 16 0 0 0 4 0 0 0 4 0 0 0 4 1-8tric.dat 1 16 0 0 0 0 0 4 0 -4 0 4 0 0 1-8tric.dat 1 16 0 0 4 0 0 -4 -4 0 0 0 -4 0 1-4cyls.dat 1 16 0 -4 0 0 0 -4 0 4 0 4 0 0 1-4cyls.dat 1 16 0 4 0 0 0 -4 0 -4 0 4 0 0 1-4cyls.dat 1 16 0 4 0 4 0 0 0 -4 0 0 0 -4 1-4cyls.dat 1 16 0 -4 0 4 0 0 0 4 0 0 0 -4 1-4cyls.dat 1 16 0 0 4 0 0 -4 4 0 0 0 -4 0 1-4cyls.dat 1 16 4 0 0 0 -4 0 4 0 0 0 0 -4 1-4cyls.dat 1 16 4 0 0 0 -4 0 -4 0 0 0 0 -4 1-4cyls.dat 1 16 0 -4 0 0 0 4 0 4 0 -4 0 0 4-4disc.dat 1 16 0 4 0 0 0 4 0 -4 0 4 0 0 4-4disc.dat 1 16 0 -4 0 0 0 -4 0 8 0 -4 0 0 1-4cyli.dat 1 16 0 4 0 0 0 4 0 -4 0 4 0 0 4-4edge.dat 1 16 0 0 0 0 0 -4 -4 2.82843 0 4 2.82843 0 1-4edge.dat 1 16 0 0 0 0 0 -4 4 2.82843 0 4 -2.82843 0 1-4edge.dat 1 16 0 0 0 4 2.82843 0 4 -2.82843 0 0 0 -4 1-4edge.dat 1 16 0 0 0 4 -2.82843 0 -4 -2.82843 0 0 0 -4 1-4edge.dat 1 16 0 -4 0 0 0 4 0 -4 0 4 0 0 4-4edge.dat 0
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 0 0 0 0 -4 -4 2.82843 0 4 2.82843 0 1-4edge.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 0 0 0 0 -4 4 2.82843 0 4 -2.82843 0 1-4edge.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 0 0 4 2.82843 0 4 -2.82843 0 0 0 -4 1-4edge.dat
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 1 16 0 0 0 4 -2.82843 0 -4 -2.82843 0 0 0 -4 1-4edge.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © William Howard
Licensed under CC BY 2.0
