File Detail parts/s/4858s01.dat

Official File parts/s/4858s01.dat

File Header:

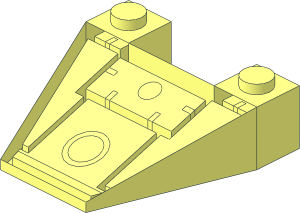

0 ~Wedge  4 x  4 without Front Face
0 Name: s\4858s01.dat
0 Author: James Jessiman
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2001-11-30 [cwdee] corrected error on underside
0 !HISTORY 2001-12-17 [cwdee] corrected another erroneous line
0 !HISTORY 2003-08-04 [Holly-Wood] separated part without Front Face into subpart, fixed all zero row warnings, made BFC compliant.
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2007-09-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-09-18 [RainbowDolphin] Changed to CCW, fixed Y-scaled flat prims
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
