Official File parts/s/55817s03.dat

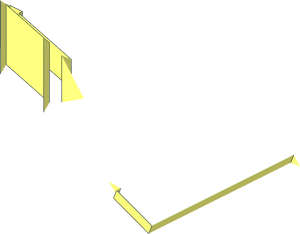

~Wheel 21 x 56 with 8 Spokes Armoured - 1/8 Spoke and Stiffener
File Header:
0 ~Wheel 21 x 56 with 8 Spokes Armoured - 1/8 Spoke and Stiffener 0 Name: s\55817s03.dat 0 Author: Greg Teft [gregteft] 0 !LDRAW_ORG Subpart UPDATE 2012-02 0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
Show contents
0 // spoke 1 16 35.445 0 -20.6455 0 .27734538 7.195 5.9 0 0 0 1 -1.9955 rect.dat 1 16 36.945 0 -17.948 0 -.2772858 -8.695 2.9 0 0 0 -1 2.411 rect.dat 1 16 26.75 0 -14.723 0 0 -1.5 2.9 0 0 0 -1 0 rect.dat 1 16 28.25 0 -15.13 0 -1 0 0 0 -2.9 .407 0 0 rect2p.dat 2 24 25.25 -4.596 -17 25.25 4.596 -17 2 24 28.25 -7.25 -20 28.25 7.25 -20 2 24 42.64 -7.25 -23.991 42.64 7.25 -23.991 2 24 45.64 -4.596 -22.655 45.64 4.596 -22.655 3 16 53 0 -24.696 45.64 4.596 -22.655 45.64 -4.596 -22.655 4 16 28.25 -7.25 -20 28.25 7.25 -20 28.25 5.9 -18.65 28.25 -5.9 -18.65 4 16 42.64 -5.9 -22.641 42.64 5.9 -22.641 42.64 7.25 -23.991 42.64 -7.25 -23.991 4 16 25.25 -2.9 -14.723 25.25 2.9 -14.723 25.25 4.596 -17 25.25 -4.596 -17 4 16 45.64 -4.596 -22.655 45.64 4.596 -22.655 45.64 2.9 -20.359 45.64 -2.9 -20.359 0 // stiffener 1 16 52.9645 21.939 -16.663 -.3825 -1 0 .924 -.41396104 0 0 0 .5 rect2p.dat 1 16 61.431 25.4455 -.0815 -.383 1 0 .9235 .41472658 0 0 0 -17.0815 rect2p.dat 2 24 61.814 24.522 -17.163 53.347 21.015 -17.163 2 24 52.582 22.863 -17.163 61.048 26.369 -17.163 3 16 50.351 20.856 -16.163 53.347 21.015 -16.163 52.582 22.863 -16.163 3 16 63.286 26.214 17 61.048 26.369 17 61.814 24.522 17 4 16 53.347 21.015 -17.163 61.814 24.522 -17.163 61.048 26.369 -17.163 52.582 22.863 -17.163 0
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 13: 1 16 35.445 0 -20.6455 0 .27734538 7.195 5.9 0 0 0 1 -1.9955 rect.dat
    Line 14: 1 16 36.945 0 -17.948 0 -.2772858 -8.695 2.9 0 0 0 -1 2.411 rect.dat
    Line 27: 1 16 52.9645 21.939 -16.663 -.3825 -1 0 .924 -.41396104 0 0 0 .5 rect2p.dat
    Line 28: 1 16 61.431 25.4455 -.0815 -.383 1 0 .9235 .41472658 0 0 0 -17.0815 rect2p.dat
This part has the following warnings
  • Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Greg Teft
Licensed under CC BY 2.0
