Official File parts/s/6057s03.dat

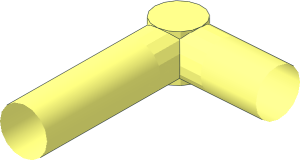

~Boat Rigging 5 x 15 Bottom Corner Joint
File Header:
0 ~Boat Rigging 5 x 15 Bottom Corner Joint 0 Name: s\6057s03.dat 0 Author: William Howard [WilliamH] 0 !LDRAW_ORG Subpart UPDATE 2025-09 0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2005-02-28 [WilliamH] Major rework of entire sub-part 0 !HISTORY 2014-01-04 [MMR1988] Corrected disc rotation 0 !HISTORY 2015-12-06 [MMR1988] Fixed scaled 2D prims 0 !HISTORY 2015-12-30 [PTadmin] Official Update 2015-02 0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW 0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 4 0 0 0 4 0 0 0 4 s\6057s06.dat 1 16 0 0 0 4 0 0 0 -4 0 0 0 4 s\6057s06.dat 1 16 0 0 0 4 0 0 0 4 0 0 0 4 s\6057s09.dat 1 16 0 0 0 4 0 0 0 -4 0 0 0 4 s\6057s09.dat 1 16 8 0 0 0 10 0 -4 0 0 0 0 4 4-4cyli.dat 1 16 0 -4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4disc.dat 1 16 0 0 0 0.266076 0 -3.99114 4 1 0 -3.99114 0 -0.266076 1-4edge.dat 1 16 0.266076 0 -3.99114 0 -0.266076 -3.99114 4 0 0 0 3.99114 -0.266076 1-4cyls.dat 1 16 0 4 0 0.266076 0 -3.99114 0 -4 0 -3.99114 0 -0.266076 1-4cyls.dat 1 16 0 0 0 0.266076 0 -3.99114 -4 1 0 -3.99114 0 -0.266076 1-4edge.dat 1 16 0 -4 0 0.266076 0 -3.99114 0 4 0 -3.99114 0 -0.266076 1-4cyls.dat 1 16 0.266076 0 -3.99114 0 -0.266076 -3.99114 -4 0 0 0 3.99114 -0.266076 1-4cyls.dat 1 16 0.532152 0 -7.98228 0 1.467848 3.99114 4 0 0 0 -22.0177 0.266076 2-4cyli.dat 1 16 0.266076 0 -3.99114 0 1.73392 -3.99114 -4 0 0 0 -26.0089 -0.266076 2-4cyli.dat 1 16 0 -4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4edge.dat 1 16 0 4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4edge.dat 1 16 0 4 0 -0.266076 0 -3.99114 0 -1 0 3.99114 0 -0.266076 4-4disc.dat
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4disc.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 0 0 0.266076 0 -3.99114 4 1 0 -3.99114 0 -0.266076 1-4edge.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0.266076 0 -3.99114 0 -0.266076 -3.99114 4 0 0 0 3.99114 -0.266076 1-4cyls.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 4 0 0.266076 0 -3.99114 0 -4 0 -3.99114 0 -0.266076 1-4cyls.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 0 0 0.266076 0 -3.99114 -4 1 0 -3.99114 0 -0.266076 1-4edge.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -4 0 0.266076 0 -3.99114 0 4 0 -3.99114 0 -0.266076 1-4cyls.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0.266076 0 -3.99114 0 -0.266076 -3.99114 -4 0 0 0 3.99114 -0.266076 1-4cyls.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0.532152 0 -7.98228 0 1.467848 3.99114 4 0 0 0 -22.0177 0.266076 2-4cyli.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0.266076 0 -3.99114 0 1.73392 -3.99114 -4 0 0 0 -26.0089 -0.266076 2-4cyli.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 -4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4edge.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 4 0 -0.266076 0 -3.99114 0 1 0 3.99114 0 -0.266076 4-4edge.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 0 4 0 -0.266076 0 -3.99114 0 -1 0 3.99114 0 -0.266076 4-4disc.dat
