Official File parts/s/6161s01.dat
File Header:

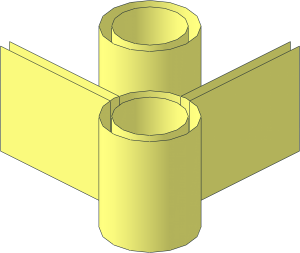

0 ~Brick 24 x 24 Corner with Cutout - Tube and Rib Segment 1
0 Name: s\6161s01.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Subpart UPDATE 2013-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-07-18 [WilliamH] closed gap between box3u2p and stud4, needed to inline box3u2p
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
Show contents
1 16 0 4 0 -1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 20 -1 0 0 0 -5 0 0 0 1 stud4.dat
0 // 1 16 0 4 20 0 0 -1 0 19 0 12 0 0 box3u2p.dat
2 24 -1 23 32.1089 -1 23 7.8011
2 24 1 23 7.8011 1 23 32.1089
2 24 -1 4 32.1089 -1 4 7.8011
2 24 1 4 7.8011 1 4 32.1089
2 24 -1 23 32.1089 0 23 32
2 24 0 23 32 1 23 32.1089
2 24 -1 23 7.8011 0 23 8
2 24 0 23 8 1 23 7.8011
2 24 -1 23 32.1089 -1 4 32.1089
2 24 1 23 32.1089 1 4 32.1089
2 24 -1 23 7.8011 -1 4 7.8011
2 24 1 23 7.8011 1 4 7.8011
4 16 1 23 32.1089 1 23 7.8011 -1 23 7.8011 -1 23 32.1089
4 16 -1 23 32.1089 -1 23 7.8011 -1 4 7.8011 -1 4 32.1089
4 16 1 23 7.8011 1 23 32.1089 1 4 32.1089 1 4 7.8011
0 // 1 16 -20 4 0 -12 0 0 0 19 0 0 0 -1 box3u2p.dat
2 24 -32.1089 23 -1 -7.8011 23 -1
2 24 -7.8011 23 1 -32.1089 23 1
2 24 -32.1089 4 -1 -7.8011 4 -1
2 24 -7.8011 4 1 -32.1089 4 1
2 24 -32.1089 23 -1 -32 23 0
2 24 -32 23 0 -32.1089 23 1
2 24 -7.8011 23 -1 -8 23 0
2 24 -8 23 0 -7.8011 23 1
2 24 -32.1089 23 -1 -32.1089 4 -1
2 24 -32.1089 23 1 -32.1089 4 1
2 24 -7.8011 23 -1 -7.8011 4 -1
2 24 -7.8011 23 1 -7.8011 4 1
4 16 -32.1089 23 1 -7.8011 23 1 -7.8011 23 -1 -32.1089 23 -1
4 16 -32.1089 23 -1 -7.8011 23 -1 -7.8011 4 -1 -32.1089 4 -1
4 16 -7.8011 23 1 -32.1089 23 1 -32.1089 4 1 -7.8011 4 1
0
Status:
Official
This part has the following warnings
- Number in description may need a leading space
