Official File parts/s/6177949fs01.dat
File Header:

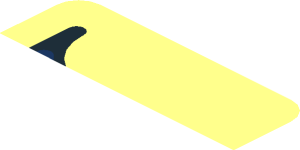

0 ~Sticker 0.8 x 1.9 with Black and Dark Blue Headlamp on Transparent Background Right - Upper Section 1
0 Name: s\6177949fs01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show contents
0 // Primitives
1 16 -6.5 -.25 3.8922 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 6.5 -.25 3.8922 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 -5.5 -.25 2.7461 .5 0 0 0 1 0 0 0 .5 2-4ndis.dat
0 // Transparent faces
4 16 -8 -.25 -.0121 -6 -.25 -.0121 -6 -.25 2.7461 -8 -.25 3.8922
4 16 8 -.25 3.8922 -4.0749 -.25 .4751 -3.4576 -.25 -.0121 8 -.25 -.0121
4 16 8 -.25 3.8922 -4.8925 -.25 1.9172 -4.5772 -.25 1.1431 -4.0749 -.25 .4751
4 16 8 -.25 3.8922 6.5 -.25 5.3922 -5 -.25 2.7461 -4.8925 -.25 1.9172
3 16 -8 -.25 3.8922 -6 -.25 2.7461 -6 -.25 3.2461
4 16 -6.5 -.25 5.3922 -8 -.25 3.8922 -6 -.25 3.2461 -5.5 -.25 3.2461
4 16 -6.5 -.25 5.3922 -5.5 -.25 3.2461 -5 -.25 3.2461 6.5 -.25 5.3922
3 16 6.5 -.25 5.3922 -5 -.25 3.2461 -5 -.25 2.7461
0 BFC NOCLIP
0 // Primitives
1 0 -5.5 -.25 2.7461 .5 0 0 0 1 0 0 0 .5 2-4chrd.dat
0 // Black faces
4 0 -4.8925 -.25 1.9172 -5 -.25 2.7461 -6 -.25 2.7461 -6 -.25 -.0121
3 0 -6 -.25 -.0121 -5.5 -.25 -.0121 -5.4619 -.25 .1988
3 0 -6 -.25 -.0121 -5.4619 -.25 .1988 -5.3536 -.25 .361
4 0 -6 -.25 -.0121 -5.3536 -.25 .361 -5.1913 -.25 .4694 -4.8925 -.25 1.9172
4 0 -4.8925 -.25 1.9172 -5.1913 -.25 .4694 -5 -.25 .5075 -4.5772 -.25 1.1431
4 0 -4.5772 -.25 1.1431 -5 -.25 .5075 -4.8087 -.25 .4694 -4.0749 -.25 .4751
3 0 -4.0749 -.25 .4751 -4.8087 -.25 .4694 -4.6176 -.25 .3297
4 0 -4.0749 -.25 .4751 -4.6176 -.25 .3297 -4.2775 -.25 -.0121 -3.4576 -.25 -.0121
0 // Dark blue faces
3 272 -5.5 -.25 -.0121 -4.2775 -.25 -.0121 -4.6176 -.25 .3297
3 272 -5.5 -.25 -.0121 -4.6176 -.25 .3297 -5.4619 -.25 .1988
4 272 -5.4619 -.25 .1988 -4.6176 -.25 .3297 -4.8087 -.25 .4694 -5.3536 -.25 .361
4 272 -5.3536 -.25 .361 -4.8087 -.25 .4694 -5 -.25 .5075 -5.1913 -.25 .4694
Status:
Official
This part has the following warnings
- Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
