Official File parts/s/6205s01.dat
File Header:

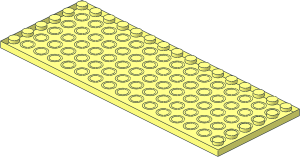

0 ~Tile 6 x 16 with Studs on 3 Edges without Top
0 Name: s\6205s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2019-12-27 [PTadmin] Official Update 2019-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 BFC INVERTNEXT
1 16 0 8 0 156 0 0 0 -4 0 0 0 56 box5.dat
4 16 160 8 60 156 8 56 -156 8 56 -160 8 60
4 16 160 8 -60 156 8 -56 156 8 56 160 8 60
4 16 -160 8 -60 -156 8 -56 156 8 -56 160 8 -60
4 16 -160 8 60 -156 8 56 -156 8 -56 -160 8 -60
1 16 0 8 0 160 0 0 0 -8 0 0 0 60 box4.dat
0 // Underside studs
1 16 -100 4 0 1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
1 16 100 4 0 1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
0 // Studs
1 16 -70 0 50 1 0 0 0 1 0 0 0 1 stug-1x7.dat
1 16 70 0 50 1 0 0 0 1 0 0 0 1 stug-1x7.dat
1 16 -150 0 0 1 0 0 0 1 0 0 0 1 stug-6x1.dat
1 16 150 0 0 1 0 0 0 1 0 0 0 1 stug-6x1.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
