Official File parts/s/62885s01.dat

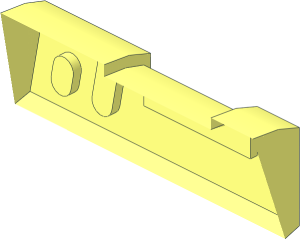

~Minifig Gun Short Blaster - Side
0 ~Minifig Gun Short Blaster - Side
0 Name: s\62885s01.dat
0 Author: Kevin Roach [KROACH]
0 !LDRAW_ORG Subpart UPDATE 2020-03
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-10-16 [KROACH] This is a mock-up. I don't have part as of yet.
0 !HISTORY 2020-02-24 [MagFors] Removed not needed vertices
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show file code:
1 16 -5.25 -2.119 0 0 -13.25 0 -2.8813 0 0 0 0 6.9722 1-8cylo.dat
1 16 -11.875 -2.07805 4.9301 -6.625 0 0 0 0 -2.07805 0 -1 0 rect.dat
1 16 -11.875 0 5.35205 6.625 0 0 0 1 0 0 0 0.42195 rect3.dat
1 16 0 -2.119 0 0 -5.25 0 -4.0747 0 0 0 0 8.1657 1-8cylo.dat
1 16 0 -2.119 0 0 -1 0 -4.0747 0 0 0 0 8.1657 1-8chrd.dat
1 16 -5.25 -2.119 0 0 1 0 -4.0747 0 0 0 0 8.1657 1-8chrd.dat
4 16 -5.25 -6.1935 0 -5.25 -5 5.774 -5.25 -4.1561 4.9301 -5.25 -5 0
4 16 -5.25 -4.1561 4.9301 -5.25 -5 5.774 -5.25 0 5.774 -5.25 0 4.9301
1 16 -18.5 -2.119 0 0 -12.9046 0 -4.0747 0 0 0 0 8.1657 1-8cyli.dat
1 16 -18.5 -2.119 0 0 1 0 -4.0747 0 0 0 0 8.1657 1-8edge.dat
1 16 -18.5 -2.119 0 0 -1 0 -4.0747 0 0 0 0 8.1657 1-8chrd.dat
4 16 -18.5 -5 0 -18.5 -4.1561 4.9301 -18.5 -5 5.774 -18.5 -6.1935 0
4 16 -18.5 0 4.9301 -18.5 0 5.774 -18.5 -5 5.774 -18.5 -4.1561 4.9301
1 16 -31.4046 -2.119 0 0 -0.76885 0 -4.0747 0 0 0 0 8.1657 1-8cyls.dat
1 16 -32.1719 -2.119 0 0.7673 1 0 -4.0747 0 0 0 0 8.1657 1-8edge.dat
1 16 -32.1719 -2.119 0 0.7673 1 0 -4.0747 0 0 0 0 8.1657 1-8chrd.dat
4 16 -33.5125 5 5.774 0 5 5.774 0 5.5917 4 -33.6239 5.5917 4
2 24 0 5 5.774 0 5.5917 4
2 24 -33.5125 5 5.774 -33.6239 5.5917 4
0 // ends
4 16 0 5.5917 4 0 5 5.774 0 -5 5.774 0 -6.1935 0
4 16 -31.4046 -6.1935 0 -31.6293 -5 5.774 -33.5125 5 5.774 -33.6239 5.5917 4

0 // lower sides
0 // channels
1 16 -28.6539 1.7773 4.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 -1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -28.6539 1.7773 4.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 1 0 2-4cylo.dat
1 16 -28.6539 1.7773 5.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -28.508 1 5.774 0.14638 0 1.22841 -0.77734 0 0.23132 0 -1 0 box3u8p.dat
1 16 -28.361 0.223 4.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 -1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -28.361 0.223 4.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 1 0 2-4cylo.dat
1 16 -28.361 0.223 5.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 -1 0 2-4ndis.dat

1 16 -23.5661 1.7773 4.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 -1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -23.5661 1.7773 4.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 1 0 2-4cylo.dat
1 16 -23.5661 1.7773 5.774 1.22841 0 -0.23132 0.23132 0 1.22841 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -23.137 -0.5 5.774 0.42883 0 1.22841 -2.27727 0 0.23132 0 -1 0 box3u8p.dat
1 16 -22.7084 -2.7773 4.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 -1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -22.7084 -2.7773 4.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 1 0 2-4cylo.dat
1 16 -22.7084 -2.7773 5.774 -1.22841 0 0.23132 -0.23132 0 -1.22841 0 -1 0 2-4ndis.dat

0 // sides
4 16 0 5 5.774 -5.25 0 5.774 -5.25 -5 5.774 0 -5 5.774
2 24 0 -5 5.774 -5.25 -5 5.774
2 24 -18.5 -5 5.774 -31.6293 -5 5.774
2 24 0 5 5.774 -33.5125 5 5.774
2 24 0 -5 5.774 0 5 5.774
2 24 -5.25 -5 5.774 -5.25 0 5.774
2 24 -18.5 -5 5.774 -18.5 0 5.774
2 24 -31.6293 -5 5.774 -33.5125 5 5.774
4 16 -22.569 3.237 5.774 0 5 5.774 -33.5125 5 5.774 -27.6568 3.237 5.774
3 16 -27.6568 3.237 5.774 -25.0258 2.7744 5.774 -22.569 3.237 5.774
4 16 -22.569 3.237 5.774 -22.3374 2.0086 5.774 -5.25 0 5.774 0 5 5.774
3 16 -33.5125 5 5.774 -30.1137 2.7744 5.774 -27.6568 3.237 5.774
4 16 -31.6293 -5 5.774 -29.3583 -1.237 5.774 -30.1137 2.7744 5.774 -33.5125 5 5.774
3 16 -18.5 0 5.774 -5.25 0 5.774 -22.3374 2.0086 5.774
4 16 -22.3374 2.0086 5.774 -21.2487 -3.7744 5.774 -18.5 -5 5.774 -18.5 0 5.774
4 16 -23.9366 -3.0086 5.774 -25.0258 2.7744 5.774 -27.6568 3.237 5.774 -26.9015 -0.7744 5.774
3 16 -18.5 -5 5.774 -21.2487 -3.7744 5.774 -23.7055 -4.237 5.774
4 16 -29.3583 -1.237 5.774 -23.7055 -4.237 5.774 -23.9366 -3.0086 5.774 -26.9015 -0.7744 5.774
3 16 -23.7055 -4.237 5.774 -31.6293 -5 5.774 -18.5 -5 5.774
3 16 -31.6293 -5 5.774 -23.7055 -4.237 5.774 -29.3583 -1.237 5.774

Status

Official Official

Part Dependencies

Unofficial parents

Part Events
