Official File parts/s/71710s01.dat

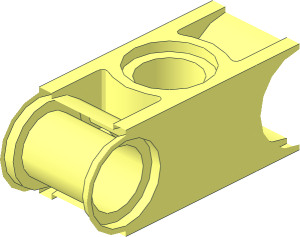

~Technic Beam with Alternating Holes - 2L Section
File Header:
0 ~Technic Beam with Alternating Holes - 2L Section 0 Name: s\71710s01.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Subpart UPDATE 2022-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show contents
1 16 0 0 -20 0 -1 0 -1 0 0 0 0 -1 connhole.dat 1 16 0 -10 10 -1 0 0 0 1 0 0 0 -1 npeghol8.dat 1 16 0 10 10 -1 0 0 0 -1 0 0 0 -1 npeghol8.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 connhole.dat 1 16 0 -10 -10 1 0 0 0 1 0 0 0 1 npeghol8.dat 1 16 0 10 -10 1 0 0 0 -1 0 0 0 1 npeghol8.dat 1 16 10 0 -20 0 -1 0 9 0 0 0 0 9 2-4ndis.dat 1 16 10 0 20 0 -1 0 9 0 0 0 0 -9 2-4ndis.dat 1 16 0 -10 0 -1 0 0 0 1 0 0 0 -1 4-4ring9.dat 1 16 0 -10 0 -10 0 0 0 1 0 0 0 -10 1-8ndis.dat 1 16 0 -10 0 -10 0 0 0 1 0 0 0 10 1-8ndis.dat 1 16 0 -10 0 10 0 0 0 1 0 0 0 -10 1-8ndis.dat 1 16 0 -10 0 10 0 0 0 1 0 0 0 10 1-8ndis.dat 1 16 0 10 0 -1 0 0 0 -1 0 0 0 -1 4-4ring9.dat 1 16 0 10 0 -10 0 0 0 -1 0 0 0 -10 1-8ndis.dat 1 16 0 10 0 -10 0 0 0 -1 0 0 0 10 1-8ndis.dat 1 16 0 10 0 10 0 0 0 -1 0 0 0 -10 1-8ndis.dat 1 16 0 10 0 10 0 0 0 -1 0 0 0 10 1-8ndis.dat 1 16 -10 0 -20 0 1 0 -9 0 0 0 0 9 2-4ndis.dat 1 16 -10 0 20 0 1 0 -9 0 0 0 0 -9 2-4ndis.dat 4 16 10 -9 11 10 -9 -11 10 0 -11 10 0 11 4 16 10 9 11 10 0 11 10 0 -11 10 9 -11 4 16 -10 0 -11 -10 -9 -11 -10 -9 11 -10 0 11 4 16 -10 0 -11 -10 0 11 -10 9 11 -10 9 -11 4 16 10 -10 10 10 -10 -10 10 -9 -11 10 -9 11 4 16 10 9 11 10 9 -11 10 10 -10 10 10 10 4 16 -10 9 -11 -10 9 11 -10 10 10 -10 10 -10 4 16 -10 -9 -11 -10 -10 -10 -10 -10 10 -10 -9 11 2 24 -10 10 10 -10 10 -10 2 24 -10 -10 -10 -10 -10 10 2 24 10 10 10 10 10 -10 2 24 10 -10 -10 10 -10 10 4 16 -10 9 11 -10 9 20 -10 10 20 -10 10 10 4 16 -10 10 10 -10 10 20 -7.071 10 20 -7.07107 10 7.07107 2 24 -10 10 10 -10 10 20 4 16 10 10 20 10 9 20 10 9 11 10 10 10 4 16 7.071 10 20 10 10 20 10 10 10 7.07107 10 7.07107 2 24 10 10 10 10 10 20 4 16 -10 -10 20 -10 -9 20 -10 -9 11 -10 -10 10 4 16 -7.071 -10 20 -10 -10 20 -10 -10 10 -7.07107 -10 7.07107 2 24 -10 -10 10 -10 -10 20 4 16 10 -9 11 10 -9 20 10 -10 20 10 -10 10 4 16 10 -10 10 10 -10 20 7.071 -10 20 7.07107 -10 7.07107 2 24 10 -10 10 10 -10 20 4 16 -10 10 -20 -10 9 -20 -10 9 -11 -10 10 -10 4 16 -7.071 10 -20 -10 10 -20 -10 10 -10 -7.07107 10 -7.07107 2 24 -10 10 -10 -10 10 -20 4 16 10 9 -11 10 9 -20 10 10 -20 10 10 -10 4 16 10 10 -10 10 10 -20 7.071 10 -20 7.07107 10 -7.07107 2 24 10 10 -10 10 10 -20 4 16 -10 -9 -11 -10 -9 -20 -10 -10 -20 -10 -10 -10 4 16 -10 -10 -10 -10 -10 -20 -7.071 -10 -20 -7.07107 -10 -7.07107 2 24 -10 -10 -10 -10 -10 -20 4 16 10 -10 -20 10 -9 -20 10 -9 -11 10 -10 -10 4 16 7.071 -10 -20 10 -10 -20 10 -10 -10 7.07107 -10 -7.07107 2 24 10 -10 -10 10 -10 -20
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 48: 4 16 -10 10 10 -10 10 20 -7.071 10 20 -7.07107 10 7.07107
    Line 51: 4 16 7.071 10 20 10 10 20 10 10 10 7.07107 10 7.07107
    Line 54: 4 16 -7.071 -10 20 -10 -10 20 -10 -10 10 -7.07107 -10 7.07107
    Line 57: 4 16 10 -10 10 10 -10 20 7.071 -10 20 7.07107 -10 7.07107
    Line 61: 4 16 -7.071 10 -20 -10 10 -20 -10 10 -10 -7.07107 10 -7.07107
    Line 64: 4 16 10 10 -10 10 10 -20 7.071 10 -20 7.07107 10 -7.07107
    Line 67: 4 16 -10 -10 -10 -10 -10 -20 -7.071 -10 -20 -7.07107 -10 -7.07107
    Line 70: 4 16 7.071 -10 -20 10 -10 -20 10 -10 -10 7.07107 -10 -7.07107
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
