Official File parts/s/87414s01.dat
File Header:

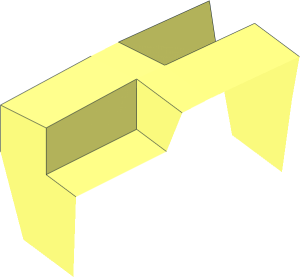

0 ~Tyre 6/ 50 x 8 Offset Tread with Centre Band Element
0 Name: s\87414s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2014-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2007-08-25 {LEGO Universe Team} Original part shape
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
Show contents
4 16 1.165 -14.829 8 1.165 -14.829 1.0667 1.779 -17.912 1.0667 1.734 -17.688 8
1 16 2.893 -14.5445 -4.5333 0 0 -1.143 0 1 -0.2275 3.46667 0 0 rect3.dat
4 16 4.036 -14.317 -1.0667 5.239 -17.221 -1.0667 1.75 -17.915 -1.0667 1.75 -14.772 -1.0667
4 16 1.779 -17.912 1.0667 1.75 -17.915 -1.0667 5.239 -17.221 -1.0667 5.211 -17.229 1.0667
4 16 1.734 -17.688 8 1.779 -17.912 1.0667 5.211 -17.229 1.0667 5.167 -17.005 8
1 16 0 -14.829 4.5333 0 0 -1.165 0 1 0 3.46667 0 0 rect.dat
4 16 -1.734 -17.688 8 -1.779 -17.912 1.0667 -1.165 -14.829 1.0667 -1.165 -14.829 8
1 16 0 -16.2295 -8 1.75 0 0 0 0 -1.4575 0 1 0 rect3.dat
4 16 -1.75 -17.687 -8 -1.75 -17.915 -1.0667 -1.75 -14.772 -1.0667 -1.75 -14.772 -8
4 16 1.75 -17.915 -1.0667 1.779 -17.912 1.0667 -1.779 -17.912 1.0667 -1.75 -17.915 -1.0667
4 16 1.75 -17.687 -8 1.75 -17.915 -1.0667 -1.75 -17.915 -1.0667 -1.75 -17.687 -8
4 16 1.779 -17.912 1.0667 1.165 -14.829 1.0667 -1.165 -14.829 1.0667 -1.779 -17.912 1.0667
4 16 1.75 -14.772 -8 1.75 -14.772 -1.0667 1.75 -17.915 -1.0667 1.75 -17.687 -8
1 16 3.166 -15.917 8 -1.7165 0 0.2845 -0.3415 0 -1.4295 0 -1 0 rect2a.dat
2 24 1.165 -14.829 1.0667 1.779 -17.912 1.0667
2 24 1.779 -17.912 1.0667 1.734 -17.688 8
2 24 5.239 -17.221 -1.0667 1.75 -17.915 -1.0667
2 24 1.75 -17.915 -1.0667 1.75 -14.772 -1.0667
2 24 -1.779 -17.912 1.0667 -1.165 -14.829 1.0667
2 24 -1.734 -17.688 8 -1.779 -17.912 1.0667
2 24 -1.165 -14.829 8 -1.734 -17.688 8
2 24 -1.75 -14.772 -8 -1.75 -14.772 -1.0667
2 24 -1.75 -17.915 -1.0667 -1.75 -14.772 -1.0667
2 24 -1.75 -17.687 -8 -1.75 -17.915 -1.0667
2 24 1.779 -17.912 1.0667 -1.779 -17.912 1.0667
2 24 1.75 -17.687 -8 1.75 -17.915 -1.0667
5 24 1.779 -17.912 1.0667 1.75 -17.915 -1.0667 5.239 -17.221 -1.0667 -1.779 -17.912 1.0667
5 24 5.211 -17.229 1.0667 1.779 -17.912 1.0667 5.239 -17.221 -1.0667 1.734 -17.688 8
5 24 -1.779 -17.912 1.0667 -1.75 -17.915 -1.0667 1.75 -17.915 -1.0667 -5.211 -17.2293 1.0667
5 24 -1.75 -17.915 -1.0667 1.75 -17.915 -1.0667 -1.779 -17.912 1.0667 1.75 -17.687 -8
4 16 0 -10 8 -1.165 -14.829 8 1.165 -14.829 8 3.827 -9.239 8
3 16 3.827 -9.239 8 1.165 -14.829 8 4.598 -14.146 8
4 16 3.827 -9.239 -8 1.75 -14.772 -8 -1.75 -14.772 -8 0 -10 -8
3 16 4.036 -14.317 -8 1.75 -14.772 -8 3.827 -9.239 -8
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 14: 1 16 2.893 -14.5445 -4.5333 0 0 -1.143 0 1 -0.2275 3.46667 0 0 rect3.datLine 18: 1 16 0 -14.829 4.5333 0 0 -1.165 0 1 0 3.46667 0 0 rect.dat
