Official File parts/s/87697s01.dat

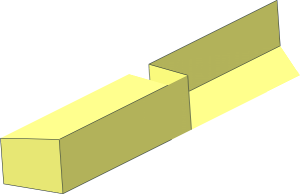

~Tyre 12/ 40 x 11 Wide with Centre Band - 1/36
File Header:
0 ~Tyre 12/ 40 x 11 Wide with Centre Band - 1/36 0 Name: s\87697s01.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Subpart UPDATE 2024-11 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02 0 !HISTORY 2024-12-21 [ejboer] Changed for side wall subpart 0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11
Show contents
2 24 21 0 -14 20.68 -3.65 -14 2 24 21 0 1 25 0 1 2 24 20.68 -3.65 1 24.62019 -4.341204 1 2 24 21 0 -14 25 0 -12 2 24 20.68 -3.65 -14 24.62019 -4.341204 -12 4 16 21 0 1 25 0 1 25 0 12 21 0 14 4 16 25 0 -12 24.62019 -4.341204 -12 20.68 -3.65 -14 21 0 -14 1 16 24.8101 -2.170602 -6.5 -0.189903 -1 0 -2.170602 0 0 0 0 -5.5 rect3.dat 1 16 24.8101 -2.170602 0 0 -1 -0.189903 0 0 -2.170602 1 0 0 rect1.dat 1 16 20.84 -1.825 7.5 -0.16 -1 0 -1.825 0 0 0 0 -6.5 rect.dat 4 16 21 0 1 20.68 -3.65 1 24.62019 -4.341204 1 25 0 1 4 16 20.68 -3.65 -14 24.62019 -4.341204 -12 24.62019 -4.341204 -1 20.68 -3.65 -1 5 24 25 0 1 25 0 -1 24.62019 -4.341204 -1 24.62019 4.341204 -1 5 24 24.62019 -4.341204 1 24.62019 -4.341204 -1 25 0 -1 23.49232 -8.550504 -1 5 24 25 0 -1 24.62019 -4.341204 -1 25 0 1 25 0 -12
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 24.8101 -2.170602 -6.5 -0.189903 -1 0 -2.170602 0 0 0 0 -5.5 rect3.dat
  • Decimal precision exceeds 5 significant places
    Line text: 1 16 24.8101 -2.170602 0 0 -1 -0.189903 0 0 -2.170602 1 0 0 rect1.dat
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 20.68 -3.65 1 24.62019 -4.341204 1
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 20.68 -3.65 -14 24.62019 -4.341204 -12
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 25 0 -12 24.62019 -4.341204 -12 20.68 -3.65 -14 21 0 -14
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 21 0 1 20.68 -3.65 1 24.62019 -4.341204 1 25 0 1
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 4 16 20.68 -3.65 -14 24.62019 -4.341204 -12 24.62019 -4.341204 -1 20.68 -3.65 -1
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 5 24 25 0 1 25 0 -1 24.62019 -4.341204 -1 24.62019 4.341204 -1
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 5 24 24.62019 -4.341204 1 24.62019 -4.341204 -1 25 0 -1 23.49232 -8.550504 -1
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 5 24 25 0 -1 24.62019 -4.341204 -1 25 0 1 25 0 -12
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
