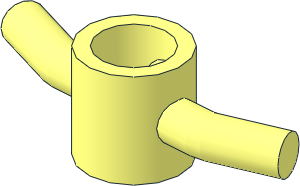

Handle for Pole 32 with Shaft and Helical Groove

File Header:

0 Handle for Pole 32 with Shaft and Helical Groove
0 Name: 23422.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2020-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Angle of handles 20 degrees.
0 !HELP Rotation center of the left handle at (-15, 0, 7.5)
0 !HELP Rotation center of the right handle at (15, 0, 7.5)

0 BFC CERTIFY CCW

0 !CATEGORY Figure Accessory

0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2016-03-18 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\23422s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\23422s01.dat
3 16 0 4.5 7 0.7 1.55 4.65 -0.7 1.55 4.65
4 16 -.7 -1.55 4.65 -.7 1.55 4.65 .7 1.55 4.65 .7 -1.55 4.65
3 16 0 -4.5 7 -0.7 -1.55 4.65 0.7 -1.55 4.65
5 24 -.7 -1.55 4.65 .7 -1.55 4.65 -.7 1.55 4.65 0 -4.5 7
5 24 -.7 1.55 4.65 .7 1.55 4.65 0 4.5 7 -.7 -1.55 4.65
