Official File p/axlehole.dat
File Header:

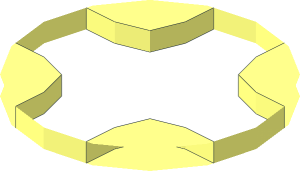

0 Technic Axle Hole Closed
0 Name: axlehole.dat
0 Author: James Jessiman
0 !LDRAW_ORG Primitive UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2000-04-23 [sbliss] Added conditional edges along outermost diameters
0 !HISTORY 2000-05-07 [PTadmin] Official Update 2000-01
0 !HISTORY 2002-05-08 [OrionP] Made BFC compliant
0 !HISTORY 2002-08-18 [PTadmin] Official Update 2002-04
0 !HISTORY 2002-11-08 [OrionP] Adjusted fit and precision
0 !HISTORY 2003-03-12 [PTadmin] Official Update 2003-01
0 !HISTORY 2005-05-15 [guyvivan] Use 1-8chrd.dat primitive and made BFC'ed CCW
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-06-24 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2021-03-25 [Sirio] Added adapter rings and rounded to four decimals
0 !HISTORY 2021-12-20 [MagFors] Reshaped the hole
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl5hol9.dat
1 16 0 1 0 1 0 0 0 1 0 0 0 1 axl5hol9.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl5ho10.dat
1 16 0 1 0 1 0 0 0 -1 0 0 0 -1 axl5ho10.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl5hol8.dat
0 // Adapter rings
1 16 0 0 0 6 0 0 0 1 0 0 0 6 1-16chrd.dat
1 16 0 0 0 0 0 6 0 1 0 6 0 0 1-16chrd.dat
1 16 0 0 0 0 0 -6 0 1 0 6 0 0 1-16chrd.dat
1 16 0 0 0 -6 0 0 0 1 0 0 0 6 1-16chrd.dat
1 16 0 0 0 -6 0 0 0 1 0 0 0 -6 1-16chrd.dat
1 16 0 0 0 0 0 -6 0 1 0 -6 0 0 1-16chrd.dat
1 16 0 0 0 0 0 6 0 1 0 -6 0 0 1-16chrd.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 -6 1-16chrd.dat
1 16 0 1 0 6 0 0 0 -1 0 0 0 6 1-16chrd.dat
1 16 0 1 0 0 0 6 0 -1 0 6 0 0 1-16chrd.dat
1 16 0 1 0 0 0 -6 0 -1 0 6 0 0 1-16chrd.dat
1 16 0 1 0 -6 0 0 0 -1 0 0 0 6 1-16chrd.dat
1 16 0 1 0 -6 0 0 0 -1 0 0 0 -6 1-16chrd.dat
1 16 0 1 0 0 0 -6 0 -1 0 -6 0 0 1-16chrd.dat
1 16 0 1 0 0 0 6 0 -1 0 -6 0 0 1-16chrd.dat
1 16 0 1 0 6 0 0 0 -1 0 0 0 -6 1-16chrd.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
