Official File parts/2408p01.dat
Part Attributes:
Base Part: 2408.dat
File Header:

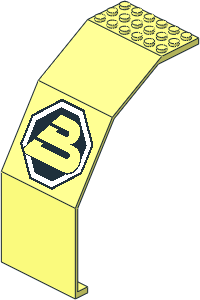

0 Panel 10 x 6 x 11 with Blacktron II Logo Pattern
0 Name: 2408p01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Aerial Intruder, Alpha Centauri Outpost, Blacktron Future Generation
0 !KEYWORDS Rebrickable 2408pr0001, Set 6981, Set 6988
0 !HISTORY 1999-12-31 [PTadmin] Official Update 1999-06
0 !HISTORY 2001-11-23 [BrickCaster] Fixed quad, fixed header
0 !HISTORY 2001-12-05 [BrickCaster] Fixed position of pattern and surface
0 !HISTORY 2002-02-03 [BrickCaster] Used newer pattern by Chris Dee
0 !HISTORY 2002-02-18 [PTadmin] Official Update 2002-01
0 !HISTORY 2003-01-09 [hmick] Reworked with s\2408s01 subfile.
0 !HISTORY 2003-08-01 [PTadmin] Official Update 2003-02
0 !HISTORY 2007-05-12 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [nielsk] BFC'd (2006-01-04)
0 !HISTORY 2008-07-08 [WilliamH] Fixed non coplanar issue
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2025-01-19 [OrionP] Fix comment errors, added keywords, flipped BFC
0 !HISTORY 2025-01-21 [KnightOfTarenta] Complete Rework, original by Jonathan Wilson [jonwil]
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
0 // Base Part
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2408s01.dat
4 16 60 264 -170 60 144 -170 -60 144 -170 -60 264 -170
4 16 60 48 -110 60 0 -30 -60 0 -30 -60 48 -110
0 // Pattern
0 // Colour 16 Main Colour
1 16 7.315 82.344 -131.465 0 0 3.75 3.18018 1 0 -1.9872 0 0 2-4ndis.dat
1 16 20.325 101.424 -143.39 0 0 3.75 3.18018 1 0 -1.9872 0 0 2-4ndis.dat
1 16 12.651 79.588 -129.742 13.5 0 0 0 1 -11.44865 0 0 7.15391 1-4chrd.dat
1 16 12.651 79.588 -129.742 13.5 0 0 0 1 11.44865 0 0 -7.15391 3-16chrd.dat
1 16 24.665 103.756 -144.847 16 0 0 0 1 13.56877 0 0 -8.47871 1-4chrd.dat
1 16 24.665 103.756 -144.847 16 0 0 0 1 -13.56877 0 0 8.47871 1-4chrd.dat
4 16 -21.675 104.604 -145.377 -19.51 101.424 -143.39 -33.51 101.424 -143.39 -42.202 114.19 -151.369
3 16 12.651 68.13935 -122.58809 7.315 79.16382 -129.4778 11.065 79.16382 -129.4778
4 16 26.151 79.588 -129.742 12.651 68.13935 -122.58809 11.065 79.16382 -129.4778 11.065 82.344 -131.465
4 16 24.665 117.32477 -153.32571 24.075 104.60418 -145.3772 20.325 104.60418 -145.3772 -38.507 117.324 -153.327
4 16 -21.675 104.604 -145.377 -42.202 114.19 -151.369 -38.507 117.324 -153.327 20.325 104.60418 -145.3772
4 16 12.651 68.13935 -122.58809 -10.849 68.14 -122.587 -18.355 79.164 -129.477 7.315 79.16382 -129.4778
4 16 -31.345 98.244 -141.402 -8.685 85.524 -133.452 -6.52 82.344 -131.465 -20.52 82.344 -131.465
4 16 -8.685 85.524 -133.452 -31.345 98.244 -141.402 20.325 98.24382 -141.4028 7.315 85.52418 -133.4522
4 16 20.325 98.24382 -141.4028 24.075 98.24382 -141.4028 24.665 90.18723 -136.36829 17.81745 90.165408 -136.351497
4 16 40.665 103.756 -144.847 24.665 90.18723 -136.36829 24.075 98.24382 -141.4028 24.075 101.424 -143.39
4 16 40.665 103.756 -144.847 24.075 101.424 -143.39 24.075 104.60418 -145.3772 24.665 117.32477 -153.32571
4 16 26.151 79.588 -129.742 11.065 82.344 -131.465 11.065 85.52418 -133.4522 17.81745 90.165408 -136.351497
4 16 17.81745 90.165408 -136.351497 11.065 85.52418 -133.4522 7.315 85.52418 -133.4522 20.325 98.24382 -141.4028
3 16 -60 48 -110 -50 80.648 -130.405 -18 53.512 -113.445
3 16 -50 111.176 -149.485 -60 144 -170 -18 138.312 -166.445
3 16 50 111.176 -149.485 18 138.312 -166.445 60 144 -170
3 16 60 48 -110 18 53.512 -113.445 50 80.648 -130.405
4 16 -60 48 -110 -18 53.512 -113.445 18 53.512 -113.445 60 48 -110
4 16 60 48 -110 50 80.648 -130.405 50 111.176 -149.485 60 144 -170
4 16 18 138.312 -166.445 -18 138.312 -166.445 -60 144 -170 60 144 -170
4 16 -60 144 -170 -50 111.176 -149.485 -50 80.648 -130.405 -60 48 -110
0 BFC NOCLIP
0 // Colour 0 Black
1 0 7.315 82.344 -131.465 0 0 3.75 3.18018 1 0 -1.9872 0 0 2-4chrd.dat
1 0 20.325 101.424 -143.39 0 0 3.75 3.18018 1 0 -1.9872 0 0 2-4chrd.dat
1 0 12.651 79.588 -129.742 13.5 0 0 0 1 -11.44865 0 0 7.15391 1-4tang.dat
1 0 12.651 79.588 -129.742 13.5 0 0 0 1 11.44865 0 0 -7.15391 3-16tang.dat
1 0 24.665 103.756 -144.847 0 0 16 13.56877 1 0 -8.47871 0 0 1-16tang.dat
1 0 24.665 103.756 -144.847 0 0 16 -13.56877 1 0 8.47871 0 0 3-16ndis.dat
1 0 24.665 103.756 -144.847 1.7778 0 0 0 1 1.50766 0 0 -.94209 3-16ring9.dat
1 0 24.665 103.756 -144.847 1.7778 0 0 0 1 -1.50766 0 0 .94209 1-16ring9.dat
3 0 -50 111.176 -149.485 -38.507 117.324 -153.327 -42.202 114.19 -151.369
3 0 -50 111.176 -149.485 -42.202 114.19 -151.369 -43.3 113.259 -150.787
3 0 -47 110.122 -148.826 -50 111.176 -149.485 -43.3 113.259 -150.787
3 0 -50 111.176 -149.485 -37.007 118.596 -154.122 -38.507 117.324 -153.327
4 0 -40.75 83.897 -132.435 -40.75 107.927 -147.454 -40.065 108.508 -147.818 -33.51 101.424 -143.39
4 0 -20.52 82.344 -131.465 -18.355 79.164 -129.477 -14.169 61.356 -118.347 -40.75 83.897 -132.435
3 0 -14.169 61.356 -118.347 -18.355 79.164 -129.477 -10.849 68.14 -122.587
4 0 -14.169 130.468 -161.542 14.169 130.468 -161.542 28.159 118.596 -154.122 24.665 117.32477 -153.32571
4 0 12.651 68.13935 -122.58809 15.33615 68.13935 -122.58809 14.169 61.356 -118.347 -14.169 61.356 -118.347
3 0 26.151 77.310864 -128.319087 26.151 79.588 -129.742 41.09 84.066 -132.541
3 0 25.12365 75.206602 -127.004199 26.151 77.310864 -128.319087 41.09 84.066 -132.541
3 0 20.29875 89.29416547 -135.807084898 17.81745 90.165408 -136.351497 24.665 90.18723 -136.36829
3 0 22.19685 87.68334 -134.80053 20.29875 89.29416547 -135.807084898 24.665 90.18723 -136.36829
4 0 24.0963 86.073660225 -133.794690015 22.19685 87.68334 -134.80053 24.665 90.18723 -136.36829 41.09 84.066 -132.541
3 0 25.12365 83.969398 -132.479801 24.0963 86.073660225 -133.794690015 41.09 84.066 -132.541
3 0 26.151 79.588 -129.742 26.151 81.865136 -131.164913 41.09 84.066 -132.541
3 0 26.151 81.865136 -131.164913 25.12365 83.969398355 -132.479801357 41.09 84.066 -132.541
3 0 24.0963 73.102339775 -125.689309985 25.12365 75.206602 -127.004199 41.09 84.066 -132.541
3 0 14.169 61.356 -118.347 15.33615 68.13935 -122.58809 17.81745 69.010592265 -123.132502551
3 0 14.169 61.356 -118.347 17.81745 69.010592265 -123.132502551 20.29875 69.881835 -123.676915
3 0 14.169 61.356 -118.347 20.29875 69.881835 -123.676915 22.19685 71.492659585 -124.683470239
3 0 40.665 90.18723 -136.36829 39.4474 98.563232 -141.602198 41.089909 97.98625 -141.24166
4 0 -16.757 135.768 -164.855 -37.007 118.596 -154.122 -50 111.176 -149.485 -18 138.312 -166.445
4 0 -33.51 101.424 -143.39 -40.065 108.508 -147.818 -43.3 113.259 -150.787 -42.202 114.19 -151.369
4 0 -50 80.648 -130.405 -50 111.176 -149.485 -47 110.122 -148.826 -47 81.702 -131.064
4 0 18 138.312 -166.445 16.757 135.768 -164.855 -16.757 135.768 -164.855 -18 138.312 -166.445
3 0 -40.75 83.897 -132.435 -33.51 101.424 -143.39 -31.345 98.244 -141.402
3 0 -20.52 82.344 -131.465 -40.75 83.897 -132.435 -31.345 98.244 -141.402
4 0 20.325 104.60418 -145.3772 20.325 98.24382 -141.4028 -19.51 101.424 -143.39 -21.675 104.604 -145.377
4 0 7.315 85.52418 -133.4522 7.315 79.16382 -129.4778 -6.52 82.344 -131.465 -8.685 85.524 -133.452
4 0 -16.757 56.056 -115.035 -18 53.512 -113.445 -50 80.648 -130.405 -47 81.702 -131.064
3 0 -14.169 61.356 -118.347 -10.849 68.14 -122.587 12.651 68.13935 -122.58809
4 0 16.757 56.056 -115.035 18 53.512 -113.445 -18 53.512 -113.445 -16.757 56.056 -115.035
4 0 -37.007 118.596 -154.122 -28.169 118.596 -154.122 24.665 117.32477 -153.32571 -38.507 117.324 -153.327
3 0 24.665 117.32477 -153.32571 -28.169 118.596 -154.122 -14.169 130.468 -161.542
4 0 -33.51 101.424 -143.39 -19.51 101.424 -143.39 20.325 98.24382 -141.4028 -31.345 98.244 -141.402
4 0 -20.52 82.344 -131.465 -6.52 82.344 -131.465 7.315 79.16382 -129.4778 -18.355 79.164 -129.477
4 0 50 80.648 -130.405 18 53.512 -113.445 16.757 56.056 -115.035 47 81.702 -131.064
4 0 47 110.122 -148.826 50 111.176 -149.485 50 80.648 -130.405 47 81.702 -131.064
4 0 18 138.312 -166.445 50 111.176 -149.485 47 110.122 -148.826 16.757 135.768 -164.855
3 0 41.09 84.066 -132.541 24.665 90.18723 -136.36829 40.665 90.18723 -136.36829
4 0 24.0963 73.10234 -125.68931 41.09 84.066 -132.541 14.169 61.356 -118.347 22.19685 71.492659585 -124.683470239
3 0 27.8474 117.32477 -153.32571 24.665 117.32477 -153.32571 28.159 118.596 -154.122
4 0 30.7882 116.292186603 -152.680480169 27.8474 117.32477 -153.32571 28.159 118.596 -154.122 31.468564 117.685114 -153.550877
3 0 41.09 84.066 -132.541 40.665 90.18723 -136.36829 41.089909 97.98625 -141.24166
0 // Colour 15 White
1 15 24.665 103.756 -144.847 17.7778 0 0 0 1 15.07643 0 0 -9.4208 3-16tang.dat
1 15 24.665 103.756 -144.847 17.7778 0 0 0 1 -15.07643 0 0 9.4208 1-16tang.dat
3 15 42.443 103.756 -144.847 42.4428 106.754702 -146.720797 47 110.122 -148.826
3 15 42.4428 106.754702 -146.720797 41.089909 109.52575 -148.45234 47 110.122 -148.826
3 15 41.089909 109.52575 -148.45234 39.737019 112.296798 -150.183883 47 110.122 -148.826
3 15 47 110.122 -148.826 39.737019 112.296798 -150.183883 37.23568238 114.416543653 -151.50844768
3 15 34.736124 116.537797 -152.833954 31.46856406 117.685113677 -153.55087712 16.757 135.768 -164.855
4 15 -40.065 108.508 -147.818 -40.75 107.927 -147.454 -47 110.122 -148.826 -43.3 113.259 -150.787
4 15 -37.007 118.596 -154.122 -16.757 135.768 -164.855 -14.169 130.468 -161.542 -28.169 118.596 -154.122
4 15 -47 81.702 -131.064 -47 110.122 -148.826 -40.75 107.927 -147.454 -40.75 83.897 -132.435
4 15 -16.757 135.768 -164.855 16.757 135.768 -164.855 14.169 130.468 -161.542 -14.169 130.468 -161.542
4 15 -16.757 56.056 -115.035 -47 81.702 -131.064 -40.75 83.897 -132.435 -14.169 61.356 -118.347
4 15 -16.757 56.056 -115.035 -14.169 61.356 -118.347 14.169 61.356 -118.347 16.757 56.056 -115.035
4 15 47 81.702 -131.064 16.757 56.056 -115.035 14.169 61.356 -118.347 41.09 84.066 -132.541
4 15 41.089909 97.98625 -141.24166 42.4428 100.757298 -142.973203 47 81.702 -131.064 41.09 84.066 -132.541
4 15 47 110.122 -148.826 47 81.702 -131.064 42.4428 100.757298 -142.973203 42.443 103.756 -144.847
4 15 47 110.122 -148.826 37.235682 114.416544 -151.508448 34.7361237 116.537797354 -152.83395424 16.757 135.768 -164.855
4 15 16.757 135.768 -164.855 31.468564 117.685114 -153.550877 28.159 118.596 -154.122 14.169 130.468 -161.542
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-01-19 23:08:10
2025-01-19 23:11:39
This is a part fix. Neither of those 2 reasons are cause for a hold.
2025-01-20 11:15:17
found more things:
-transparent part but pattern isnt BFC NOCLIP
(visible in the TrNeonGreen part https://library.ldraw.org/parts/12755)
-looks like the green B is actually transparent (uncolored)
pic of a BL shop: https://www.bricklink.com/myImg/944874.jpg
peeron pics: http://www.peeron.com/inv/parts/2408p01?img=8829
http://www.peeron.com/inv/parts/2408p01?img=8830
-peeron instruction pic also shows the inside (partial):
http://www.peeron.com/scans/6981-1/9
does anyone own this part to check the colors of the inside (full black or white or both)
-also looks like the black cutout from the B in the white border is parallel...
(should this use ring prims?)
-> thats much what qualifies for a rework, should the number stay or do we need a new file?
-transparent part but pattern isnt BFC NOCLIP
(visible in the TrNeonGreen part https://library.ldraw.org/parts/12755)
-looks like the green B is actually transparent (uncolored)
pic of a BL shop: https://www.bricklink.com/myImg/944874.jpg
peeron pics: http://www.peeron.com/inv/parts/2408p01?img=8829
http://www.peeron.com/inv/parts/2408p01?img=8830
-peeron instruction pic also shows the inside (partial):
http://www.peeron.com/scans/6981-1/9
does anyone own this part to check the colors of the inside (full black or white or both)
-also looks like the black cutout from the B in the white border is parallel...
(should this use ring prims?)
-> thats much what qualifies for a rework, should the number stay or do we need a new file?
2025-01-20 16:58:51
I have the part.
Yes the green is actually transparent. I also think the logo could be improved.
Shall I do a rework?
Yes the green is actually transparent. I also think the logo could be improved.
Shall I do a rework?
2025-01-20 17:03:48
yes, please...
(complete rework to get rid of the CC 2.0)
(complete rework to get rid of the CC 2.0)
Complete rework:
*Colors fixed
*Logo redesigned, fixing geometry and using prims
*Licence now CC BY 4.0
*Colors fixed
*Logo redesigned, fixing geometry and using prims
*Licence now CC BY 4.0
Header Edits
keywords:
Aerial Intruder, Alpha Centauri Outpost, Blacktron, Blacktron Future Generation, Blacktron II, Bricklink 2408p01, BrickOwl 548201, Rebrickable 2408pr0001, Set 6981, Set 6988
to
Aerial Intruder, Alpha Centauri Outpost, Blacktron Future Generation, BrickOwl 548201, Bricklink 2408p01, Rebrickable 2408pr0001, Set 6981, Set 6988
Removed keywords present in the description.
nice, but you could use 2-4chrd instead of 2-4disc
Hold because of missing BFC NOCLIP (transparent part)
Hold because of missing BFC NOCLIP (transparent part)
*changed to chrds
*clipping added
*clipping added
2025-01-22 16:31:24
2025-01-22 21:52:45
2025-02-16 23:34:18
2025-02-27 19:17:23
Release 2025-02
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Damien Guichard,
Miklos Hosszu,
Niels Karsdorp,
William Howard,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
gaps caused by t-junk
