Official File p/boxjcyl4.dat
File Header:

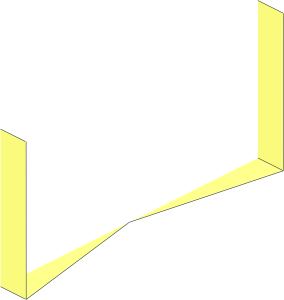

0 Box to Cylinder Joint 1: 4
0 Name: boxjcyl4.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Primitive UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP stud4 usage
0 !HELP 1 16 10 0 0 1 0 0 0 6 0 0 0 1 stud4.dat
0 !HELP 1 16 10 0 -8 0 0 1.5 0 -20 0 1.5 0 0 boxjcyl4.dat
0 !HELP 1 16 10 0 -12 0 0 -1.5 0 -20 0 4 0 0 box3u5p.dat
0 !HELP stud3 usage
0 !HELP 1 16 -10 0 0 1 0 0 0 6 0 0 0 1 stud3.dat
0 !HELP 1 16 -10 0 -4 0 0 1 0 -20 0 1 0 0 boxjcyl4.dat
0 !HELP 1 16 -10 0 -5 0 0 -1 0 -20 0 1 0 0 box3u5p.dat
0 BFC CERTIFY CCW
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2024-07-21 [Sirio] Removed wrong edge primitive, fixed Y-scale and precision of rects
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
0 !HISTORY 2024-08-03 [GeraldLasser] Using an unrotated edge prim for better results in Prim-Substition
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
