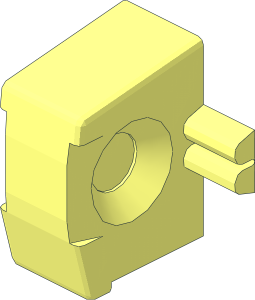

Click Lock Hinge Single Finger for Crevices and Ledges
File Header:
0 Click Lock Hinge Single Finger for Crevices and Ledges 0 Name: clh8.dat 0 Author: Willy Tschager [Holly-Wood] 0 !LDRAW_ORG Primitive UPDATE 2024-09 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Rotate accordingly and place 1 Ldu below top surface centered on stud 0 !HELP location (see 30369 as an example) 0 BFC CERTIFY CCW 0 !HISTORY 2006-01-11 [technog] reversed winding to standard 0 !HISTORY 2006-08-12 [WilliamH] Added missing conditional lines on front surface and near cones 0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02 0 !HISTORY 2024-03-06 [Holly-Wood] Complete re-write, original by jriley 0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 clh2c.dat 1 16 0 0 0 1 0 0 0 -1 0 0 0 1 clh2c.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 clh2c.dat 1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 clh2c.dat 1 16 3.48 -7.22 0 .52 0 0 0 1.74 -.52 0 -11.48 0 8\1-4cyli.dat 1 16 -3.48 -7.22 0 -.52 0 0 0 1.74 -.52 0 -11.48 0 8\1-4cyli.dat 1 16 3.48 8.48 -9 .52 0 0 0 0 .52 0 -1.48 0 8\1-4cyli.dat 1 16 -3.48 8.48 -9 -.52 0 0 0 0 .52 0 -1.48 0 8\1-4cyli.dat 1 16 3.48 8.48 -9 .52 0 0 0 0 .52 0 1 0 8\1-4edge.dat 1 16 -3.48 8.48 -9 -.52 0 0 0 0 .52 0 1 0 8\1-4edge.dat 1 16 3.48 -7.22 0 .52 0 0 0 0 -.52 0 1 0 8\1-4edge.dat 1 16 -3.48 -7.22 0 -.52 0 0 0 0 -.52 0 1 0 8\1-4edge.dat 1 16 3.48 8.48 -10.48 .52 0 0 0 0 .52 0 -.52 0 8\1-8sphe.dat 1 16 -3.48 8.48 -10.48 -.52 0 0 0 0 .52 0 -.52 0 8\1-8sphe.dat 1 16 3.48 -5.48 -11.48 .52 0 0 0 0 -.52 0 -.52 0 8\1-8sphe.dat 1 16 -3.48 -5.48 -11.48 -.52 0 0 0 0 -.52 0 -.52 0 8\1-8sphe.dat 1 16 3.48 8.48 -10.48 0 -6.96 0 0 0 .52 -.52 0 0 8\1-4cyli.dat 1 16 3.48 -5.48 -11.48 0 -6.96 0 0 0 -.52 -.52 0 0 8\1-4cyli.dat 1 16 3.48 -5.48 -11.48 .52 0 0 0 1.48 0 0 -.16 -.52 8\1-4cyli.dat 1 16 3.48 8.48 -10.48 .52 0 0 0 -4.48 0 0 -1.16 -.52 8\1-4cyli.dat 1 16 -3.48 8.48 -10.48 -.52 0 0 0 -4.48 0 0 -1.16 -.52 8\1-4cyli.dat 1 16 -3.48 -5.48 -11.48 -.52 0 0 0 1.48 0 0 -.16 -.52 8\1-4cyli.dat 2 24 -3.48 -7.74 0 3.48 -7.74 0 2 24 4 -7.22 0 4 -2.499 -.001 2 24 4 2.499 -.001 4 8 0 2 24 4 8 0 4 8 -9 2 24 4 8 -9 4 8.48 -9 2 24 3.48 9 -9 -3.48 9 -9 2 24 -4 8.48 -9 -4 8 -9 2 24 -4 8 -9 -4 8 0 2 24 -4 8 0 -4 2.499 -.001 2 24 -4 -2.499 -.001 -4 -7.22 0 4 16 4 8 -9 4 8 0 4 4 -3 4 4 -7 4 16 -4 8 0 -4 4 -3 -4 0 -3 -4 -7.22 0 3 16 -4 0 -3 -4 -4 -3 -4 -7.22 0 4 16 4 0 -3 4 4 -3 4 8 0 4 -7.22 0 3 16 4 -4 -3 4 0 -3 4 -7.22 0 4 16 -4 -4 -3 -4 -4 -7 -4 -5.48 -11.48 -4 -7.22 0 3 16 -4 -4 -7 -4 -4 -9.8284 -4 -5.48 -11.48 3 16 -4 -5.48 -11.48 -4 -4 -9.8284 -4 -4 -11.12 3 16 -4 -5.48 -11.48 -4 -4 -11.12 -4 -4 -11.64 4 16 4 -5.48 -11.48 4 -4 -7 4 -4 -3 4 -7.22 0 3 16 -4 4 -9.8284 -4 8.48 -10.48 -4 4 -11.12 3 16 -4 4 -11.12 -4 8.48 -10.48 -4 4 -11.64 3 16 4 -4 -9.8284 4 -4 -7 4 -5.48 -11.48 3 16 4 -4 -9.8284 4 -5.48 -11.48 4 -4 -11.12 3 16 4 -4 -11.12 4 -5.48 -11.48 4 -4 -11.64 4 16 -4 4 -3 -4 8 0 -4 8 -9 -4 4 -7 4 16 3.48 -7.74 0 -3.48 -7.74 0 -3.48 -6 -11.48 3.48 -6 -11.48 4 16 3.48 9 -9 3.48 9 -10.48 -3.48 9 -10.48 -3.48 9 -9 3 16 -4 8.48 -9 -4 8.48 -10.48 -4 8 -9 3 16 4 8.48 -10.48 4 8.48 -9 4 8 -9 4 16 4 8.48 -10.48 4 8 -9 4 4 -7 4 4 -9.828 3 16 4 8.48 -10.48 4 4 -9.8284 4 4 -11.12 3 16 4 8.48 -10.48 4 4 -11.12 4 4 -11.64 4 16 -4 4 -7 -4 8 -9 -4 8.48 -10.48 -4 4 -9.828 3 16 3.075 -4 -12.16 3.48 -4 -12.16 3.48 -5.48 -12 3 16 -3.48 -4 -12.16 -3.075 -4 -12.16 -3.48 -5.48 -12 4 16 3.48 -5.48 -12 -3.48 -5.48 -12 -3.075 -4 -12.16 3.075 -4 -12.16 3 16 3 -2.26 -12.35 3 2.26 -12.35 3.67 0 -10.66 3 16 -3.67 0 -10.66 -3 2.26 -12.35 -3 -2.26 -12.35 2 24 -3 2.26 -12.35 -3 -2.26 -12.35 2 24 3 2.26 -12.35 3 -2.26 -12.35 4 16 -3 -2.26 -12.35 3 -2.26 -12.35 3.075 -4 -12.16 -3.075 -4 -12.16 4 16 3 2.26 -12.35 3 -2.26 -12.35 -3 -2.26 -12.35 -3 2.26 -12.35 4 16 3.075 4 -12.16 3 2.26 -12.35 -3 2.26 -12.35 -3.075 4 -12.16 3 16 3.48 8.48 -11 3.48 4 -12.16 3.075 4 -12.16 3 16 -3.48 4 -12.16 -3.48 8.48 -11 -3.075 4 -12.16 4 16 -3.075 4 -12.16 -3.48 8.48 -11 3.48 8.48 -11 3.075 4 -12.16 5 24 3.48 -6 -11.48 -3.48 -6 -11.48 3.48 -5.9604 -11.679 3.48 -7.74 0 5 24 -3.48 9 -10.48 3.48 9 -10.48 3.48 8.9604 -10.679 3.48 9 -9 5 24 -3.075 4 -12.16 3.075 4 -12.16 3 2.26 -12.35 -3.48 8.48 -11 5 24 -3 -2.26 -12.35 3 -2.26 -12.35 3.075 -4 -12.16 -3 2.26 -12.35 5 24 -3 2.26 -12.35 3 2.26 -12.35 -3.075 4 -12.16 3 -2.26 -12.35
