Official File p/clip13.dat

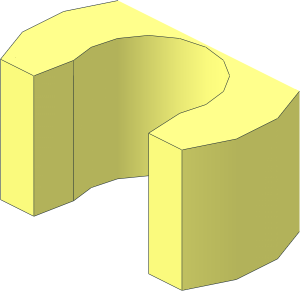

Clip Minimal (Thick C-Clip)
File Header:
0 Clip Minimal (Thick C-Clip) 0 Name: clip13.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Primitive UPDATE 2017-01 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
Show contents
0 BFC INVERTNEXT 1 16 0 4 0 3.69552 0 1.53073 0 -8 0 -1.53073 0 3.69552 5-8cylo.dat 1 16 5.011 0 -2.765 0 0.1522 -1.16272 4 0 0 0 -1.2346 0 box2-5.dat 1 16 -5.011 0 -2.765 0 -0.1522 1.16272 -4 0 0 0 -1.2346 0 box2-5.dat 3 16 6.3254 4 -4 4 4 -4 4 4 0 3 16 -4 4 0 -4 4 -4 -6.3254 4 -4 1 16 0 -4 0 4 0 0 0 1 0 0 0 4 2-4ndis.dat 1 16 0 -4 0 4 0 0 0 1 0 0 0 -4 1-16ndis.dat 1 16 0 -4 0 -4 0 0 0 1 0 0 0 -4 1-16ndis.dat 1 16 0 4 0 -4 0 0 0 -1 0 0 0 -4 1-16ndis.dat 1 16 0 4 0 4 0 0 0 -1 0 0 0 4 2-4ndis.dat 1 16 0 4 0 4 0 0 0 -1 0 0 0 -4 1-16ndis.dat 3 16 -6.3254 -4 -4 -4 -4 -4 -4 -4 0 3 16 4 -4 0 4 -4 -4 6.3254 -4 -4 1 16 0 -4 0.098 -6.3254 0 -4.2265 0 8 0 -4.09842 0 6.13371 3-16cylo.dat 1 16 0 -4 0.098 -6.3254 0 -4.2265 0 1 0 -4.09842 0 6.13371 3-16chrd.dat 1 16 0 4 0.098 -6.3254 0 -4.2265 0 -1 0 -4.09842 0 6.13371 3-16chrd.dat 4 16 -6.3259 -4 -3.9996 -4.0001 -4 0 -4 -4 4 -6.3256 -4 4.1965 4 16 -6.3259 4 -3.9996 -6.3256 4 4.1965 -4 4 4 -4.0001 4 0 1 16 0 -4 0.098 6.3254 0 4.2265 0 8 0 -4.09842 0 6.13371 3-16cylo.dat 1 16 0 -4 0.098 6.3254 0 4.2265 0 1 0 -4.09842 0 6.13371 3-16chrd.dat 1 16 0 4 0.098 6.3254 0 4.2265 0 -1 0 -4.09842 0 6.13371 3-16chrd.dat 4 16 4 -4 4 4.0001 -4 0 6.3259 -4 -3.9996 6.3256 -4 4.1965 4 16 4 4 4 6.3256 4 4.1965 6.3259 4 -3.9996 4.0001 4 0 4 16 0 4 4.0001 -4 4 4 -6.3256 4 4.1965 6.3256 4 4.1965 3 16 0 4 4.0001 6.3256 4 4.1965 4 4 4 4 16 -6.3256 -4 4.1965 -4 -4 4 0 -4 4.0001 6.3256 -4 4.1965 3 16 0 -4 4.0001 4 -4 4 6.3256 -4 4.1965
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 12: 1 16 0 4 0 3.69552 0 1.53073 0 -8 0 -1.53073 0 3.69552 5-8cylo.dat
    Line 13: 1 16 5.011 0 -2.765 0 0.1522 -1.16272 4 0 0 0 -1.2346 0 box2-5.dat
    Line 14: 1 16 -5.011 0 -2.765 0 -0.1522 1.16272 -4 0 0 0 -1.2346 0 box2-5.dat
    Line 25: 1 16 0 -4 0.098 -6.3254 0 -4.2265 0 8 0 -4.09842 0 6.13371 3-16cylo.dat
    Line 26: 1 16 0 -4 0.098 -6.3254 0 -4.2265 0 1 0 -4.09842 0 6.13371 3-16chrd.dat
    Line 27: 1 16 0 4 0.098 -6.3254 0 -4.2265 0 -1 0 -4.09842 0 6.13371 3-16chrd.dat
    Line 30: 1 16 0 -4 0.098 6.3254 0 4.2265 0 8 0 -4.09842 0 6.13371 3-16cylo.dat
    Line 31: 1 16 0 -4 0.098 6.3254 0 4.2265 0 1 0 -4.09842 0 6.13371 3-16chrd.dat
    Line 32: 1 16 0 4 0.098 6.3254 0 4.2265 0 -1 0 -4.09842 0 6.13371 3-16chrd.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
