Official File p/clip5.dat

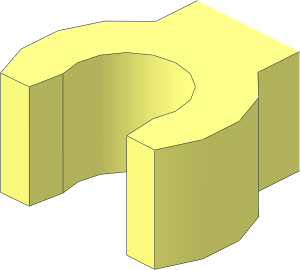

Clip Symmetrical with Rounded Sides
File Header:
0 Clip Symmetrical with Rounded Sides 0 Name: clip5.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Primitive UPDATE 2013-01 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
Show contents
1 16 0 -4 0 4 0 0 0 1 0 0 0 4 1-4ndis.dat 1 16 0 -4 0 4 0 0 0 1 0 0 0 -4 1-16ndis.dat 1 16 0 -4 0 6.32544 0 4.19094 0 1 0 -4.02975 0 6.57845 1-4chrd.dat 1 16 0 -4 0 -4 0 0 0 1 0 0 0 4 1-4ndis.dat 1 16 0 -4 0 -4 0 0 0 1 0 0 0 -4 1-16ndis.dat 1 16 0 -4 0 -6.32544 0 -4.19094 0 1 0 -4.02975 0 6.57845 1-4chrd.dat 4 16 0 -4 4 4 -4 4 4.1909 -4 6.5785 -4.1909 -4 6.5785 3 16 -4.1909 -4 6.5785 -4 -4 4 0 -4 4 1 16 0 4 0 -4 0 0 0 -1 0 0 0 4 1-4ndis.dat 1 16 0 4 0 -4 0 0 0 -1 0 0 0 -4 1-16ndis.dat 1 16 0 4 0 -6.32544 0 -4.19094 0 -1 0 -4.02975 0 6.57845 1-4chrd.dat 1 16 0 4 0 4 0 0 0 -1 0 0 0 4 1-4ndis.dat 0 BFC INVERTNEXT 1 16 0 4 0 3.69552 0 1.53073 0 -8 0 -1.53073 0 3.69552 5-8cyli.dat 1 16 0 4 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 5-8edge.dat 1 16 0 -4 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 5-8edge.dat 1 16 0 4 0 4 0 0 0 -1 0 0 0 -4 1-16ndis.dat 1 16 0 4 0 6.32544 0 4.19094 0 -1 0 -4.02975 0 6.57845 1-4chrd.dat 1 16 0 -4 0 6.32544 0 4.19094 0 8 0 -4.02975 0 6.57845 1-4cylo.dat 1 16 0 -4 0 -6.32544 0 -4.19094 0 8 0 -4.02975 0 6.57845 1-4cylo.dat 4 16 0 4 4 -4 4 4 -4.1909 4 6.5785 4.1909 4 6.5785 3 16 4.1909 4 6.5785 4 4 4 0 4 4 2 24 4.1909 -4 6.5785 4.1909 4 6.5785 2 24 -4.1909 -4 6.5785 -4.1909 4 6.5785 1 16 0 0 10 4.19094 0 0 0 0 -4 0 -3.42155 0 box4o8a.dat 1 16 -3.8478 0 -2.7654 -0.1522 -0.99249 0 0 0 4 -1.2346 1 0 rect.dat 1 16 -5.1627 0 -4.0149 0 -0.01279 -1.16272 -4 0 0 0 1 -0.01487 rect3.dat 1 16 5.1627 0 -4.0149 -1.16272 0.01279 0 0 0 4 0.01487 1 0 rect.dat 1 16 3.8478 0 -2.7654 0 0.99249 -0.1522 -4 0 0 0 1 1.2346 rect3.dat 3 16 6.3254 4 -4.0298 4 4 -4 4 4 0 4 16 6.3254 4 -4.0298 4 4 0 4 4 4 4.1909 4 6.5785 3 16 -4 4 0 -4 4 -4 -6.3254 4 -4.0298 4 16 -4.1909 4 6.5785 -4 4 4 -4 4 0 -6.3254 4 -4.0298 3 16 4 -4 0 4 -4 -4 6.3254 -4 -4.0298 4 16 4.1909 -4 6.5785 4 -4 4 4 -4 0 6.3254 -4 -4.0298 3 16 -6.3254 -4 -4.0298 -4 -4 -4 -4 -4 0 4 16 -6.3254 -4 -4.0298 -4 -4 0 -4 -4 4 -4.1909 -4 6.5785
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 13: 1 16 0 -4 0 6.32544 0 4.19094 0 1 0 -4.02975 0 6.57845 1-4chrd.dat
    Line 16: 1 16 0 -4 0 -6.32544 0 -4.19094 0 1 0 -4.02975 0 6.57845 1-4chrd.dat
    Line 21: 1 16 0 4 0 -6.32544 0 -4.19094 0 -1 0 -4.02975 0 6.57845 1-4chrd.dat
    Line 24: 1 16 0 4 0 3.69552 0 1.53073 0 -8 0 -1.53073 0 3.69552 5-8cyli.dat
    Line 25: 1 16 0 4 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 5-8edge.dat
    Line 26: 1 16 0 -4 0 3.69552 0 1.53073 0 -1 0 -1.53073 0 3.69552 5-8edge.dat
    Line 28: 1 16 0 4 0 6.32544 0 4.19094 0 -1 0 -4.02975 0 6.57845 1-4chrd.dat
    Line 29: 1 16 0 -4 0 6.32544 0 4.19094 0 8 0 -4.02975 0 6.57845 1-4cylo.dat
    Line 30: 1 16 0 -4 0 -6.32544 0 -4.19094 0 8 0 -4.02975 0 6.57845 1-4cylo.dat
    Line 35: 1 16 0 0 10 4.19094 0 0 0 0 -4 0 -3.42155 0 box4o8a.dat
    Line 36: 1 16 -3.8478 0 -2.7654 -0.1522 -0.99249 0 0 0 4 -1.2346 1 0 rect.dat
    Line 37: 1 16 -5.1627 0 -4.0149 0 -0.01279 -1.16272 -4 0 0 0 1 -0.01487 rect3.dat
    Line 38: 1 16 5.1627 0 -4.0149 -1.16272 0.01279 0 0 0 4 0.01487 1 0 rect.dat
    Line 39: 1 16 3.8478 0 -2.7654 0 0.99249 -0.1522 -4 0 0 0 1 1.2346 rect3.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
