Official File p/clip7.dat
File Header:

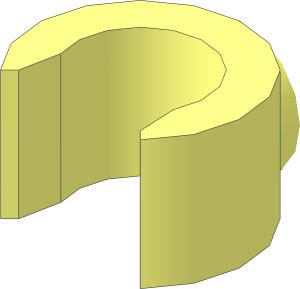

0 Clip for Round Arm 4 LDU
0 Name: clip7.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Primitive UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2019-12-03 [GeraldLasser] Subfiled and closed Gaps for Prim Substitution
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 clip15.dat
1 16 0 -4 0 .353553 0 -.353553 0 1 0 .353553 0 .353553 1-4ring12.dat
1 16 0 4 0 .353553 0 -.353553 0 -1 0 .353553 0 .353553 1-4ring12.dat
1 16 0 -4 0 4.596194 0 -4.596194 0 8 0 4.596194 0 4.596194 1-4cylo.dat
0 // Joint to Bar
1 16 0 0 6.5 4 0 0 0 0 4 0 -1.5054 0 1-4cyls2.dat
1 16 0 0 6.5 -4 0 0 0 0 4 0 -1.5054 0 1-4cyls2.dat
1 16 0 0 6.5 4 0 0 0 0 -4 0 -1.5054 0 1-4cyls2.dat
1 16 0 0 6.5 -4 0 0 0 0 -4 0 -1.5054 0 1-4cyls2.dat
2 24 4 0 4.995 3.696 1.531 5.198
2 24 3.696 1.531 5.198 2.828 2.828 5.778
2 24 2.488 3.056 6.005 2.828 2.828 5.778
2 24 2.488 -3.056 6.005 2.828 -2.828 5.778
2 24 2.828 -2.828 5.778 3.696 -1.531 5.198
2 24 3.696 -1.531 5.198 4 0 4.995
2 24 1.531 3.696 6.196 2.488 3.056 6.005
2 24 0 4 6.5 1.531 3.696 6.196
2 24 0 -4 6.5 1.531 -3.696 6.196
2 24 1.531 -3.696 6.196 2.488 -3.056 6.005
2 24 -1.531 3.696 6.196 0 4 6.5
2 24 -2.488 3.056 6.005 -1.531 3.696 6.196
2 24 -2.488 -3.056 6.005 -1.531 -3.696 6.196
2 24 -1.531 -3.696 6.196 0 -4 6.5
2 24 -2.828 2.828 5.778 -2.488 3.056 6.005
2 24 -3.696 1.531 5.198 -2.828 2.828 5.778
2 24 -4 0 4.995 -3.696 1.531 5.198
2 24 -3.696 -1.531 5.198 -4 0 4.995
2 24 -2.828 -2.828 5.778 -3.696 -1.531 5.198
2 24 -2.828 -2.828 5.778 -2.488 -3.056 6.005
Status:
Official
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 17: 1 16 0 -4 0 .353553 0 -.353553 0 1 0 .353553 0 .353553 1-4ring12.datLine 18: 1 16 0 4 0 .353553 0 -.353553 0 -1 0 .353553 0 .353553 1-4ring12.datLine 19: 1 16 0 -4 0 4.596194 0 -4.596194 0 8 0 4.596194 0 4.596194 1-4cylo.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright ©
Magnus Forsberg
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky, Gerald Lasser
