Official File p/confric4.dat

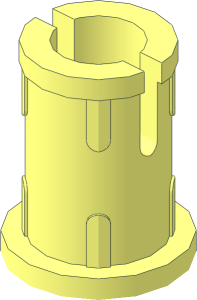

Technic Friction Pin 1.0 with Base Collar and Blind Hole
0 Technic Friction Pin 1.0 with Base Collar and Blind Hole
0 Name: confric4.dat
0 Author: Owen Burgoyne [C3POwen]
0 !LDRAW_ORG Primitive UPDATE 2015-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connect8.dat
1 16 0 -2 0 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 fric.dat
1 16 0 -2 0 0.707107 0 0.707107 0 1 0 -0.707107 0 0.707107 fric.dat
1 16 0 -2 0 -0.707107 0 0.707107 0 1 0 -0.707107 0 -0.707107 fric.dat
1 16 0 -2 0 -0.707107 0 -0.707107 0 1 0 0.707107 0 -0.707107 fric.dat
1 16 0 -18 0 0.707107 0 -0.707107 0 -1 0 0.707107 0 0.707107 fric.dat
1 16 0 -18 0 0.707107 0 0.707107 0 -1 0 -0.707107 0 0.707107 fric.dat
1 16 0 -18 0 -0.707107 0 0.707107 0 -1 0 -0.707107 0 -0.707107 fric.dat
1 16 0 -18 0 -0.707107 0 -0.707107 0 -1 0 0.707107 0 -0.707107 fric.dat

Status

Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 12: 1 16 0 -2 0 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 fric.dat
    Line 13: 1 16 0 -2 0 0.707107 0 0.707107 0 1 0 -0.707107 0 0.707107 fric.dat
    Line 14: 1 16 0 -2 0 -0.707107 0 0.707107 0 1 0 -0.707107 0 -0.707107 fric.dat
    Line 15: 1 16 0 -2 0 -0.707107 0 -0.707107 0 1 0 0.707107 0 -0.707107 fric.dat
    Line 16: 1 16 0 -18 0 0.707107 0 -0.707107 0 -1 0 0.707107 0 0.707107 fric.dat
    Line 17: 1 16 0 -18 0 0.707107 0 0.707107 0 -1 0 -0.707107 0 0.707107 fric.dat
    Line 18: 1 16 0 -18 0 -0.707107 0 0.707107 0 -1 0 -0.707107 0 -0.707107 fric.dat
    Line 19: 1 16 0 -18 0 -0.707107 0 -0.707107 0 -1 0 0.707107 0 -0.707107 fric.dat
This part has the following warnings
  • Number in description may need a leading space

Part Dependencies

Unofficial parents

Part Events
