File Detail p/joint8socket1.dat

Official File p/joint8socket1.dat

File Header:

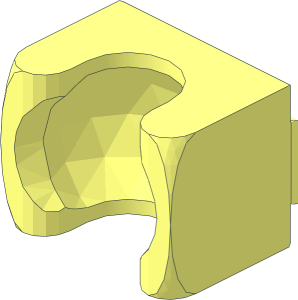

0 Joint-8 Socket with Friction
0 Name: joint8socket1.dat
0 Author: Tim Gould [timgould]
0 !LDRAW_ORG Primitive UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP it moves +/-35 degrees in the horizontal plane
0 !HELP 1 4 0 0 0 0.819152 0 0.573576 0 -1 0 0.573576 0 -0.819152 joint8ball.dat
0 !HELP it moves 5 degrees from a vertical position
0 !HELP 1 4 0 0 0 0.996195 0 0.087156 0.087156 0 -0.996195 0 1 0 joint8ball.dat

0 BFC CERTIFY CCW

0 !HISTORY 2014-01-06 [timgould] Update description
0 !HISTORY 2014-03-22 [MagFors] Complete rewrite
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
0 !HISTORY 2021-07-08 [MagFors] Used file without backside
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents
