Official File parts/2419.dat
Part Attributes:
File Header:

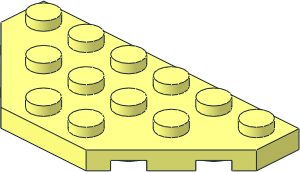

0 Plate 3 x 6 without Corners
0 Name: 2419.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-08-07 [jriley] BFC compliant
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-05-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-11-11 [mkennedy] optimized with boxes and stugs and rects, Used ribt45, used rect1 in gaps.
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
