File Detail parts/24246p01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/24246p01.dat

Part Attributes: Base Part: 24246.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

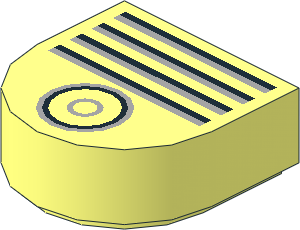

Tile 1 x 1 with Rounded End with Black and Light Grey Circle and Four Lines Pattern

File Header:

0 Tile  1 x  1 with Rounded End with Black and Light Grey Circle and Four Lines Pattern
0 Name: 24246p01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 24246pb001, Cylinder, Engine, Rebrickable 24246pr0001
0 !KEYWORDS Set 70902

0 !HISTORY 2019-06-28 [PTadmin] Official Update 2019-01
0 !HISTORY 2021-01-16 [cwdee] Update description
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-02-27 [Lego-Manfred] References and set added
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24246s01.dat
1 16 0 0 0 9.5 0 0 0 1 0 0 0 -9.5 1-4ering.dat
1 16 0 0 0 -9.5 0 0 0 1 0 0 0 -9.5 1-4ering.dat

1 16 0 0 -4.5 4 0 0 0 1 0 0 0 4 4-4ndis.dat
1 71 0 0 -4.5 .5 0 0 0 1 0 0 0 .5 4-4ring7.dat
1 0 0 0 -4.5 .5 0 0 0 1 0 0 0 .5 4-4ring6.dat
1 16 0 0 -4.5 1 0 0 0 1 0 0 0 1 4-4ring2.dat
1 16 0 0 -4.5 .5 0 0 0 1 0 0 0 .5 4-4ring3.dat
1 71 0 0 -4.5 .5 0 0 0 1 0 0 0 .5 4-4ring2.dat
1 16 0 0 -4.5 1 0 0 0 1 0 0 0 1 4-4disc.dat

3 16 -4 0 -8.5 -4 0 -4.5 -6.7175 0 -6.7175
3 16 -6.7175 0 -6.7175 -4 0 -4.5 -8.7771 0 -3.6357
3 16 -8.7771 0 -3.6357 -4 0 -4.5 -9.5 0 0
3 16 -4 0 -8.5 -6.7175 0 -6.7175 -3.6357 0 -8.7771
3 16 -4 0 -.5 0 0 -.5 -8.7 0 -.1
4 16 8.7 0 8.8 10 0 10 -10 0 10 -8.7 0 8.8
4 16 0 0 -8.5 -4 0 -8.5 -3.6357 0 -8.7771 0 0 -9.5
4 16 0 0 -8.5 0 0 -9.5 3.6357 0 -8.7771 4 0 -8.5
3 16 4 0 -8.5 3.6357 0 -8.7771 6.7175 0 -6.7175
3 16 4 0 -8.5 6.7175 0 -6.7175 4 0 -4.5
3 16 4 0 -4.5 6.7175 0 -6.7175 8.7771 0 -3.6357
3 16 4 0 -4.5 8.7771 0 -3.6357 9.5 0 0
3 16 8.7 0 8.1 10 0 10 8.7 0 8.8
3 16 8.7 0 7.4 10 0 10 8.7 0 8.1
3 16 8.7 0 6.3 10 0 10 8.7 0 7.4
3 16 8.7 0 5.6 10 0 10 8.7 0 6.3
3 16 8.7 0 4.9 10 0 10 8.7 0 5.6
4 16 10 0 10 8.7 0 4.9 8.7 0 3.8 9.5 0 0
3 16 9.5 0 0 8.7 0 3.8 8.7 0 3.1
3 16 9.5 0 0 8.7 0 3.1 8.7 0 2.4
3 16 9.5 0 0 8.7 0 2.4 8.7 0 1.3
3 16 9.5 0 0 8.7 0 1.3 8.7 0 .6
3 16 8.7 0 -.1 9.5 0 0 8.7 0 .6
3 16 8.7 0 -.1 4 0 -.5 4 0 -4.5
3 16 4 0 -4.5 9.5 0 0 8.7 0 -.1
3 16 -10 0 10 -8.7 0 8.1 -8.7 0 8.8
3 16 -10 0 10 -8.7 0 7.4 -8.7 0 8.1
3 16 -10 0 10 -8.7 0 6.3 -8.7 0 7.4
3 16 -10 0 10 -8.7 0 5.6 -8.7 0 6.3
3 16 -10 0 10 -8.7 0 4.9 -8.7 0 5.6
4 16 -8.7 0 3.8 -8.7 0 4.9 -10 0 10 -9.5 0 0
3 16 -8.7 0 3.8 -9.5 0 0 -8.7 0 3.1
3 16 -8.7 0 3.1 -9.5 0 0 -8.7 0 2.4
3 16 -8.7 0 2.4 -9.5 0 0 -8.7 0 1.3
3 16 -8.7 0 1.3 -9.5 0 0 -8.7 0 .6
3 16 -9.5 0 0 -8.7 0 -.1 -8.7 0 .6
3 16 -4 0 -.5 -8.7 0 -.1 -4 0 -4.5
3 16 -9.5 0 0 -4 0 -4.5 -8.7 0 -.1
4 0 8.7 0 8.1 8.7 0 8.8 -8.7 0 8.8 -8.7 0 8.1
4 71 8.7 0 8.1 -8.7 0 8.1 -8.7 0 7.4 8.7 0 7.4
4 16 8.7 0 6.3 8.7 0 7.4 -8.7 0 7.4 -8.7 0 6.3
4 0 8.7 0 5.6 8.7 0 6.3 -8.7 0 6.3 -8.7 0 5.6
4 71 8.7 0 5.6 -8.7 0 5.6 -8.7 0 4.9 8.7 0 4.9
4 16 8.7 0 3.8 8.7 0 4.9 -8.7 0 4.9 -8.7 0 3.8
4 0 8.7 0 3.1 8.7 0 3.8 -8.7 0 3.8 -8.7 0 3.1
4 71 8.7 0 3.1 -8.7 0 3.1 -8.7 0 2.4 8.7 0 2.4
4 16 8.7 0 1.3 8.7 0 2.4 -8.7 0 2.4 -8.7 0 1.3
4 0 8.7 0 .6 8.7 0 1.3 -8.7 0 1.3 -8.7 0 .6
4 71 8.7 0 .6 -8.7 0 .6 -8.7 0 -.1 8.7 0 -.1
4 16 0 0 -.5 4 0 -.5 8.7 0 -.1 -8.7 0 -.1

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Manfred Schaefer [Lego-Manfred]

initially submitted the part.

2025-02-27 17:16:04

Only the references were added, the pattern remained unchanged

Magnus Forsberg [MagFors]

posted a vote of Admin Fast Track.

2025-02-27 17:44:57

Orion Pobursky [OrionP]

2025-02-27 19:20:06

Release 2025-02

Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Chris Dee, Manfred Schaefer, Orion Pobursky,
