Official File parts/24248.dat
Part Attributes:
File Header:

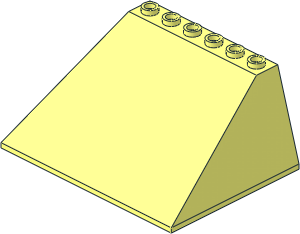

0 Windscreen 6 x 8 x 3
0 Name: 24248.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2017-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Set 75144, Snowspeeder
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
Show contents
0 // Bottom
4 16 80 72 -110 -80 72 -110 -76 72 -106 76 72 -106
4 16 -80 72 -110 -80 72 10 -76 72 6 -76 72 -106
4 16 -80 72 10 -70 72 10 -70 72 6 -76 72 6
4 16 -60 72 0 -60 72 -90 -64 72 -94 -64 72 0
4 16 -60 72 -90 60 72 -90 64 72 -94 -64 72 -94
4 16 64 72 -94 60 72 -90 60 72 0 64 72 0
4 16 70 72 6 70 72 10 80 72 10 76 72 6
4 16 76 72 6 80 72 10 80 72 -110 76 72 -106
2 24 60 72 0 64 72 0
2 24 -60 72 0 -64 72 0
2 24 -80 72 10 -70 72 10
2 24 -70 72 10 -70 72 6
2 24 70 72 10 70 72 6
2 24 80 72 10 70 72 10
0 // Bottom Insides
0 BFC INVERTNEXT
1 16 0 70 6 0 0 -76 2 0 0 0 -112 0 box3u2p.dat
1 16 0 70 0 0 0 -64 2 0 0 0 -94 0 box3u2p.dat
1 16 73 70 6 0 0 -3 2 0 0 0 1 0 rect3.dat
1 16 -73 70 6 0 0 3 2 0 0 0 1 0 rect3.dat
1 16 0 68 -100 -1 0 0 0 -1 0 0 0 1 stug3-1x7.dat
1 16 -70 68 -50 0 0 -1 0 -1 0 -1 0 0 stug3-1x5.dat
1 16 70 68 -50 0 0 -1 0 -1 0 -1 0 0 stug3-1x5.dat
4 16 -70 68 0 -64 68 0 -64 68 -94 -76 68 -106
4 16 76 68 -106 64 68 -94 64 68 0 70 68 0
4 16 -76 68 -106 -64 68 -94 64 68 -94 76 68 -106
4 16 -70 68 6 -70 68 0 -76 68 -106 -76 68 6
1 16 -64 68 6 -6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
4 16 76 68 -106 70 68 0 70 68 6 76 68 6
1 16 64 68 6 6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
0 // Bottom Outides
0 BFC INVERTNEXT
1 16 0 68 0 0 0 -60 4 0 0 0 -90 0 box3u2p.dat
1 16 0 70 10 0 0 -80 2 0 0 0 -120 0 box3u2p.dat
3 16 74.654107 64 10 80 68 10 80 72 10
4 16 70 72 10 70 64 10 74.654107 64 10 80 72 10
4 16 70 72 10 70 72 6 70 68 6 70 64 10
3 16 70 64 6 70 64 10 70 68 6
0 BFC INVERTNEXT
1 16 64 68 6 6 0 0 0 -4 0 0 0 -6 1-4cylo.dat
4 16 60 64 0 64 68 0 64 72 0 60 72 0
3 16 64 64 0 64 68 0 60 64 0
4 16 -64 72 0 -64 68 0 -60 64 0 -60 72 0
3 16 -60 64 0 -64 68 0 -64 64 0
0 BFC INVERTNEXT
1 16 -64 68 6 -6 0 0 0 -4 0 0 0 -6 1-4cylo.dat
4 16 -70 68 6 -70 72 6 -70 72 10 -70 64 10
3 16 -70 68 6 -70 64 10 -70 64 6
3 16 -80 68 10 -74.654107 64 10 -80 72 10
4 16 -74.654107 64 10 -70 64 10 -70 72 10 -80 72 10
2 24 74.654107 64 10 70 64 10
2 24 70 64 10 70 72 10
2 24 64 64 0 60 64 0
2 24 -60 64 0 -64 64 0
2 24 -70 64 6 -70 64 10
2 24 70 64 6 70 64 10
2 24 -70 64 10 -70 72 10
2 24 -70 64 10 -74.654107 64 10
0 // Bottom Surface
4 16 -74.65411 64 -97.00413 -70 64 0 -70 64 6 -74.65411 64 10
3 16 -70 64 10 -74.65411 64 10 -70 64 6
1 16 -64 64 6 -6 0 0 0 1 0 0 0 -6 1-4ndis.dat
4 16 -64 64 0 -70 64 0 -74.65411 64 -97.00413 -60 64 -90
3 16 -60 64 0 -64 64 0 -60 64 -90
4 16 60 64 -90 -60 64 -90 -74.65411 64 -97.00413 74.65411 64 -97.00413
1 16 64 64 6 6 0 0 0 1 0 0 0 -6 1-4ndis.dat
3 16 60 64 -90 64 64 0 60 64 0
4 16 70 64 0 64 64 0 60 64 -90 74.65411 64 -97.00413
4 16 70 64 6 70 64 0 74.65411 64 -97.00413 74.65411 64 10
3 16 74.65411 64 10 70 64 10 70 64 6
2 24 74.65411 64 -97.00413 74.65411 64 10
2 24 -74.65411 64 -97.00413 -74.65411 64 10
2 24 -74.65411 64 -97.00413 74.65411 64 -97.00413
0 // Screen Inside
1 16 0 3 1.43801 56.71293 0 0 0 -1 0 0 0 8.56199 rect.dat
4 16 56.71293 3 10 60 0 10 80 68 10 74.65411 64 10
4 16 -80 68 10 -60 0 10 -56.71293 3 10 -74.65411 64 10
4 16 56.71293 3 10 -56.71293 3 10 -60 0 10 60 0 10
2 24 60 0 10 80 68 10
2 24 56.71293 3 10 74.65411 64 10
2 24 -56.71293 3 10 -74.65411 64 10
2 24 -60 0 10 -80 68 10
4 16 56.71293 3 -7.12398 56.71293 3 10 74.65411 64 10 74.65411 64 -97.00413
4 16 74.65411 64 -97.00413 -74.65411 64 -97.00413 -56.71293 3 -7.12398 56.71293 3 -7.12398
4 16 -56.71293 3 10 -56.71293 3 -7.12398 -74.65411 64 -97.00413 -74.65411 64 10
2 24 74.65411 64 -97.00413 56.71293 3 -7.12398
2 24 -74.65411 64 -97.00413 -56.71293 3 -7.12398
0 // Screen Outer Side
1 16 0 0 0 60 0 0 0 1 0 0 0 10 rect.dat
4 16 80 68 10 60 0 10 60 0 -10 80 68 -110
4 16 60 0 -10 -60 0 -10 -80 68 -110 80 68 -110
4 16 -60 0 -10 -60 0 10 -80 68 10 -80 68 -110
2 24 60 0 -10 80 68 -110
2 24 -60 0 -10 -80 68 -110
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 stug2-6x1.dat
Status:
Official
Unofficial parents
