Official File p/toothb14.dat
File Header:

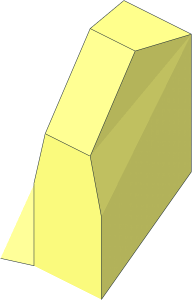

0 Single Tooth for Technic Bevel Gear 14 Tooth
0 Name: toothb14.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Primitive UPDATE 2010-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2009-01-15 [tchang] Add BFC, primitives, conditional lines
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
Show contents
2 24 -1.5 -10 -4 -2.98738 -9.66051 -4
2 24 -1.5 -13 0 -4.28904 -12.3634 0
1 16 0 -11.5 -4 0 0 1.5 -1.5 0 0 0 3 0 rect2p.dat
1 16 0 -15.5 0 -1.5 0 0 0 0 -2.5 0 -3 0 rect3.dat
2 24 1.5 -13 -4 1 -15 -4
2 24 1 -15 -4 -1 -15 -4
2 24 -1 -15 -4 -1.5 -13 -4
4 16 1.5 -13 -4 1 -15 -4 -1 -15 -4 -1.5 -13 -4
2 24 -1 -15 -4 -1 -18 -2
2 24 -1 -18 -2 1 -18 -2
2 24 1 -18 -2 1 -15 -4
2 24 -1 -18 -2 -1.5 -18 0
2 24 1 -18 -2 1.5 -18 0
2 24 -1.5 -10 -4 -1.5 -13 0
2 24 1.5 -10 -4 1.5 -13 0
4 16 -1.5 -18 0 -1 -18 -2 1 -18 -2 1.5 -18 0
4 16 -2.98738 -9.66051 -4 -1.5 -10 -4 -1.5 -13 0 -4.28904 -12.3634 0
4 16 -1.5 -10 -4 -1.5 -13 -4 -1.5 -18 0 -1.5 -13 0
3 16 -1.5 -13 -4 -1 -15 -4 -1.5 -18 0
3 16 -1 -15 -4 -1 -18 -2 -1.5 -18 0
5 24 -1 -15 -4 -1.5 -18 0 -1.5 -13 -4 -1 -18 -2
4 16 -1 -15 -4 1 -15 -4 1 -18 -2 -1 -18 -2
3 16 1 -15 -4 1.5 -13 -4 1.5 -18 0
3 16 1 -15 -4 1.5 -18 0 1 -18 -2
5 24 1 -15 -4 1.5 -18 0 1.5 -13 -4 1 -18 -2
4 16 1.5 -13 -4 1.5 -10 -4 1.5 -13 0 1.5 -18 0
5 24 -1.5 -13 -4 -1.5 -18 0 -1 -15 -4 -1.5 -10 -4
5 24 1.5 -13 -4 1.5 -18 0 1 -15 -4 1.5 -10 -4
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 12: 2 24 -1.5 -10 -4 -2.98738 -9.66051 -4Line 13: 2 24 -1.5 -13 0 -4.28904 -12.3634 0Line 28: 4 16 -2.98738 -9.66051 -4 -1.5 -10 -4 -1.5 -13 0 -4.28904 -12.3634 0
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
