Official File p/znap2.dat

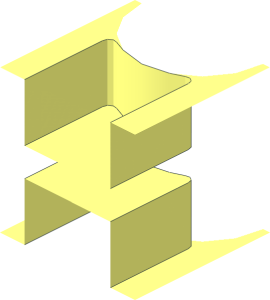

Znap Peghole Spacer - Half
File Header:
0 Znap Peghole Spacer - Half 0 Name: znap2.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Primitive UPDATE 2024-02 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2005-07-28 [mikeheide] added details and BFC'ed 0 !HISTORY 2005-08-03 [mikeheide] split cylinder 0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01 0 !HISTORY 2024-02-12 [GeraldLasser] Complete re-write, original by t.woelk 0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 znap2a.dat 1 16 0 -10 0 9 0 0 0 1 0 0 0 -9 1-8ndis.dat 3 16 6.3639 -10 -8.46788 9 -10 -9 6.3639 -10 -6.3639 3 16 9 -10 -9 6.3639 -10 -8.46788 6.3639 -10 -10 4 16 9 -10 0 9 -10 -9 10 -10 -20 10 -10 0 4 16 6.3639 -10 -10 6.3639 -10 -20 10 -10 -20 9 -10 -9 1 16 0 10 0 9 0 0 0 -1 0 0 0 -9 1-8ndis.dat 3 16 9 10 -9 6.3639 10 -8.46788 6.3639 10 -6.3639 3 16 6.3639 10 -8.46788 9 10 -9 6.3639 10 -10 4 16 10 10 -20 9 10 -9 9 10 0 10 10 0 4 16 10 10 -20 6.3639 10 -20 6.3639 10 -10 9 10 -9
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 18: 3 16 6.3639 -10 -8.46788 9 -10 -9 6.3639 -10 -6.3639
    Line 19: 3 16 9 -10 -9 6.3639 -10 -8.46788 6.3639 -10 -10
    Line 24: 3 16 9 10 -9 6.3639 10 -8.46788 6.3639 10 -6.3639
    Line 25: 3 16 6.3639 10 -8.46788 9 10 -9 6.3639 10 -10
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
