File Detail parts/11126.dat

Official File parts/11126.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

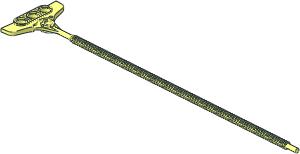

Ripcord Flexible with Handle Thin for Chima Speedorz (91 Teeth)

File Header:

0 Ripcord Flexible with Handle Thin for Chima Speedorz (91 Teeth)
0 Name: 11126.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Rack
0 !KEYWORDS Chima, Speedorz

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-04-20 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11126s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\11126s01.dat
1 16 95.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 147.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 199.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 251.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 303.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 355.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
1 16 407.25 0 0 1 0 0 0 1 0 0 0 1 s\11126s02.dat
0 // Primitives
1 16 70.4 0 0 0 -2.025 0 3 0 0 0 0 3 4-4cyli.dat
1 16 68.375 0 0 0 1 0 3 0 0 0 0 3 4-4edge.dat
1 16 448.7 0 0 0 -14.625 0 3 0 0 0 0 3 4-4cyli.dat
1 16 448.7 0 0 0 -1 0 3 0 0 0 0 3 4-4disc.dat
1 16 448.7 0 0 0 1 0 3 0 0 0 0 3 4-4edge.dat
1 16 67.875 0 0 0 .5 0 1 0 0 0 0 1 4-4con3.dat
1 16 67.875 0 0 0 -.858 0 4 0 0 0 0 4 4-4cylo.dat
1 16 67 0 0 0 -1.25 0 -1 0 0 0 0 1 4-4con3.dat
1 16 34.9 0 0 0 30.85 0 3 0 0 0 0 3 4-4cyli.dat
1 16 65.75 0 0 0 1 0 3 0 0 0 0 3 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 3 0 6 0 0 0 -6 0 0 0 6 4-4cyli.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2020-04-30 06:05:01

Massimo Maso [Sirio]

submitted a new version of the part.

2020-05-01 06:25:01

Same correction of 16965.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-05-08 17:10:01

The cylc prim in the thin end create an unwanted edgeline
The rect prim on the handle create two unwanted edge lines

In fact, since you are rotating the handle subfile, more of the primitives could be moved into the sub.
Anything used twice here, could be in the subfile. You could even split the rect prim and only add one triangle in the subfile

It must be possible to simplify the extra conical, smaller ring/tooth/gear

[PTadmin]

edited the part header.

2020-05-08 20:10:01

Massimo Maso [Sirio]

submitted a new version of the part.

2020-05-10 13:30:02

Primitive cylc replaced with cyli + disc + edge.
Primitive rect replaced with rect2p.

I didn't understand how to simplify conical surfaces, perhaps not using primitives?
I did not understand the comment on the subfile, within this there are no primitive type rect.

Existing certification-votes were deleted.

Massimo Maso [Sirio]

submitted a new version of the part.

2020-05-11 06:00:02

Changed size of the chord and simplified the stop ring.
Moved some faces in the subfile.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2020-05-17 13:40:01

Philippe Hurbain [Philo]

posted a vote of Certify.

2020-12-29 09:55:01

Orion Pobursky [OrionP]

posted a vote of Hold.

2023-02-27 04:53:19

I'd like to see this part redone for with flexible sections and proper naming.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-02-27 15:51:50

Is that really necessary? It may be called Flexible but is never used in any other position than the one modeled here.
It is made from regular ABS and only bendable due to being thin. If you bend it too much it will deform or break.

Orion Pobursky [OrionP]

cancelled their vote.

2023-02-27 17:11:02

I don't have this part, thanks for the clarification.

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2023-03-28 02:43:50

Orion Pobursky [OrionP]

2023-04-17 04:55:48

Release 2023-02
