File Detail parts/11641.dat

Official File parts/11641.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

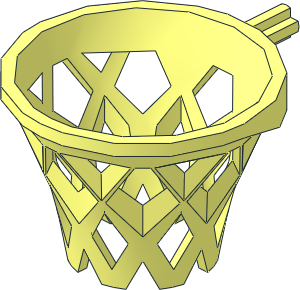

0 Minifig Basketball Net with Axle
0 Name: 11641.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Figure Accessory

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2021-08-17 [RainbowDolphin] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05

Show contents

1 16 0 0 0 -1 0 0 0 0 -1 0 -20 0 axle.dat
0 // Half subfile
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11641s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11641s01.dat
0 // Stitching section
3 16 -7.5 -7.5 -20 0 -7.5 -24.662 7.5 -7.5 -20
4 16 7.5 -7.5 -20 7.5 7.5 -20 -7.5 7.5 -20 -7.5 -7.5 -20
4 16 7.5 7.5 -20 3.965 7.36 -25.75 -3.965 7.36 -25.75 -7.5 7.5 -20
4 16 -4.628 7.094 -29.784 -3.965 7.36 -25.75 3.965 7.36 -25.75 4.628 7.094 -29.784
3 16 0 25.955 -37.144 -3.348 37.5 -42.042 3.348 37.5 -42.042
3 16 3.068 41.5 -42.717 -3.068 41.5 -42.717 0 48.9 -43.833
4 16 3.068 41.5 -42.717 3.348 37.5 -42.042 -3.348 37.5 -42.042 -3.068 41.5 -42.717
3 16 0 -7.5 -24.662 -4.628 7.094 -29.784 4.628 7.094 -29.784
3 16 0 -2.5 -113.507 -2.659 4.347 -110.65 2.659 4.347 -110.65
4 16 3.412 4.347 -106.537 2.659 4.347 -110.65 -2.659 4.347 -110.65 -3.412 4.347 -106.537
3 16 3.412 4.347 -106.537 -3.412 4.347 -106.537 0 -7.5 -110.662
3 16 3.348 37.5 -93.032 -3.348 37.5 -93.032 0 25.955 -97.93
3 16 0 48.9 -91.241 -3.068 41.5 -92.357 3.068 41.5 -92.357
4 16 3.348 37.5 -93.032 3.068 41.5 -92.357 -3.068 41.5 -92.357 -3.348 37.5 -93.032
5 24 0 25.955 -97.93 3.348 37.5 -93.032 4.654 29.329 -96.187 -3.348 37.5 -93.032
2 24 3.965 7.36 -25.75 4.628 7.094 -29.784
5 24 4.628 7.094 -29.784 0 -7.5 -24.662 -4.628 7.094 -29.784 17.622 -7.5 -28.095
5 24 -3.068 41.5 -92.357 3.068 41.5 -92.357 0 48.9 -91.241 -3.348 37.5 -93.032
5 24 0 38.364 -97.488 0 25.955 -97.93 -9.446 16.698 -100.348 9.446 16.698 -100.348
2 24 -3.412 4.347 -106.537 -2.659 4.347 -110.65
5 24 0 25.955 -97.93 -3.348 37.5 -93.032 3.348 37.5 -93.032 -4.654 29.329 -96.187
2 24 7.5 7.5 -20 -7.5 7.5 -20
5 24 -3.348 37.5 -42.042 0 25.955 -37.144 -4.654 29.329 -38.887 3.348 37.5 -42.042
5 24 -3.068 41.5 -92.357 0 48.9 -91.241 -8.737 53.855 -88.629 3.068 41.5 -92.357
5 24 0 25.955 -37.144 0 38.364 -37.586 12.418 23.506 -34.353 -12.418 23.506 -34.353
2 24 7.5 -7.5 -20 -7.5 -7.5 -20
5 24 -2.659 4.347 -110.65 0 -2.5 -113.507 2.659 4.347 -110.65 -3.944 4.347 -110.552
5 24 -3.348 37.5 -42.042 3.348 37.5 -42.042 0 25.955 -37.144 -3.068 41.5 -42.717
2 24 3.412 4.347 -106.537 -3.412 4.347 -106.537
2 24 -3.348 37.5 -93.032 -3.068 41.5 -92.357
5 24 3.068 41.5 -92.357 0 48.9 -91.241 8.737 53.855 -88.629 -3.068 41.5 -92.357
2 24 3.348 37.5 -93.032 3.068 41.5 -92.357
5 24 0 -7.5 -110.662 3.412 4.347 -106.537 -3.412 4.347 -106.537 8.985 -7.5 -109.792
2 24 -2.659 4.347 -110.65 2.659 4.347 -110.65
5 24 0 48.9 -39.787 0 48.9 -43.833 -5.625 61.4 -46.786 5.625 61.4 -46.786
2 24 -3.965 7.36 -25.75 -4.628 7.094 -29.784
5 24 0 48.9 -91.241 0 48.9 -95.287 -5.625 61.4 -92.456 5.625 61.4 -92.456
5 24 0 48.9 -43.833 -3.068 41.5 -42.717 3.068 41.5 -42.717 -8.737 53.855 -46.445
5 24 3.068 41.5 -42.717 -3.068 41.5 -42.717 0 48.9 -43.833 3.348 37.5 -42.042
2 24 3.412 4.347 -106.537 2.659 4.347 -110.65
5 24 0 48.9 -95.287 0 38.364 -97.488 -4.806 41.801 -96.226 4.806 41.801 -96.226
2 24 -3.068 41.5 -42.717 -3.348 37.5 -42.042
5 24 3.348 37.5 -93.032 -3.348 37.5 -93.032 0 25.955 -97.93 3.068 41.5 -92.357
5 24 7.5 7.5 -20 3.965 7.36 -25.75 -3.965 7.36 -25.75 18.369 7.476 -23.316
5 24 3.348 37.5 -42.042 0 25.955 -37.144 4.654 29.329 -38.887 -3.348 37.5 -42.042
5 24 0 -7.5 -110.662 -3.412 4.347 -106.537 3.412 4.347 -106.537 -8.985 -7.5 -109.792
5 24 -7.5 7.5 -20 -7.5 -7.5 -20 -18.369 7.476 -23.316 7.5 -7.5 -20
5 24 -4.628 7.094 -29.784 0 -7.5 -24.662 4.628 7.094 -29.784 -17.622 -7.5 -28.095
2 24 -4.628 7.094 -29.784 4.628 7.094 -29.784
5 24 0 38.364 -37.586 0 48.9 -39.787 -4.806 41.801 -38.848 4.806 41.801 -38.848
2 24 3.068 41.5 -42.717 3.348 37.5 -42.042
5 24 7.5 -7.5 -20 7.5 7.5 -20 18.369 7.476 -23.316 -7.5 7.5 -20
5 24 -3.965 7.36 -25.75 3.965 7.36 -25.75 4.628 7.094 -29.784 -7.5 7.5 -20
5 24 0 -2.5 -115.662 0 -7.5 -115.662 9.364 -7.5 -114.74 -9.364 -7.5 -114.74
5 24 -7.5 7.5 -20 -3.965 7.36 -25.75 -18.369 7.476 -23.316 7.5 7.5 -20
5 24 0 48.9 -43.833 3.068 41.5 -42.717 -3.068 41.5 -42.717 8.737 53.855 -46.445
5 24 2.659 4.347 -110.65 0 -2.5 -113.507 -2.659 4.347 -110.65 3.944 4.347 -110.552

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Takeshi Takahashi [RainbowDolphin]

initially submitted the part.

2021-08-23 03:45:01

Rene Rechthaler [Blechtaler]

made the following comment.

2023-11-06 18:38:18

could be cut in half and mirrored...

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-03-29 11:00:01

* Should have the same orientation as the 43374+43373 combination

* Missing edges:
2 29 8.371 -2.5 112.738 23.971 -2.5 106.762
2 29 -8.371 -2.5 112.738 -23.971 -2.5 106.762

* Missing edges on penetration, but the penetration should be fixed in the first place:
2 27 33.482604 4.94374 47.781206 33.351068 4.962316 44.211006
2 27 -33.482604 4.94374 47.781206 -33.351068 4.962316 44.211006

* All these (basically the entire bottom ring):

4 4 4.628 7.094 29.784 7.5 7.5 20 -7.5 7.5 20 -4.628 7.094 29.784
3 4 24.007 6.186 37.561 33.941 6.9 33.721 16.19 7.177 28.73
3 4 16.19 7.177 28.73 33.941 6.9 33.721 18.369 7.476 23.316
3 4 16.19 7.177 28.73 18.369 7.476 23.316 4.628 7.094 29.784
3 4 4.628 7.094 29.784 18.369 7.476 23.316 7.5 7.5 20

Should be resoled in a way that there is no overlap with the net.

* I feel that all these:

2 110 43.015 4.347 63.593 33.029 22.72 53.856
2 110 33.029 22.72 53.856 33.194 5.663 40.739
2 110 32.245 23.506 52.853 21.178 38.364 46.359
2 110 21.178 38.364 46.359 14.684 23.506 35.292
2 110 33.184 23.506 55.119 29.951 38.364 67.537
2 110 29.951 38.364 67.537 33.184 23.506 79.955

should be edges.

* I agree that it should be split in half and mirrored

Takeshi Takahashi [RainbowDolphin]

posted a vote of Hold.

2024-04-30 03:35:28

Rework in progress...

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2024-04-30 05:24:12

Split in half and corrected penetration, etc.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-04-30 11:56:17

* Missing edge:

2 1 -33.205 4.347 -95.164 -33.489 4.347 -87.814

* Missing conds (but you should run Unificator first):

5 14 -32.366 4.347 -96.143 -33.205 4.347 -95.164 -36.387 -2.5 -95.63 -33.029 22.72 -81.218
5 14 -43.113 4.347 -70.196 -43.015 4.347 -71.481 -45.794 -2.069 -67.914 -33.029 22.72 -81.218

* Should IMHO be edges:

5 25 -27.75 48.9 -67.537 -23.704 48.9 -67.537 -20.751 61.4 -73.162 -24.919 61.4 -61.912
5 25 -10.285 53.855 -42.706 -8.737 53.855 -46.445 -16.888 41.801 -43.853 -3.068 41.5 -42.717
5 25 -16.761 48.9 -84.298 -19.622 48.9 -87.159 -10.696 61.4 -86.188 -21.598 61.4 -81.18
5 25 -19.622 48.9 -47.915 -16.761 48.9 -50.776 -13.643 61.4 -45.939 -18.651 61.4 -56.841
5 25 -43.015 4.347 -71.481 -33.205 4.347 -95.163 -44.024 -2.5 -80.771 -38.018 4.347 -76.879
5 25 -21.092 53.855 -58.8 -24.831 53.855 -57.252 -28.689 41.801 -62.731 -19.72 41.5 -52.156
5 25 -8.737 53.855 -88.629 -10.285 53.855 -92.368 -4.806 41.801 -96.226 -15.381 41.5 -87.257
5 25 -21.092 53.855 -76.274 -24.831 53.855 -77.822 -24.82 41.5 -70.605 -23.684 41.801 -84.425

Willy Tschager [Holly-Wood]

made the following comment.

2025-02-22 09:21:31

Bump!

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2025-03-04 14:53:33

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-04-28 06:40:58

Rene Rechthaler [Blechtaler]

posted a vote of Certify.
