Official File parts/15103.dat
Part Attributes:
File Header:

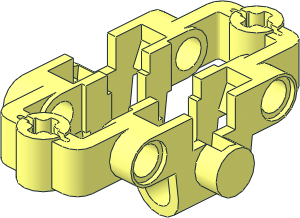

0 ~Motor Inertia Flywheel 4 x 6 x 2 Housing
0 Name: 15103.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Vehicle
0 !KEYWORDS 15336, Chima, Speedorz
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15103s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\15103s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\15103s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\15103s01.dat
1 16 0 -10 50 0 0 1 0 20 0 -1 0 0 axlehol5.dat
1 16 0 -10 -50 0 0 1 0 20 0 -1 0 0 axlehol5.dat
0 BFC INVERTNEXT
1 16 20 20 15.96 -6 0 0 0 0 6 0 -31.92 0 2-4cyli.dat
1 16 20 20 15.48 -10 0 0 0 0 10 0 -30.96 0 2-4cyli.dat
1 16 40 12 0 0 -1 0 9 0 0 0 0 9 4-4disc.dat
1 16 40 12 0 0 -1 0 9 0 0 0 0 9 4-4edge.dat
1 16 40 12 0 0 -3 0 9 0 0 0 0 9 4-4cyli.dat
3 16 30 19.378 3.9158 30 14.5 0 30 19.378 -3.9158
4 16 26 14.5 2.5 26 20 15.96 26 20 -15.96 26 14.5 -2.5
4 16 30 19.378 3.9158 30 19.378 -3.9158 30 20 -15.48 30 20 15.48
0 BFC INVERTNEXT
1 16 -20 20 -15.96 6 0 0 0 0 6 0 31.92 0 2-4cyli.dat
1 16 -20 20 -15.48 10 0 0 0 0 10 0 30.96 0 2-4cyli.dat
1 16 -40 12 0 0 1 0 9 0 0 0 0 -9 4-4disc.dat
1 16 -40 12 0 0 1 0 9 0 0 0 0 -9 4-4edge.dat
1 16 -40 12 0 0 3 0 9 0 0 0 0 -9 4-4cyli.dat
3 16 -30 14.5 0 -30 19.378 3.9158 -30 19.378 -3.9158
4 16 -26 14.5 -2.5 -26 20 -15.96 -26 20 15.96 -26 14.5 2.5
4 16 -30 19.378 -3.9158 -30 19.378 3.9158 -30 20 15.48 -30 20 -15.48
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-05-09 23:05:01
2020-10-06 22:05:02
Not missing, but a bfc error.
Fixed by changing the subfile.
Existing certification-votes were deleted.
Fixed by changing the subfile.
Existing certification-votes were deleted.
Ah, OK I did only a visual inspection with LDDP and LDView and not in LDPE, so I didn't realize that it was a BFC-error instead of a missing triangle. :-)
Fixed a few issues around the locker plate.
2023-09-05 13:00:56
2024-04-14 11:54:13
2024-04-27 07:36:03
2024-04-28 11:50:15
Release 2024-03
