File Detail parts/15118.dat

Official File parts/15118.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

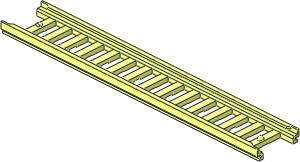

0 Ladder  2.6 x 16
0 Name: 15118.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15118s05.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\15118s05.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15118s02.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2013-09-22 08:05:04

This is just a quick Mockup from 4207. I'll rework it asap.

Michael Heidemann [mikeheide]

posted a vote of Hold.

2013-09-22 09:25:02

So it should not be released in this shape :)

Max Martin Richter [MMR1988]

posted a vote of Hold.

2013-09-22 09:50:02

Yes, that's true ;-)

Magnus Forsberg [MagFors]

made the following comment.

2013-09-22 10:10:02

Are you also making 11299? It's the same ladder, but with handrails.

Max Martin Richter [MMR1988]

posted a vote of Hold.

2013-09-22 10:45:02

I don't own both parts. The version without handrails is an easy task, because I can use the old ladder for all measures.
11299 would be possible by using the LDD content.
I have somewhere in my mind, that you collects the one and other fire brigade set, so if you have this part, feel free to build it. I try to upload 15118 in the next hours, so you can use the content of this file, if you want.

Max Martin Richter [MMR1988]

posted a vote of Hold.

2013-09-22 11:50:03

I think, I have to rework 4207, too. The measurements aren't right at the old part :-( what to do now? If I upload it, with new measures, downwards compatibility isn't possible.

Steffen [Steffen]

made the following comment.

2013-09-22 12:40:03

geometry errors in official parts always are a difficult problem.

if we should decide to keep downwards compatibility in such a case,
the current part XXXX.dat needs to be moved-to XXXXa.dat,
and that file needs to be obsoletized, and a new XXXXb.dat
needs to be issued, with the corrected geometry.

In the long run, this will clutter our library with plenty
of obsoletized, geometry-broken files,
in addition to the corrected ones.

IMHO it is very difficult to decide if that's the way to go.

The longer I think over this, I think that it would be better
to simply fix the geometry directly in the affected file.

Hmmm........

Santeri Piippo [arezey]

made the following comment.

2013-09-22 13:45:02

I'd suggest a ~Moved to file with offsets.

Magnus Forsberg [MagFors]

made the following comment.

2013-09-22 16:50:04

I'm intrigued, what is your major issues with 4207?

Michael Heidemann [mikeheide]

made the following comment.

2013-09-22 17:40:06

I like to know that too!

Max Martin Richter [MMR1988]

submitted a new version of the part.

2013-09-22 21:55:03

You can easily compare both parts now.
I did the measures on the old one, cause I don't own the new ones.
I'm totally unsure if the step order is correct. Please check with a real part, I will change it then, if necessary.

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2013-10-21 22:10:03

Holding for overlapping quads.

I too don't have this new part, but I think something is wrong here.
Three of 4207, stacked on top of each other, should make 24 ldu high.
This new one doesn't stack to the same height.

IMO the difference isn't big enough to force a remake of the old ladder.
I would accept it, if this part was adapted to fit the old ladder 4207.

Max Martin Richter [MMR1988]

made the following comment.

2013-10-22 07:25:02

That's the problem neither the new nor the old part makes a 24 LDU high, when 3 of them are stacked together. (I don't have the parts by hand now, but my mind says, that the old ladder elements are modelled 0.333 mm to thick.) In my eyes this is enough to force a remake of the old one (btw: the subparts from the new ladder could be used there, so it's not a big task to recreate it.)

Max Martin Richter [MMR1988]

submitted a new version of the part.

2013-11-03 17:00:05

Fixed overlapping quad problem...

Existing certification-votes were deleted.

Max Martin Richter [MMR1988]

submitted a new version of the part.

2013-11-03 17:00:08

Magnus Forsberg [MagFors]

posted a vote of Hold.

2015-05-17 15:00:00

The version in LDD dont have these full bumps, on first and last step, but is more similar to 11299.
The long beams should have ends like 11299 and 87913. A short entry cut-out, for easy assembly.

Max Martin Richter [MMR1988]

made the following comment.

2015-05-17 17:05:00

I'll see, what I can do here.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-04-24 08:35:02

I think there might be two versions of this new 16L ladder, like there are two versions of the 14L , 4207a and 4207b
One with full bumps and no cut-outs like the old 4207a
And one with half bumps and cut-outs like the ladder with handle rails, 12299

OTOH, inventories of sets with this 16L ladder show that they sometimes included a 4207b instead.
I haven't found any image of the 16L ladder without the cut-outs.

Max Martin Richter [MMR1988]

submitted a new version of the part.

2022-04-05 16:55:01

Now with the correct number.

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2022-04-06 06:25:02

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2023-05-23 21:30:24

Orion Pobursky [OrionP]

posted a vote of Admin Review.
