File Detail parts/15424.dat

Official File parts/15424.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

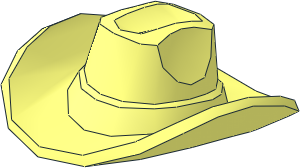

0 Minifig Hat Cowboy Type 2
0 Name: 15424.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2023-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Headwear

0 !HISTORY 2014-05-16 {LEGO Digital Designer} Original part shape
0 !HISTORY 2021-09-22 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-03-05 [OrionP] Official Update 2023-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15424s01.dat
3 16 0 -17.205 -8.995 0 -5.087 -12.554 4.815 -4.971 -11.394
3 16 4.815 -4.971 -11.394 5.533 -16.387 -7.311 0 -17.205 -8.995
3 16 0 -5.087 -12.554 0 -17.205 -8.995 -4.815 -4.971 -11.394
3 16 -5.533 -16.387 -7.311 -4.815 -4.971 -11.394 0 -17.205 -8.995

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2021-09-22 22:05:02

Travis Cobbs [tcobbs]

made the following comment.

2021-09-22 23:20:01

I believe that the control points for many of the type 5 lines are incorrect. I could be wrong about this (which is why this is a no-vote instead of a hold). It could be that the saddle shape of the brim causes the conditionals to appear when they shouldn't, and there is no real solution. However, I don't think that this is the case. Looking primarily from the font or back, and then rotating the near brim up and down, you can see type 5 lines appearing on both the top and bottom of the sides of the brim at times when they shouldn't.

Mark Kennedy [mkennedy]

posted a vote of Certify.

2021-09-23 18:20:01

Magnus Forsberg [MagFors]

made the following comment.

2021-09-23 21:40:01

I've tried to get rid of most of the condlines showing up too soon. I couldn't find any that was wrong.
The cost is a lot more, and long triangles. Better, or should I go back?

[PTadmin]

edited the part header.

2022-01-14 02:25:02

Travis Cobbs [tcobbs]

made the following comment.

2022-01-15 19:25:01

The new geometry decreases the length of the extra conditionals. I consider this an improvement. For reference, I took snapshots illustrating what I was talking about with both the old and new geometry:

https://imgur.com/a/lFNJ3MS

Max Martin Richter [MMR1988]

posted a vote of Certify.

2022-01-21 21:45:01

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2023-02-27 05:07:36

Orion Pobursky [OrionP]

2023-03-05 04:46:50

Release 2023-01
