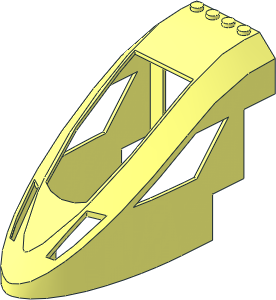

Train Front 6 x 14 x 7.333
File Header:
0 Train Front 6 x 14 x 7.333 0 Name: 15536.dat 0 Author: Ulrich Röder [UR] 0 !LDRAW_ORG Part UPDATE 2023-02 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Set 60051 0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape 0 !HISTORY 2020-02-01 [UR] File preparation for LDraw Parts Tracker 0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02
Show contents
0 // Main 1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-4x1.dat 1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stud3.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15536s01.dat 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\15536s01.dat 4 16 -40 24 -10 40 24 -10 38.493 4 -10 -38.493 4 -10 4 16 40 3.563 -38.041 40 0 -10 -40 0 -10 -40 3.563 -38.041 4 16 -40 3.563 -38.041 -37.263 16.791 -71.8 37.263 16.791 -71.8 40 3.563 -38.041 4 16 -38.499 8.38 -42.897 38.499 8.38 -42.897 37.263 21.011 -71.8 -37.263 21.011 -71.8 4 16 40 0 -10 40 0 10 -40 0 10 -40 0 -10 4 16 37.263 16.791 -71.8 -37.263 16.791 -71.8 -37.263 21.011 -71.8 37.263 21.011 -71.8 4 16 38.499 8.38 -42.897 -38.499 8.38 -42.897 -38.493 4 -10 38.493 4 -10 4 16 38.492 4 -6 40 24 -6 -40 24 -6 -38.492 4 -6 4 16 -40 24 10 -40 0 10 40 0 10 40 24 10 4 16 38.493 4 6 -38.493 4 6 -40 24 6 40 24 6 4 16 40 24 6 -40 24 6 -40 24 10 40 24 10 4 16 38.492 4 -6 -38.492 4 -6 -38.493 4 6 38.493 4 6 4 16 40 24 -10 -40 24 -10 -40 24 -6 40 24 -6 4 16 0 128.256 -230 15.231 128.256 -230 20 176 -230 -20 176 -230 3 16 -20 176 -230 -15.231 128.256 -230 0 128.256 -230 4 16 -20 176 -230 20 176 -230 16 176 -234 -16 176 -234 4 16 0 176 -250 -16 176 -250 -16 176 -246 16 176 -246 3 16 16 176 -246 16 176 -250 0 176 -250 4 16 -16 145.889 -246 16 145.889 -246 16 176 -246 -16 176 -246 4 16 -16 176 -234 16 176 -234 16 132.67 -234 -16 132.67 -234 4 16 -16 132.67 -234 16 132.67 -234 16 145.889 -246 -16 145.889 -246 0 // Edges 2 24 38.492 4 -6 -38.492 4 -6 2 24 40 24 6 -40 24 6 2 24 40 24 -6 -40 24 -6 2 24 40 24 -10 -40 24 -10 2 24 38.493 4 -10 -38.493 4 -10 2 24 38.493 4 6 -38.493 4 6 2 24 40 24 10 -40 24 10 2 24 -40 0 10 40 0 10 2 24 37.263 21.011 -71.8 -37.263 21.011 -71.8 2 24 -37.263 16.791 -71.8 37.263 16.791 -71.8 2 24 16 176 -234 -16 176 -234 2 24 -16 132.67 -234 16 132.67 -234 2 24 0 128.256 -230 15.231 128.256 -230 2 24 -15.231 128.256 -230 0 128.256 -230 2 24 -16 145.889 -246 16 145.889 -246 2 24 20 176 -230 -20 176 -230 2 24 16 176 -246 -16 176 -246 0 // Condlines 5 24 0 107.991 -203.514 0 103.306 -203.514 -13.42 106.777 -201.893 13.42 106.777 -201.893 5 24 -40 3.563 -38.041 40 3.563 -38.041 40 0 -10 -37.263 16.791 -71.8 5 24 0 163.341 -270 0 176 -270 3.67 176 -269.64 -3.67 176 -269.64 5 24 0 139.294 -250 0 163.341 -270 -3.67 162.796 -269.64 3.67 162.796 -269.64 5 24 0 164.696 -266.25 0 145.35 -250 7.234 163.564 -264.63 -7.234 163.564 -264.63 5 24 38.499 8.38 -42.897 -38.499 8.38 -42.897 -38.493 4 -10 37.263 21.011 -71.8 5 24 0 103.306 -203.514 0 139.294 -250 -3.54 138.009 -248.396 3.54 138.009 -248.396 5 24 40 0 -10 -40 0 -10 -40 3.563 -38.041 40 0 10 5 24 0 176 -266.25 0 164.696 -266.25 -7.234 163.564 -264.63 7.234 163.564 -264.63 5 24 0 128.256 -230 0 107.991 -203.514 -13.42 106.777 -201.893 13.42 106.777 -201.893
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Ulrich Röder [UR]
Part Header Editor
initially submitted the part.
2020-02-01 15:05:02
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2020-02-01 15:15:02
7.333!
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-02-01 15:35:01
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-02-03 18:00:02
modified subpart
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-02-06 09:05:02
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2020-02-16 18:05:01
Are you sure of the stud orientation?
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-07-12 21:15:02
no...didn' t care about...but now..

Thanks.. Magnus

Existing certification-votes were deleted.
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-07-14 14:00:02
Stud orientation changed 180 degrees...
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2020-07-14 15:55:02
Why not a stud group?
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-07-15 15:20:01
Stud group used

Existing certification-votes were deleted.
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2020-07-15 15:45:01
Height should be 7.333, not 7.3
Ulrich Röder [UR]
Part Header Editor
submitted a new version of the part.
2020-07-15 17:40:01
bringing back the lost "33"....

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2020-07-28 10:00:01
Some of this surface could be in the subfile:
4 16 0 128.256 -230 15.231 128.256 -230 20 176 -230 -20 176 -230
3 16 -20 176 -230 -15.231 128.256 -230 0 128.256 -230
4 16 0 176 -250 -16 176 -250 -16 176 -246 16 176 -246
3 16 16 176 -246 16 176 -250 0 176 -250
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2020-08-22 14:15:01
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2020-11-08 20:30:02
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2020-12-29 10:35:01
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2023-04-03 17:34:11
Orion Pobursky [OrionP]
Part Library Admin
2023-04-17 04:55:49
Release 2023-02
