File Detail parts/15626.dat

Official File parts/15626.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

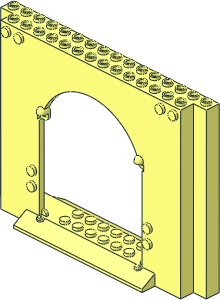

0 Panel  4 x 16 x 10 with Gate
0 Name: 15626.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Left door position: -76 92 -20
0 !HELP Right door position: 76 92 -20

0 BFC CERTIFY CCW

0 !HISTORY 2015-11-03 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-10-13 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\15626s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\15626s01.dat
0 // Primitives
1 16 -80 0 10 1 0 0 0 1 0 0 0 1 stug2-1x8.dat
1 16 80 0 10 1 0 0 0 1 0 0 0 1 stug2-1x8.dat
1 16 -80 0 -10 1 0 0 0 1 0 0 0 1 stug2-1x6.dat
1 16 60 0 -10 1 0 0 0 1 0 0 0 1 stug2-1x8.dat
1 16 -120 10 -20 0 0 1 1 0 0 0 1 0 stug-2x1.dat
1 16 120 10 -20 0 0 1 1 0 0 0 1 0 stug-2x1.dat
1 16 -90 180 -20 0 0 1 1 0 0 0 1 0 stug-1x2.dat
1 16 90 180 -20 0 0 1 1 0 0 0 1 0 stug-1x2.dat
1 16 0 224 10 1 0 0 0 1 0 0 0 1 stug-1x6.dat
1 16 0 224 -10 1 0 0 0 1 0 0 0 1 stug-1x6.dat
1 16 0 240 -10 0 0 140 0 -240 0 10 0 0 box3u5p.dat
0 BFC INVERTNEXT
1 16 0 224 -6 0 0 136 0 -220 0 10 0 0 box3u8p.dat
1 16 0 232 30 100 0 0 0 -2 6 0 0 10 box2-5.dat
1 16 0 238 -40 100 0 0 0 0 2 0 1 0 rect.dat
1 16 0 228 0 7 0 0 0 12 0 0 0 1 box3u8p.dat
1 16 0 232 20 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 0 232 -20 1 0 0 0 -2 0 0 0 1 stud4a.dat
0 BFC INVERTNEXT
1 16 0 232 20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 232 -20 6 0 0 0 -1 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 231 20 -6 0 0 0 -3 0 0 0 -6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 231 -20 6 0 0 0 -3 0 0 0 6 2-4cyli.dat
1 16 0 228 20 6 0 0 0 1 0 0 0 -6 2-4edge.dat
1 16 0 228 -20 6 0 0 0 1 0 0 0 6 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 231 20 0 0 -6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 231 -20 0 0 -6 0 -3 0 -6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 231 20 0 0 6 0 -3 0 6 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 231 -20 0 0 6 0 -3 0 -6 0 0 1-4cyls.dat
1 16 0 228 20 6 0 0 0 1 3 0 0 6 2-4edge.dat
1 16 0 228 -20 6 0 0 0 1 3 0 0 -6 2-4edge.dat
1 16 0 232 20 8 0 0 0 -4 0 0 0 -8 2-4cyli.dat
1 16 0 232 -20 8 0 0 0 -4 0 0 0 8 2-4cyli.dat
1 16 0 228 20 8 0 0 0 1 0 0 0 -8 2-4edge.dat
1 16 0 228 -20 8 0 0 0 1 0 0 0 8 2-4edge.dat
1 16 0 232 20 0 0 -8 0 -4 0 8 0 0 1-4cyls.dat
1 16 0 232 -20 0 0 -8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 0 232 20 0 0 8 0 -4 0 8 0 0 1-4cyls.dat
1 16 0 232 -20 0 0 8 0 -4 0 -8 0 0 1-4cyls.dat
1 16 0 228 20 8 0 0 0 1 4 0 0 8 2-4edge.dat
1 16 0 228 -20 8 0 0 0 1 4 0 0 -8 2-4edge.dat
1 16 0 238 36 19 0 0 0 0 2 0 1 0 rect.dat
1 16 0 238 -36 19 0 0 0 0 2 0 -1 0 rect.dat
1 16 0 232 28 0 0 -19 -4 -1 0 -8 0 0 rect1.dat
1 16 0 232 -28 0 0 -19 -4 -1 0 8 0 0 rect1.dat
1 16 0 114 -16 136 0 0 0 0 -110 0 1 0 recte3.dat
1 16 0 114 20 156 0 0 0 0 -110 0 1 0 recte3.dat
1 16 0 120 20 160 0 0 0 0 -120 0 1 0 recte3.dat
0 // Faces
4 16 160 0 20 -160 0 20 -140 0 0 140 0 0
4 16 160 0 20 156 4 20 -156 4 20 -160 0 20
4 16 -73 224 -12.5 -71 224 -20 71 224 -20 73 224 -12.5
4 16 -71 224 -20 -70.5457 225.3555 -22.2593 70.5457 225.3555 -22.2593 71 224 -20
4 16 -70.5457 225.3555 -22.2593 -70.593 225.5 -22.5 70.593 225.5 -22.5 70.5457 225.3555 -22.2593
4 16 -70.593 225.5 -22.5 -71.7574 226.5456 -24.2426 71.7574 226.5456 -24.2426 70.593 225.5 -22.5
4 16 -71.7574 226.5456 -24.2426 -73.7038 227.326 -25.5434 73.7038 227.326 -25.5434 71.7574 226.5456 -24.2426
4 16 -73.7038 227.326 -25.5434 -76 227.6 -26 76 227.6 -26 73.7038 227.326 -25.5434
4 16 -76 227.6 -26 -100 236 -40 100 236 -40 76 227.6 -26
4 16 73 224 -12.5 100 224 20 -100 224 20 -73 224 -12.5
4 16 -100 240 40 100 240 40 19 240 36 -19 240 36
4 16 -100 240 -40 -19 240 -36 19 240 -36 100 240 -40
4 16 -59 228 20 59 228 20 59 228 -20 -59 228 -20
3 16 -136 4 -16 136 4 -16 0 36 -16
4 16 -156 4 20 156 4 20 136 4 4 -136 4 4
0 // Edges
2 24 -71 224 -20 71 224 -20
0 // Patternable area
0 // Primitives
1 16 0 120 -20 0 0 80 -80 0 0 0 1 0 48\1-6ndis.dat
1 16 0 120 -20 0 0 -80 -80 0 0 0 1 0 48\1-6ndis.dat
1 16 -76 90 -20 -6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 76 90 -20 6 0 0 0 0 -6 0 1 0 1-4ndis.dat
0 // Faces
3 16 -100 224 -20 -140 240 -20 -100 240 -20
3 16 140 240 -20 100 224 -20 100 240 -20
4 16 -100 224 -20 -81 224 -20 -80 102 -20 -82.5 102 -20
4 16 100 224 -20 82.5 102 -20 80 102 -20 81 224 -20
3 16 -80 102 -20 -81 224 -20 -80 224 -20
3 16 80 102 -20 80 224 -20 81 224 -20
4 16 -140 0 -20 -140 240 -20 -100 224 -20 -82.5 102 -20
3 16 -140 0 -20 -82.5 102 -20 -82.5 92 -20
3 16 -82 90 -20 -82.5 92 -20 -82 92 -20
4 16 -140 0 -20 -82.5 92 -20 -82 90 -20 -82 84 -20
3 16 -140 0 -20 -82 84 -20 -80 40 -20
3 16 -140 0 -20 -80 40 -20 0 40 -20
3 16 -140 0 -20 0 40 -20 140 0 -20
3 16 140 0 -20 0 40 -20 80 40 -20
3 16 140 0 -20 80 40 -20 82 84 -20
4 16 140 0 -20 82 84 -20 82 90 -20 82.5 92 -20
3 16 82 90 -20 82 92 -20 82.5 92 -20
3 16 140 0 -20 82.5 92 -20 82.5 102 -20
4 16 140 0 -20 82.5 102 -20 100 224 -20 140 240 -20
3 16 -80 40 -20 -82 84 -20 -76 84 -20
3 16 80 40 -20 76 84 -20 82 84 -20
3 16 -80 40 -20 -76 84 -20 -73.7038 84.4566 -20
3 16 80 40 -20 73.7038 84.4566 -20 76 84 -20
4 16 -80 40 -20 -73.7038 84.4566 -20 -72.0315 85.5742 -20 -69.28 80 -20
4 16 80 40 -20 69.28 80 -20 72.0315 85.5742 -20 73.7038 84.4566 -20

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2020-10-28 22:35:01

Max Martin Richter [MMR1988]

posted a vote of Hold.

2020-10-29 20:10:01

This box must be bfc inversed (line 30):
1 16 0 224 -6 0 0 136 0 -220 0 10 0 0 box3u8p.dat

Massimo Maso [Sirio]

submitted a new version of the part.

2020-11-01 09:25:01

Max Martin Richter [MMR1988]

posted a vote of Certify.

2020-11-01 14:25:02

Ulrich Röder [UR]

posted a vote of Certify.

2020-11-01 16:10:02

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-04-19 15:00:01

Overlap:

4 3 -73.5 228 -17.5 73.5 228 -17.5 73.5 228 -20 -73.5 228 -20
4 3 -73.5 228 -20 73.5 228 -20 73.5 229.25 -22.5 -73.5 229.25 -22.5

Check also with BFC on and NO edges:

2 5 -72.0117 85.5342 -20 -71.7574 85.7574 -20

Massimo Maso [Sirio]

submitted a new version of the part.

2021-04-19 22:15:02

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-04-20 06:30:02

Still not fixed:

2 4 72.0117 85.5342 -20 71.7574 85.7574 -20
2 4 72.601 84.9132 -20 71.7574 85.7574 -20

Massimo Maso [Sirio]

submitted a new version of the part.

2021-04-20 20:00:01

I added the first edge line in the subpart. Are you sure used the updated one?
Meanwhile I saw that there was a gap / intersection in that area and I fixed it in this new version (I think the second line you indicated referred to this).

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

made the following comment.

2021-04-20 21:00:01

Please don't use a capital X in the dimension description.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-04-21 13:10:01

Yes, I was referring to that gap. So you eliminate the tang prim, which I was fine with and added this triangle:

3 16 72.0117 85.5342 -20 71.7574 85.7574 -20 73.7038 84.4566 -20

Since there is no tang anymore why didn't you merge 72.0117 85.5342 -20 with the sphere right away?

However:

2 24 -72.0117 85.5342 -20 -73.7038 84.4566 -20

is wrong (holding for that) the correct edge is:

2 3 -73.7038 84.4566 -20 -71.7574 85.7574 -20

Why did you eliminate the tang?

Massimo Maso [Sirio]

submitted a new version of the part.

2021-04-21 22:10:01

Recalculated intersection and updated description.

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2021-04-22 06:20:01

Vincent Messenet [Cheenzo]

posted a vote of Certify.

2022-12-12 10:20:01

Orion Pobursky [OrionP]

posted a vote of Admin Review.
