File Detail parts/165395fc01.dat

Download Download zip file View patterns/composites/shortcuts View sticker sheet parts

Official File parts/165395fc01.dat

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

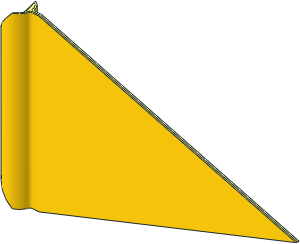

Sticker 1.4 x 5.3 Cutout Rhombus with Yellow Top (Formed)

File Header:

0 Sticker  1.4 x  5.3 Cutout Rhombus with Yellow Top (Formed)
0 Name: 165395fc01.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 6551stk01, Brickowl 930700, Flag, race car
0 !KEYWORDS Rebrickable 165395, Set 6551

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\165395fc01s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\165395fc01s01.dat
5 24 -2 9 0 -2 -9 0 -1.8478 -9.4877 -0.7654 -1.8478 9.4877 0.7654
5 24 -2.2452 -9 0 -2.2452 9 0 -2.0744 9.4877 -0.8593 -2.0744 9.4877 0.8593
2 24 -2.2452 9 0 -2 9 0
2 24 -2 -9 0 -2.2452 -9 0
2 24 48.75 0 0 3.75 14 0
2 24 3.75 -14 0 48.75 0 0
2 24 3.75 -14 0 2.4375 -14 0
2 24 2.4375 14 0 3.75 14 0

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Takeshi Takahashi [RainbowDolphin]

initially submitted the part.

2022-07-17 14:15:02

Magnus Forsberg [MagFors]

posted a vote of Hold.

2022-07-17 15:15:01

Why are all edge and condlines added here in this file, and not in the subfile?
The hidden "backside" surface is rather pointless. Could be removed. Like in 168365fc01.
Missing the edgeline between the two halves.
Some condlines should be edgelines.
And if you add edgelines around all edges, I think we should have edgelines on the sharp corners too.
Maybe you could make a soft, rounded inner corner?

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2022-08-07 16:05:01

Max Martin Richter [MMR1988]

posted a vote of Hold.

2023-01-03 13:25:01

Misses one cond, the second is optional:
5 24 -2 9 0 -2 -9 0 -1.8478 -9.4877 -0.7654 -1.8478 9.4877 0.7654
5 24 -2.2452 -9 0 -2.2452 9 0 -2.0744 9.4877 -0.8593 -2.0744 9.4877 0.8593

Due to the special usecase I would change the condline at the tip to an edge. And I would add these edges:
2 24 -2.2452 9 0 -2 9 0
2 24 -2 -9 0 -2.2452 -9 0

[PTadmin]

edited the part header.

2023-01-23 08:10:01

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2023-03-09 14:56:19

Corrected

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2023-06-24 12:55:42

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.
