File Detail parts/16965.dat

Download Download zip file

Official File parts/16965.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

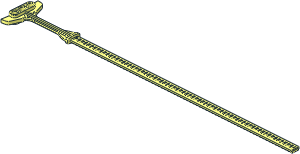

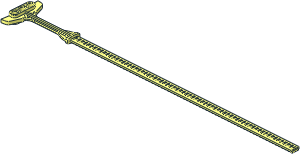

Ripcord Flexible with Handle Thick for Ninjago Airjitzu Flyers (70 Teeth)

File Header:

0 Ripcord Flexible with Handle Thick for Ninjago Airjitzu Flyers (70 Teeth)
0 Name: 16965.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Rack

0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-04-20 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

0 // Subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\16965s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\16965s01.dat
1 16 169.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 249.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 329.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 409.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 489.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 569.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
1 16 649.8375 0 0 1 0 0 0 1 0 0 0 1 s\16965s02.dat
0 // Primitives
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 9 0 0 0 117 0 1 0 0 0 0 1 axlehol8.dat
1 16 130 0 0 0 -1 0 0 0 7 3.25 0 0 rect2p.dat
0 // Chord
0 // Faces
4 16 130.9225 1.75 -5 130 1.75 -10 130 1.75 10 130.9225 1.75 10
4 16 210.9225 1.75 -5 208.7525 1.75 -5 208.7525 1.75 10 210.9225 1.75 10
4 16 290.9225 1.75 -5 288.7525 1.75 -5 288.7525 1.75 10 290.9225 1.75 10
4 16 370.9225 1.75 -5 368.7525 1.75 -5 368.7525 1.75 10 370.9225 1.75 10
4 16 450.9225 1.75 -5 448.7525 1.75 -5 448.7525 1.75 10 450.9225 1.75 10
4 16 530.9225 1.75 -5 528.7525 1.75 -5 528.7525 1.75 10 530.9225 1.75 10
4 16 610.9225 1.75 -5 608.7525 1.75 -5 608.7525 1.75 10 610.9225 1.75 10
3 16 130 1.75 -10 130.9225 1.75 -5 130.9225 1.75 -10
4 16 210.9225 1.75 -10 208.7525 1.75 -10 208.7525 1.75 -5 210.9225 1.75 -5
4 16 290.9225 1.75 -10 288.7525 1.75 -10 288.7525 1.75 -5 290.9225 1.75 -5
4 16 370.9225 1.75 -10 368.7525 1.75 -10 368.7525 1.75 -5 370.9225 1.75 -5
4 16 450.9225 1.75 -10 448.7525 1.75 -10 448.7525 1.75 -5 450.9225 1.75 -5
4 16 530.9225 1.75 -10 528.7525 1.75 -10 528.7525 1.75 -5 530.9225 1.75 -5
4 16 610.9225 1.75 -10 608.7525 1.75 -10 608.7525 1.75 -5 610.9225 1.75 -5
4 16 688.7525 1.75 10 130 1.75 10 130 -1.75 10 689.088 -1.75 10
3 16 130 -1.755 9.994 132.3025 -1.75 6.1 132.3025 -1.75 10
4 16 130 -1.755 9.994 130 -1.75 -10 132.3025 -1.75 -2.35 132.3025 -1.75 6.1
3 16 132.3025 -1.75 -2.35 130 -1.75 -10 132.3025 -1.75 -10
4 16 207.3725 -1.75 10 207.3725 -1.75 6.1 212.3025 -1.75 6.1 212.3025 -1.75 10
4 16 287.3725 -1.75 10 287.3725 -1.75 6.1 292.3025 -1.75 6.1 292.3025 -1.75 10
4 16 367.3725 -1.75 10 367.3725 -1.75 6.1 372.3025 -1.75 6.1 372.3025 -1.75 10
4 16 447.3725 -1.75 10 447.3725 -1.75 6.1 452.3025 -1.75 6.1 452.3025 -1.75 10
4 16 527.3725 -1.75 10 527.3725 -1.75 6.1 532.3025 -1.75 6.1 532.3025 -1.75 10
4 16 607.3725 -1.75 10 607.3725 -1.75 6.1 612.3025 -1.75 6.1 612.3025 -1.75 10
3 16 687.3725 -1.75 10 687.372 -1.75 6.104 689.088 -1.75 10
4 16 207.3725 -1.75 6.1 207.3725 -1.75 -2.35 212.3025 -1.75 -2.35 212.3025 -1.75 6.1
4 16 287.3725 -1.75 6.1 287.3725 -1.75 -2.35 292.3025 -1.75 -2.35 292.3025 -1.75 6.1
4 16 367.3725 -1.75 6.1 367.3725 -1.75 -2.35 372.3025 -1.75 -2.35 372.3025 -1.75 6.1
4 16 447.3725 -1.75 6.1 447.3725 -1.75 -2.35 452.3025 -1.75 -2.35 452.3025 -1.75 6.1
4 16 527.3725 -1.75 6.1 527.3725 -1.75 -2.35 532.3025 -1.75 -2.35 532.3025 -1.75 6.1
4 16 607.3725 -1.75 6.1 607.3725 -1.75 -2.35 612.3025 -1.75 -2.35 612.3025 -1.75 6.1
4 16 687.372 -1.75 6.104 687.372 -1.75 -2.354 689.088 -1.75 -10 689.088 -1.75 10
4 16 207.3725 -1.75 -2.35 207.3725 -1.75 -10 212.3025 -1.75 -10 212.3025 -1.75 -2.35
4 16 287.3725 -1.75 -2.35 287.3725 -1.75 -10 292.3025 -1.75 -10 292.3025 -1.75 -2.35
4 16 367.3725 -1.75 -2.35 367.3725 -1.75 -10 372.3025 -1.75 -10 372.3025 -1.75 -2.35
4 16 447.3725 -1.75 -2.35 447.3725 -1.75 -10 452.3025 -1.75 -10 452.3025 -1.75 -2.35
4 16 527.3725 -1.75 -2.35 527.3725 -1.75 -10 532.3025 -1.75 -10 532.3025 -1.75 -2.35
4 16 607.3725 -1.75 -2.35 607.3725 -1.75 -10 612.3025 -1.75 -10 612.3025 -1.75 -2.35
3 16 687.372 -1.75 -2.354 687.3725 -1.75 -10 689.088 -1.75 -10
4 16 130 -1.75 -10 130 1.75 -10 688.7525 1.75 -10 689.088 -1.75 -10
3 16 688.7525 1.75 10 689.088 -1.75 10 689.088 .962 10
3 16 689.088 -1.75 -10 688.7525 1.75 -10 689.088 .962 -10
3 16 686.998 6.45 -5 686.998 6.45 10 688.7525 1.75 -5
3 16 688.7525 1.75 -5 686.998 6.45 10 688.7525 1.75 10
4 16 688.7525 1.75 -10 688.7525 1.75 10 689.088 .962 10 689.088 .962 -10
4 16 689.088 .962 -10 689.088 .962 10 689.088 -1.75 10 689.088 -1.75 -10
0 // Edges
2 24 689.088 .962 10 689.088 .962 -10
2 24 682.958 1.75 10 688.7525 1.75 10
2 24 688.7525 1.75 10 686.998 6.45 10
2 24 686.998 6.45 -5 688.7525 1.75 -5
2 24 130 1.75 10 130 -1.755 9.994
2 24 688.7525 1.75 10 130 1.75 10
2 24 689.088 -1.75 10 689.088 .962 10
2 24 130 -1.755 9.994 689.088 -1.75 10
2 24 689.088 .962 10 688.7525 1.75 10
2 24 689.088 -1.75 -10 130 -1.75 -10
2 24 689.088 .962 -10 689.088 -1.75 -10
2 24 688.7525 1.75 -10 689.088 .962 -10
2 24 130 -1.75 -10 130 1.75 -10
2 24 130 1.75 -10 688.7525 1.75 -10
2 24 688.7525 1.75 10 688.7525 1.75 -10
2 24 130 1.75 -10 130 1.75 10
2 24 689.088 -1.75 10 689.088 -1.75 -10
2 24 130 -1.755 9.994 130 -1.75 -10
2 24 688.7525 1.75 -5 688.7525 1.75 10
