File Detail parts/1762.dat

Official File parts/1762.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

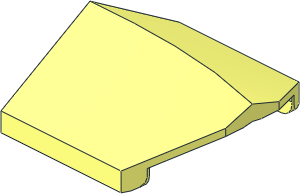

0 Slope Brick 31  2 x  2 Double, Curved
0 Name: 1762.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03

Show contents

0 // Bottom
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\1762s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\1762s01.dat

4 16 -16 0 16 -16 0 -16 -20 0 -20 -20 0 20
4 16 0 0 16 0 0 -16 -4 0 -16 -4 0 16
4 16 -4 -3 -16 -4 -3 16 -4 0 16 -4 0 -16
3 16 -4 -3 16 -4 -3 -16 -4 -12.4623 0
3 16 -16 -12.4623 0 -16 -3 -16 -16 -3 16
4 16 -16 0 -16 -16 0 16 -16 -3 16 -16 -3 -16
1 16 0 -1.5 0 0 -1 0 0 0 1.5 16 0 0 rect3.dat
3 16 0 -3 -16 0 -3 16 0 -11.9705 0
4 16 -20 -4 -20 -20 -4 20 -20 0 20 -20 0 -20
3 16 -20 -4 -20 -20 -16 0 -20 -4 20
2 24 -20 0 20 -20 0 -20
1 16 -10 0 0 -6 0 0 0 1 0 0 0 16 recte4.dat
2 24 -10 -16 0 -20 -16 0
2 24 -.865 -15.5442 0 -10 -16 0
2 24 8.116 -14.35 0 -.865 -15.5442 0
2 24 16.5 -12 0 8.116 -14.35 0
2 24 -4 -12.4623 0 -16 -12.4623 0
2 24 16.5 -8.8 0 0 -11.9705 0

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2022-06-23 14:00:02

Mark Kennedy [mkennedy]

made the following comment.

2022-06-24 10:20:01

Might be able to use the box3u4p.dat primitive in a few places.

Magnus Forsberg [MagFors]

made the following comment.

2022-07-03 08:40:01

I've seen a review of this part. It should fit on top of a 2x2 curved slope, 15068. But I can't find it again.
There is thin collision between these parts.

Max Martin Richter [MMR1988]

made the following comment.

2022-12-10 20:00:02

bump?

Franklin W. Cain [fwcain]

posted a vote of Certify.

2022-12-10 20:10:01

Max Martin Richter [MMR1988]

posted a vote of Hold.

2022-12-10 21:05:01

This was not meant for getting cert votes. More for solving the intersection issue mentioned by Magnus.

Franklin W. Cain [fwcain]

made the following comment.

2022-12-11 04:30:01

Gerald Lasser [GeraldLasser]

made the following comment.

2023-01-12 14:55:02

I will move the lower section of the overhang up by 0.1 LDU

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-04-04 09:29:33

corrected compatibility with 15068

Massimo Maso [Sirio]

made the following comment.

2024-04-04 17:53:04

It would be better to rotate it by 180 degrees around the vertical axis so that the beveled tip is normally visible in icons. Otherwise it looks too similar to 3300.

Gerald Lasser [GeraldLasser]

made the following comment.

2024-04-04 22:11:39

I purposly oriented it that way as it is to fit its roughly skinned cousin 3300

there is also 3049, which is using a different orientation...

Looks like there is no clear line...

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-04-05 10:46:03

* I do not have a strong opinion as long as it is oriented along with:

https://library.ldraw.org/official/5910
https://library.ldraw.org/official/5902

but will probably agree with Rene to rotate it 180.

* However this is higher ans the Slope Bricks 33 and goes along with:

https://library.ldraw.org/official/10089
https://library.ldraw.org/official/12970

so it is a Slope Brick _31_ and NOT _33_

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-04-13 21:44:48

rotated 180 deg for better visibility

Gerald Lasser [GeraldLasser]

edited the part header.

2024-04-13 21:45:15

Header Edits

description:
Slope Brick 33 2 x 2 Double, Curved
to
Slope Brick 31 2 x 2 Double, Curved

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-04-14 10:46:16
