File Detail parts/1871.dat

Official File parts/1871.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

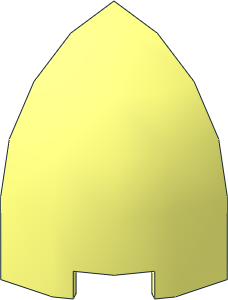

Brick 1 x 1 x 1.333 Round Quarter Dome with Curved Top

File Header:

0 Brick  1 x  1 x  1.333 Round Quarter Dome with Curved Top
0 Name: 1871.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03

Show contents

0 // Subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\1871s01.dat
0 // Patternable faces
3 16 0 0 0 0 1.522 -7.654 2.9292 1.522 -7.0715
3 16 0 0 0 2.9292 1.522 -7.0715 5.4121 1.522 -5.4121
3 16 0 0 0 5.4121 1.522 -5.4121 7.0715 1.522 -2.9292
3 16 0 0 0 7.0715 1.522 -2.9292 7.654 1.522 0
4 16 5.4121 5.858 -13.0658 2.9292 1.522 -7.0715 0 1.522 -7.654 0 5.858 -14.142
4 16 5.4121 5.858 -13.0658 10 5.858 -10 5.4121 1.522 -5.4121 2.9292 1.522 -7.0715
4 16 13.0658 5.858 -5.4121 7.0715 1.522 -2.9292 5.4121 1.522 -5.4121 10 5.858 -10
4 16 13.0658 5.858 -5.4121 14.142 5.858 0 7.654 1.522 0 7.0715 1.522 -2.9292
4 16 5.4121 5.858 -13.0658 0 5.858 -14.142 0 12.346 -18.478 7.0715 12.346 -17.0718
4 16 5.4121 5.858 -13.0658 7.0715 12.346 -17.0718 13.0658 12.346 -13.0658 10 5.858 -10
4 16 13.0658 5.858 -5.4121 10 5.858 -10 13.0658 12.346 -13.0658 17.0718 12.346 -7.0715
4 16 13.0658 5.858 -5.4121 17.0718 12.346 -7.0715 18.478 12.346 0 14.142 5.858 0
4 16 7.654 20 -18.478 7.0715 12.346 -17.0718 0 12.346 -18.478 0 20 -20
4 16 7.654 20 -18.478 14.142 20 -14.142 13.0658 12.346 -13.0658 7.0715 12.346 -17.0718
4 16 18.478 20 -7.654 17.0718 12.346 -7.0715 13.0658 12.346 -13.0658 14.142 20 -14.142
4 16 18.478 20 -7.654 20 20 0 18.478 12.346 0 17.0718 12.346 -7.0715
4 16 7.654 20 -18.478 0 20 -20 0 32 -20 7.654 32 -18.478
4 16 7.654 20 -18.478 7.654 32 -18.478 9.829 32 -17.025 9.829 28 -17.025
4 16 7.654 20 -18.478 9.829 28 -17.025 14.142 28 -14.142 14.142 20 -14.142
4 16 18.478 20 -7.654 14.142 20 -14.142 14.142 28 -14.142 17.025 28 -9.829
4 16 18.478 20 -7.654 17.025 28 -9.829 17.025 32 -9.829 18.478 32 -7.654
4 16 18.478 20 -7.654 18.478 32 -7.654 20 32 0 20 20 0

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2022-09-01 17:05:01

The primitive 1-8sphe could be replaced with four conical bands that could be more easily patterned.
About the inner zone I have no information, but I think it is empty.

Magnus Forsberg [MagFors]

made the following comment.

2022-09-01 19:30:01

The shape of the inner dome is correct. It's a quarter dome.

I've been thinking of the pattern issue to. I kind of want a hi-res surface to print on. But the flat sides has to match the normal res.
I made something in between on the Porsche fender bricks. A surface based on a 24-sided circle.

Massimo Maso [Sirio]

submitted a new version of the part.

2022-09-05 23:40:01

Inlined curved faces (cylindrical and spehrical) to avoid bleeding in high resolution; fixed the cutout in the new version.

I found the code in Rebrickable (there is 1871pr0001R and L for the patterned version). In Bricklink the code is 1284pb0001R and L.

Existing certification-votes were deleted.

Gerald Lasser [GeraldLasser]

made the following comment.

2022-09-08 21:35:01

What about this:

Remove the outer sphere from the s01 file so that the plain file can be used with prims
e.g.
1 16 0 20 0 0 0 20 0 -20 0 -20 0 0 1-8sphe.dat
1 1 0 20 0 0 0 20 -20 0 0 0 20 0 1-4chrd.dat
1 1 0 20 0 0 20 0 -20 0 0 0 0 -20 1-4chrd.dat

the patterend version can then be used with the current surface

Massimo Maso [Sirio]

made the following comment.

2022-09-09 00:02:31

Doing as you suggest, it stays the problem of the cylinder between sphere and cutout that would not pair with the rest.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2022-09-12 18:25:01

IMO this is good.

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2023-05-06 22:50:28

Orion Pobursky [OrionP]
