File Detail parts/18923.dat

Official File parts/18923.dat

Part Attributes:

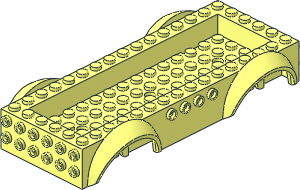

~Car Base 6 x 16 x 2 with 4 x 14 Recessed Centre with Mudguards without Axle Blocks

File Header:

0 ~Car Base  6 x 16 x  2 with  4 x 14 Recessed Centre with Mudguards without Axle Blocks
0 Name: 18923.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2021-03-19 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2022-05-15 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18923s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\18923s01.dat

1 16 0 24 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 24 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 24 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
1 16 0 28 0 0 0 -1 0 -5 0 -1 0 0 stud4f4n.dat
1 16 0 28 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat

1 16 0 0 -150 0 0 -1 0 1 0 1 0 0 stug-6x1.dat
1 16 -50 0 -70 0 0 -1 0 1 0 1 0 0 stug-1x7.dat
1 16 50 0 -70 0 0 -1 0 1 0 1 0 0 stug-1x7.dat
1 16 -50 0 70 0 0 -1 0 1 0 1 0 0 stug-1x7.dat
1 16 50 0 70 0 0 -1 0 1 0 1 0 0 stug-1x7.dat
1 16 0 0 150 0 0 -1 0 1 0 1 0 0 stug-6x1.dat
1 16 0 24 -80 0 0 -1 0 1 0 1 0 0 stug-4x4.dat
1 16 0 24 80 0 0 -1 0 1 0 1 0 0 stug-4x4.dat
1 16 0 24 0 0 0 -1 0 1 0 1 0 0 stug-4x4.dat
1 16 0 24 -130 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
1 16 0 24 130 0 0 -1 0 1 0 1 0 0 stug-4x1.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2022-05-17 20:50:02

Max Martin Richter [MMR1988]

posted a vote of Certify.

2022-06-09 20:35:01

Willy Tschager [Holly-Wood]

made the following comment.

2022-11-08 13:50:01

The title should reflect that is has only 3 holes, while:

https://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/68446.dat

has 5 holes

Magnus Forsberg [MagFors]

made the following comment.

2022-11-08 17:05:01

True, but the height is also different, 2 and 2.333, making them different enough.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2022-11-09 14:45:01

* Part has some serious problems with accuracy:

0 !LPE DISTANCE 24 -40.138 .06 140 40.138 .06 140
0 !LPE DISTANCE 24 -32.25 33.75 -79.675 -32.25 33.75 -120.075
0 !LPE DISTANCE 24 55.988 48 -156.325 55.988 48 156.325
0 !LPE DISTANCE 24 55.988 48 156.325 38.513 48 156.325
0 !LPE DISTANCE 24 55.356 3 156.325 38.513 3 156.325

1 47 0 48 0 0 0 1 0 1 0 -1 0 0 3035.dat
1 47 0 48 0 0 0 1 0 1 0 -1 0 0 3027.dat

Magnus Forsberg [MagFors]

made the following comment.

2022-11-09 17:50:01

No, I would say that it's very accurate to the real parts. They are often slightly conical, tapered and not perfectly parallell, like ldraw part are made.
Attaching a 6x16 plate to the bottom is never possible, since the non-removable axle block are not "in system".
Perhaps these two big parts, 18923 and 68446 should be tilded ~ , since they never exist without the axle blocks?

Remember the recent tipper bucket?
Non-removable, differently coloured, juniorized big parts.

Max Martin Richter [MMR1988]

posted a vote of Certify.

2022-11-23 06:55:01

No, Willy is right, but it is a subpart problem.

The top plane is a bit off. (0.06 LDU in y direction)

[PTadmin]

edited the part header.

2022-11-23 18:00:01

Magnus Forsberg [MagFors]

made the following comment.

2022-11-23 18:00:01

Extended description

Takeshi Takahashi [RainbowDolphin]
