Official File parts/18973p05.dat
Part Attributes:
Base Part: 18973.dat
File Header:

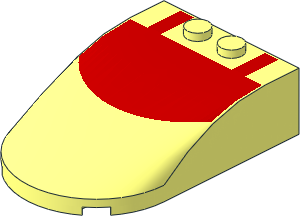

0 Windscreen 6 x 4 x 1.333 Curved with Red Roof Pattern
0 Name: 18973p05.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 917K, BrickLink 18973pb05, Pit Lane, Porsche
0 !KEYWORDS Rebrickable 18973pr0005, set 75876, Speed Champions
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18973s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18973p05s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\18973p05s01.dat
0 // Complementary faces
0 BFC NOCLIP
0 // Red face
3 4 -21 .0615 -11 0 .615 -20 21 .0615 -11
0 BFC CLIP
0 // Neutral face
4 16 -20 0 -10 -21 .0615 -11 21 .0615 -11 20 0 -10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-12-28 17:10:01
2019-12-30 15:45:02
The pattern on p02, the only one I have, was very wrong in position.
I don't want to Hold-vote these on a suspicion, but I want to make clear that the position might be very wrong too.
Could someone please check the position of the pattern?
I don't want to Hold-vote these on a suspicion, but I want to make clear that the position might be very wrong too.
Could someone please check the position of the pattern?
I added the note Needs work, in the description and inside the part, to try to unlock the situation.
As done for other parts, we could approve a partial version with the possibility of making it definitive in the future. Especially since any changes do not affect the coupling of the component with other pieces, but only the graphic aspect.
I eliminated also some useless vertex and joined some faces, based on the notes made.
I send to Chris a new version of the reference part, because I moved the conditional lines from the main part to the subpart as is being done elsewhere (43898, 65633).
This allows to reduce the dimensions of the patterned parts and the possibility of errors.
On this occasion I also made some small changes (cancellation of some conditiona lines) that were incorrect in LDPE.
some error indications in the printed parts were due to the conditional lines of the reference part which were in excess and had been copied as they were.
Existing certification-votes were deleted.
As done for other parts, we could approve a partial version with the possibility of making it definitive in the future. Especially since any changes do not affect the coupling of the component with other pieces, but only the graphic aspect.
I eliminated also some useless vertex and joined some faces, based on the notes made.
I send to Chris a new version of the reference part, because I moved the conditional lines from the main part to the subpart as is being done elsewhere (43898, 65633).
This allows to reduce the dimensions of the patterned parts and the possibility of errors.
On this occasion I also made some small changes (cancellation of some conditiona lines) that were incorrect in LDPE.
some error indications in the printed parts were due to the conditional lines of the reference part which were in excess and had been copied as they were.
Existing certification-votes were deleted.
* As the pattern is symetrical it should be split in half into a sub.
* line 203 : Concave quadrilateral
* line 208 : Concave quadrilateral
* You have to work on these:
2 3 25 6.011802 -53.3013 24.352 6.038856 -53.6208
2 3 35.3553 5.488572 -45.3553 35.1261 5.480334 -45.5564
* Rounding
* line 203 : Concave quadrilateral
* line 208 : Concave quadrilateral
* You have to work on these:
2 3 25 6.011802 -53.3013 24.352 6.038856 -53.6208
2 3 35.3553 5.488572 -45.3553 35.1261 5.480334 -45.5564
* Rounding
2023-07-24 19:42:47
* NOCLIP missing
2023-08-11 12:25:44
2023-08-12 18:46:53
2023-09-08 15:28:42
2023-10-10 02:50:45
2023-10-31 03:34:33
Release 2023-05
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
Surely there will be errors of realization, but at least at the beginning it is useless to check that all the triangles are correctly connected for 0.0001 if then it is necessary to move a line of 1 or more unit.
48 sided circle centre (0 10) radius 50
Lateral margin of 1.
Width of the stripes 8.
projected along y axis with Projector.exe
