File Detail parts/1942.dat

Official File parts/1942.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

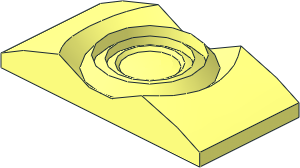

Slope Curved 4 x 2 x 0.667 Double with Fresnel Lens

File Header:

0 Slope Curved  4 x  2 x  0.667 Double with Fresnel Lens
0 Name: 1942.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Lighthouse

0 !HISTORY 2023-01-30 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-01-31 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

1 16 0 -8.5 0 8.84938 0 0 0 3.3 0 0 0 8.84938 bump5000.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\1942s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\1942s01.dat
1 16 30 -7.25 0 0 0 6 0 -1 2.25 3.5 0 0 rect2p.dat
4 16 24 -9.5 3.5 24 -9.5 -3.5 24 -0.3 -3.5 24 -0.3 3.5
4 16 36 -0.3 -3.5 36 -5 -3.5 36 -5 3.5 36 -0.3 3.5
4 16 36 -0.3 -6.5 36 -0.3 6.5 36 0 16 36 0 -16
4 16 24 -0.3 6.5 24 -0.3 -6.5 24 0 -16 24 0 16
1 16 22 0 0 0 0 -2 0 -1 0 -16 0 0 rect2p.dat
4 16 20 0 -16 20 -6 -8.3257 20 -6 8.3257 20 0 16
2 24 36 0 16 36 0 -16
4 16 36 0 -16 36 0 16 40 0 20 40 0 -20
1 16 40 -2.4 0 0 -1 0 0 0 2.4 -20 0 0 rect2p.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\1942s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\1942s01.dat
1 16 -30 -7.25 0 0 0 -6 0 -1 2.25 -3.5 0 0 rect2p.dat
4 16 -24 -0.3 -3.5 -24 -9.5 -3.5 -24 -9.5 3.5 -24 -0.3 3.5
4 16 -36 -5 3.5 -36 -5 -3.5 -36 -0.3 -3.5 -36 -0.3 3.5
4 16 -36 0 16 -36 -0.3 6.5 -36 -0.3 -6.5 -36 0 -16
4 16 -24 0 -16 -24 -0.3 -6.5 -24 -0.3 6.5 -24 0 16
1 16 -22 0 0 0 0 2 0 -1 0 16 0 0 rect2p.dat
4 16 -20 -6 8.3257 -20 -6 -8.3257 -20 0 -16 -20 0 16
2 24 -36 0 16 -36 0 -16
4 16 -40 0 20 -36 0 16 -36 0 -16 -40 0 -20
1 16 -40 -2.4 0 0 1 0 0 0 2.4 20 0 0 rect2p.dat
4 16 4.4525 -8 -20 -4.4525 -8 -20 -40 0 -20 40 0 -20
2 24 4.4525 -8 -20 -4.4525 -8 -20
2 24 40 0 -20 -40 0 -20
2 24 20 0 -16 -20 0 -16
4 16 -40 0 -20 -20 0 -16 20 0 -16 40 0 -20
4 16 14.1771 -6 -16 20 0 -16 -20 0 -16 -14.1771 -6 -16
2 24 14.1771 -6 -16 -14.1771 -6 -16
4 16 -40 0 20 -4.4525 -8 20 4.4525 -8 20 40 0 20
2 24 4.4525 -8 20 -4.4525 -8 20
2 24 40 0 20 -40 0 20
2 24 20 0 16 -20 0 16
4 16 20 0 16 -20 0 16 -40 0 20 40 0 20
4 16 -20 0 16 20 0 16 14.1771 -6 16 -14.1771 -6 16
4 16 20 -6 8.3257 -20 -6 8.3257 -14.1771 -6 16 14.1771 -6 16
2 24 14.1771 -6 16 -14.1771 -6 16
4 16 -14.1771 -6 -16 -20 -6 -8.3257 20 -6 -8.3257 14.1771 -6 -16
1 16 0 -6 0 0 0 20 0 -1 0 8.3257 0 0 rect2p.dat
5 24 -24.2917 -11.9343 0 -32.3231 -8.7221 0 -23.907 -12.0463 -4.2698 -23.907 -12.0463 4.2698
5 24 -32.3231 -8.7221 0 -40 -4.8 0 -31.7184 -9.1396 -10.1559 -31.7184 -9.1396 10.1559
5 24 -20 -8 0 -24.2917 -11.9343 0 -23.907 -12.0463 4.2698 -23.907 -12.0463 -4.2698
5 24 24.2917 -11.9343 0 32.3231 -8.7221 0 23.907 -12.0463 4.2698 23.907 -12.0463 -4.2698
5 24 20 -8 0 24.2917 -11.9343 0 23.907 -12.0463 -4.2698 23.907 -12.0463 4.2698
5 24 32.3231 -8.7221 0 40 -4.8 0 31.7184 -9.1396 10.1559 31.7184 -9.1396 -10.1559

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2023-01-31 12:55:02

Mark Kennedy [mkennedy]

made the following comment.

2023-02-02 18:11:30

Minor nitpick, but you got a T junction on the sides.
