File Detail parts/19734.dat

Official File parts/19734.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

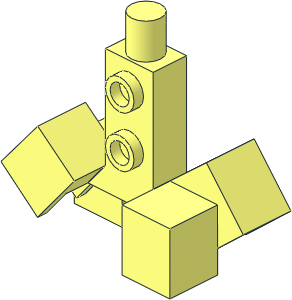

Minifig Torso with Two Studs on Two Opposite Sides and Cuboid Feet

File Header:

0 Minifig Torso with Two Studs on Two Opposite Sides and Cuboid Feet
0 Name: 19734.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Creeper, Minecraft

0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2021-01-31 [ejboer] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

1 16 0 -10 0 1 0 0 0 1 0 0 0 1 studa.dat
1 16 0 0 0 6 0 0 0 -10 0 0 0 6 4-4cyli.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat

1 16 0 10 -7 0 0 1 1 0 0 0 1 0 stud2.dat
1 16 0 30 -7 0 0 1 1 0 0 0 1 0 stud2.dat
1 16 0 10 7 0 0 -1 1 0 0 0 -1 0 stud2.dat
1 16 0 30 7 0 0 -1 1 0 0 0 -1 0 stud2.dat

1 16 0 40 0 -10 0 0 0 -40 0 0 0 7 box5-2p.dat
0 BFC INVERTNEXT
1 16 0 40 0 -6 0 0 0 -32 0 0 0 3.75 box5-2p.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\19734s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\19734s01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Evert-Jan Boer [ejboer]

initially submitted the part.

2020-10-09 09:15:01

Sylvain Sauvage [SLS]

made the following comment.

2020-10-10 15:00:01

What's happening with this file? No preview and not in the Zip download. It seems ok.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-11-01 21:00:01

I don't have this part, but I'm pretty sure something is wrong.

If I compair it to the ldd mesh the overall height is wrong. Or is the ldd mesh wrong?
The studs are misplaced and to tall. Can't be 1.125 ldu and should probably be on main grid, 10 and 30 ldu
The "legs" are misplaced. I think the bottom should be at y=64, not 64.5
Why is it called 34102 at Brickset?

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2021-01-15 09:50:02

Overall height of the part is 31.5mm, LDD mesh is a bit larger.
Did some adjustments to positions of the studs and bottom. I know LDraw parts are not 100% exactly the same size as the real parts, I am happy to adjust the overall height to 80LDU.
The top pin bothers me a bit, measured 5.8mm which is 14.5LDU, this is the same as in the LDD mesh. But when comparing it to a Minifig torso, there 12LDU is used.

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-01-26 18:20:01

I don't have this part.
Don't worry about the length of the pin. If you have the part, measure it.

In LDD, the feet have the same size as a 1x1 brick, and the body is longer than a 1x2 plate.
On this image, the corner of the tile on the body meets the corner of the foot.
https://cdn.shopify.com/s/files/1/2299/2295/products/image_877f84d2-cb3c-4274-839c-c02b40ca6c57_1400x.jpg?v=1590694752

In your file, the corner on the tile end up below the corner on the foot.

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2021-01-31 16:45:01

Modified body so plates/tiles line up. Rounded pin size to 14LDU

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-04-12 10:16:53

* Top pin has to be a stud:

1 16 0 0 0 1 0 0 0 3.5 0 0 0 1 stud.dat

* Studs have wrong orientation:

https://img.brickscout.com/47/38/b3/79/c5/36/42/5b/82/5a/9e/e7/dd/1c/7e/ec/279x279.png

Magnus Forsberg [MagFors]

made the following comment.

2024-04-12 14:56:50

... but please don't use a scaled stud.dat.
A scaled stud.dat might also create a scaled stud logo primitive.
Use a unscaled studa + a cyli.

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2024-04-30 17:40:45

Changes to top stud and side studs

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2024-04-30 17:58:07

Why the Lego Logo on top again? there is already one from the studa.dat
and the top cyli misses the base edges...
