Official File parts/21996.dat
Part Attributes:
File Header:

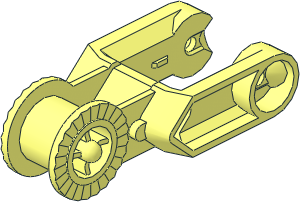

0 Duplo Arm 3L with Locking Ring
0 Name: 21996.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Crane
0 !HISTORY 2020-12-12 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-01-31 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 dhingepin2.dat
1 16 0 0 120 1 0 0 0 0 1 0 -1 0 dhingesocket.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 dhingepin2.dat
1 16 0 0 120 -1 0 0 0 0 1 0 -1 0 dhingesocket.dat
1 16 -15.8 0 0 0 31.6 0 0 0 19 19 0 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\21996s02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\21996s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\21996s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\21996s02.dat
4 16 -26.5 -10.9 104.871 -26.5 0 101 -26.5 -3 69 -26.5 -10.9 61
4 16 -26.5 10.9 61 -26.5 3 69 -26.5 0 101 -26.5 10.9 104.871
3 16 -26.5 0 70 -26.5 0 101 -26.5 3 69
3 16 -26.5 0 101 -26.5 0 70 -26.5 -3 69
4 16 -22.5 5.8667 114.1333 -22.5 -5.8667 114.1333 -22.5 -3 73 -22.5 3 73
4 16 26.5 -3 69 26.5 0 101 26.5 -10.9 104.871 26.5 -10.9 61
4 16 26.5 0 101 26.5 3 69 26.5 10.9 61 26.5 10.9 104.871
3 16 26.5 0 101 26.5 0 70 26.5 3 69
3 16 26.5 0 70 26.5 0 101 26.5 -3 69
4 16 22.5 -3 73 22.5 -5.8667 114.1333 22.5 5.8667 114.1333 22.5 3 73
1 16 0 2 28.30115 -15.8 0 0 0 -1 0 0 0 9.69885 rect2p.dat
1 16 0 9 45.5 0 0 15.8 7 -1 0 7.5 0 0 rect1.dat
1 16 0 16 56.09375 0 0 15.8 0 -1 0 3.09375 0 0 rect1.dat
4 16 -15.8 16 59.1875 -22.5 3 73 22.5 3 73 15.8 16 59.1875
1 16 0 -2 28.30115 15.8 0 0 0 1 0 0 0 9.69885 rect2p.dat
1 16 0 -9 45.5 0 0 -15.8 -7 1 0 7.5 0 0 rect1.dat
1 16 0 -16 56.09375 0 0 -15.8 0 1 0 3.09375 0 0 rect1.dat
4 16 22.5 -3 73 -22.5 -3 73 -15.8 -16 59.1875 15.8 -16 59.1875
1 16 0 0 73 0 0 22.5 -3 0 0 0 -1 0 rect.dat
1 16 21.5 0 100 0 1 -1 1.5 0 0 0 0 -1 rect.dat
1 16 21.5 0 90 1 1 0 0 0 -1.5 -1 0 0 rect.dat
2 24 22.5 -1.5 89 22.5 -1.5 101
2 24 22.5 1.5 89 22.5 1.5 101
4 16 22.5 1.5 89 20.5 1.5 91 20.5 1.5 99 22.5 1.5 101
1 16 20.5 0 95 0 1 0 0 0 1.5 4 0 0 rect2p.dat
4 16 22.5 -1.5 101 20.5 -1.5 99 20.5 -1.5 91 22.5 -1.5 89
1 16 -21.5 0 100 -1 -1 0 0 0 -1.5 1 0 0 rect.dat
1 16 -21.5 0 90 0 -1 1 1.5 0 0 0 0 1 rect.dat
2 24 -22.5 -1.5 89 -22.5 -1.5 101
2 24 -22.5 1.5 89 -22.5 1.5 101
4 16 -20.5 1.5 99 -20.5 1.5 91 -22.5 1.5 89 -22.5 1.5 101
1 16 -20.5 0 95 0 -1 0 0 0 1.5 -4 0 0 rect2p.dat
4 16 -20.5 -1.5 91 -20.5 -1.5 99 -22.5 -1.5 101 -22.5 -1.5 89
4 16 -22.5 -12 105.6061 -22.5 -12 63.4375 -22.5 -3 73 -22.5 -5.8667 114.1333
4 16 -22.5 5.8667 114.1333 -22.5 3 73 -22.5 12 63.4375 -22.5 12 105.6061
4 16 22.5 -3 73 22.5 -12 63.4375 22.5 -12 105.6061 22.5 -5.8667 114.1333
4 16 22.5 12 63.4375 22.5 3 73 22.5 5.8667 114.1333 22.5 12 105.6061
2 24 19.8 0 -28 19.8 0 -19
2 24 -19.8 0 -19 -19.8 0 -28
5 24 26.5 0 70 2 0 70 2 3 69 2 -3 69
5 24 -26.5 0 70 -2 0 70 -2 -3 69 -2 3 69
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-01-31 18:05:01
Missing an edge line between two teeth.
Added missing edge lines
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-02-19 20:15:01
2021-02-19 20:20:01
Rounding error on the last lines?
Yes... corrected
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2024-01-29 12:59:07
* 2 Conds missing:
5 24 26.5 0 70 2 0 70 2 3 69 2 -3 69
5 24 -26.5 0 70 -2 0 70 -2 -3 69 -2 3 69
* I will never get used to your technique to work-around prim-substitution gaps by cover the area with large quads and triangles but you should have the grace at least to solve T-junk like this:
3 4 15.8 17.0464 49.4912 15.8 19 51.5597 19.8 7.071 38.929
4 4 25 19 51.5597 25 7.071 38.929 19.8 7.071 38.929 15.8 19 51.5597
5 24 26.5 0 70 2 0 70 2 3 69 2 -3 69
5 24 -26.5 0 70 -2 0 70 -2 -3 69 -2 3 69
* I will never get used to your technique to work-around prim-substitution gaps by cover the area with large quads and triangles but you should have the grace at least to solve T-junk like this:
3 4 15.8 17.0464 49.4912 15.8 19 51.5597 19.8 7.071 38.929
4 4 25 19 51.5597 25 7.071 38.929 19.8 7.071 38.929 15.8 19 51.5597
1-Added missing condlines.
2-I don't see the point, part is not transparent. 1 surface less on each side...
2-I don't see the point, part is not transparent. 1 surface less on each side...
2024-10-14 09:35:09
answer in
https://library.ldraw.org/tracker/26016
https://library.ldraw.org/tracker/26016
2024-10-14 10:13:56
2024-10-14 11:03:04
2024-10-20 14:22:43
2024-10-27 01:48:32
Release 2024-09
