File Detail parts/22390.dat

Official File parts/22390.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

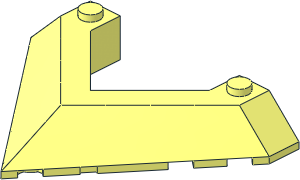

0 Wedge  6 x  8 Double with Cutout
0 Name: 22390.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2016-10-05 {LEGO Digital Designer} Original part shape
0 !HISTORY 2016-11-04 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\22390s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\22390s01.dat
2 24 0 24 -110 0 20 -110
2 24 0 0 -50 0 24 -50
2 24 0 10.1275 -90 0 5.06371 -80
2 24 0 15.1912 -100 0 10.1275 -90
2 24 0 5.06371 -80 0 0 -70
2 24 0 20 -110 0 15.1912 -100
2 24 0 15.737 -96.25 0 9.658 -83.713
2 24 0 2.5 -68.919 0 8.778 -81.75
2 24 0 24 -53.536 0 2.5 -53.536
1 16 0 20 -70 0 0 1 0 -1 0 1 0 0 stud4a.dat
1 16 0 20 -70 0 0 8 0 -12 0 8 0 0 4-4cyli.dat
1 16 0 8 -70 -5.65685 0 5.65685 0 -5.5 0 5.65685 0 5.65685 1-4cyli.dat
1 16 0 2.5 -70 -5.65685 0 5.65685 0 -1 0 5.65685 0 5.65685 1-4edge.dat
0 BFC INVERTNEXT
1 16 0 7 -70 -4.24264 0 4.24264 0 -4.5 0 4.24264 0 4.24264 1-4cyli.dat
1 16 0 2.5 -70 -4.24264 0 4.24264 0 -1 0 4.24264 0 4.24264 1-4edge.dat
1 16 0 8 -70 -5.65685 0 -5.65685 0 -5.5 0 -5.65685 0 5.65685 1-4cyls.dat
1 16 0 8 -70 5.65685 0 5.65685 0 -5.5 0 -5.65685 0 5.65685 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 20 -70 0 0 6 0 -13 0 6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 7 -70 -4.24264 0 -4.24264 0 -4.5 0 -4.24264 0 4.24264 1-4cyls.dat
0 BFC INVERTNEXT
1 16 0 7 -70 4.24264 0 4.24264 0 -4.5 0 -4.24264 0 4.24264 1-4cyls.dat
5 24 0 9.658 -83.713 0 24 -83.75 3.125 11.78 -84.587 -3.125 11.78 -84.587
5 24 0 24 -96.25 0 15.737 -96.25 3.125 17.102 -95.413 -3.125 17.102 -95.413
5 24 0 24 -81.75 0 8.778 -81.75 4.125 24 -82.855 -4.125 24 -82.855
1 16 50 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -50 0 0 1 0 0 0 1 0 0 0 1 stud.dat
