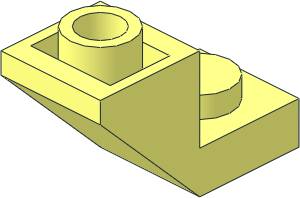

Slope Brick 45 2 x 1 Inverted with 0.667 Cutout
File Header:
0 Slope Brick 45 2 x 1 Inverted with 0.667 Cutout 0 Name: 2310.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Part UPDATE 2024-01 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2022-06-29 [GeraldLasser] Adapted from 32802 0 !HISTORY 2022-12-19 [MMR1988] Fixed Stud Orientation 0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01
Show contents
4 16 10 24 -10 6 24 -6 6 24 6 10 24 10 4 16 10 24 10 6 24 6 -6 24 6 -10 24 10 4 16 -10 24 10 -6 24 6 -6 24 -6 -10 24 -10 4 16 -10 24 -10 -6 24 -6 6 24 -6 10 24 -10 0 BFC INVERTNEXT 1 16 0 24 0 0 0 6 0 -4 0 -6 0 0 box5.dat 1 16 0 24 0 10 0 0 0 -8 0 0 0 10 box4-4a.dat 1 16 0 16 0 0 0 -1 0 1 0 1 0 0 stud.dat 1 16 0 2 -30 10 0 0 0 0 -2 0 1 0 rect.dat 1 16 0 14 -20 -10 0 0 0 -1 10 0 0 10 rect3.dat 1 16 0 8 -10 -10 0 0 0 0 -8 0 -1 0 rect.dat 4 16 10 0 -30 10 4 -30 10 16 -10 10 0 -10 3 16 10 16 -10 10 4 -30 10 24 -10 4 16 -10 16 -10 -10 4 -30 -10 0 -30 -10 0 -10 3 16 -10 16 -10 -10 24 -10 -10 4 -30 4 16 -8 0 -26 -8 0 -14 -10 0 -10 -10 0 -30 4 16 8 0 -26 -8 0 -26 -10 0 -30 10 0 -30 4 16 -8 0 -14 8 0 -14 10 0 -10 -10 0 -10 4 16 8 0 -14 8 0 -26 10 0 -30 10 0 -10 1 16 0 8 -14 0 0 -8 -8 0 0 0 1 0 rect.dat 1 16 0 2 -26 8 0 0 0 0 2 0 -1 0 rect.dat 1 16 0 10 -20 0 0 -8 6 1 0 6 0 0 rect2p.dat 4 16 8 0 -26 8 0 -14 8 16 -14 8 4 -26 4 16 -8 16 -14 -8 0 -14 -8 0 -26 -8 4 -26 2 24 -8 0 -14 -8 0 -26 2 24 8 0 -26 8 0 -14 2 24 10 0 -30 10 0 -10 2 24 -10 0 -30 -10 0 -10 1 16 0 1 -20 -1 0 0 0 3 0 0 0 -1 stud2s2e.dat 1 16 0 4 -20 0 0 -1 0 6 0 -1 0 0 stud2s2.dat 1 16 0 1 -20 0 0 -1 0 1.25 0 1 0 0 stud2a.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2022-06-30 20:45:01
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2022-06-30 21:55:01
Missing an edge line.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2022-07-01 12:40:01
added missing edge

Existing certification-votes were deleted.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
made the following comment.
2022-07-01 16:10:01
The dimensions in part name will be 2 x 1, not 2 x 10
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Hold.
2022-07-01 16:20:01
Imho, origin should match 3665.dat
[PTadmin]
Part Author
edited the part header.
2022-07-02 21:00:01
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2022-07-02 21:05:01
Philo is right, changed origin and corrected description.

Existing certification-votes were deleted.
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2022-07-03 06:40:01
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2022-08-02 07:40:01
Could use box2-5 primitive.
[PTadmin]
Part Author
edited the part header.
2022-08-02 11:25:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-09-09 15:00:01
Wrong stud orientation:

https://rebrickable.com/media/parts/photos/71/2310-71-d1438d86-772c-43de-9227-c910729579b2.jpg
Max Martin Richter [MMR1988]
Senior Part Reviewer
submitted a new version of the part.
2022-12-19 11:45:01
Fixed Stud Orientation

Existing certification-votes were deleted.
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2023-05-26 14:10:42
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2024-01-13 12:02:10
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-01-27 14:31:04
Orion Pobursky [OrionP]
Part Library Admin
2024-01-29 02:23:59
Release 2024-01
