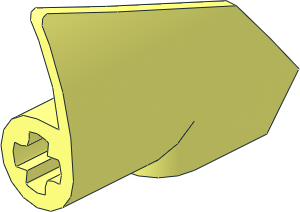

0 Technic Panel Fairing Smooth #7 (Thin Very Short)
0 Name: 2387.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
0 !HISTORY 2024-09-26 [jb70] subfiled to s\2387s01.dat
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2387s01.dat
4 16 9 9 20 9 10 38 9 0 46 9 0 20
4 16 6.365 -16.971 -10 8.336 -8.558 -10 8.336 -8.558 39.476 6.365 -16.971 33.062
4 16 3.121 -25.096 6.8172 3.121 -25.096 -10 6.365 -16.971 -10 6.365 -16.971 33.062
4 16 3.121 -25.096 -10 3.121 -25.096 6.8172 0.449 -29.69 -8.022 1.228 -28.351 -10
3 16 1.228 -28.351 -10 0.449 -29.69 -8.022 0.62 -29.396 -9.236
3 16 8.336 -8.558 -10 9 0 11 9 0 20
4 16 8.336 -8.558 -10 9 0 20 9 0 46 8.336 -8.558 39.476
3 16 8.336 -8.558 -10 9 0 -10 9 0 11
3 16 9 9 20 9 10 20 9 10 38
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
Jens Brühl,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
2 1 0 9 11 0 9 10
these are missing:
2 10 0 9 8 0 9 11
2 10 0 7 11 0 7 8
