File Detail parts/2393.dat

Official File parts/2393.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

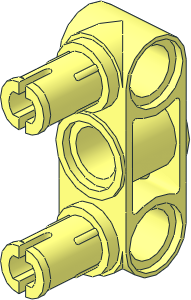

Technic Cross Block 1 x 3 (Pin/Pin/Pin) with 2 Pins

File Header:

0 Technic Cross Block  1 x  3 (Pin/Pin/Pin) with  2 Pins
0 Name: 2393.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09

Show contents

1 16 0 0 0 0 0 1 -1 0 0 0 -1 0 connhole.dat
1 16 0 20 -9 -9 0 0 0 0 9 0 9 0 1-4cyls.dat
1 16 0 20 -9 9 0 0 0 0 9 0 9 0 1-4cyls.dat
1 16 0 20 0 9 -1 0 0 0 9 -9 0 0 1-4edge.dat
1 16 0 20 0 -9 -1 0 0 0 9 -9 0 0 1-4edge.dat
1 16 0 20 -10 0 0 1 -1 0 0 0 1 0 connect7.dat
1 16 0 20 -9 8 0 0 0 0 8 0 1 0 4-4edge.dat
1 16 0 20 -9 8 0 0 0 0 8 0 -1 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 20 -9 2.82843 0 2.82843 -2.82843 0 2.82843 0 -1 0 1-4cyli.dat
1 16 0 20 -9 2.82843 0 2.82843 -2.82843 0 2.82843 0 1 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 0 20 -9 -2.82843 0 -2.82843 2.82843 0 -2.82843 0 -1 0 1-4cyli.dat
1 16 0 20 -9 -2.82843 0 -2.82843 2.82843 0 -2.82843 0 1 0 1-4edge.dat
1 16 0 20 0 0 1 0 0 0 1 -1 0 0 s\71710s02.dat
1 16 0 20 -9 9 0 0 0 0 9 0 1 0 2-4edge.dat
1 16 0 20 -9 9 0 0 0 0 9 0 1 0 2-4chrd.dat
1 16 0 22.8284 -9.5 2.8284 0 0 0 1 0 0 0 0.5 rect3.dat
1 16 0 17.1716 -9.5 -2.8284 0 0 0 -1 0 0 0 0.5 rect3.dat
1 16 0 -20 -9 -9 0 0 0 0 -9 0 9 0 1-4cyls.dat
1 16 0 -20 -9 9 0 0 0 0 -9 0 9 0 1-4cyls.dat
1 16 0 -20 0 9 -1 0 0 0 -9 -9 0 0 1-4edge.dat
1 16 0 -20 0 -9 -1 0 0 0 -9 -9 0 0 1-4edge.dat
1 16 0 -20 -10 0 0 1 1 0 0 0 1 0 connect7.dat
1 16 0 -20 -9 8 0 0 0 0 -8 0 1 0 4-4edge.dat
1 16 0 -20 -9 8 0 0 0 0 -8 0 -1 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -20 -9 2.82843 0 2.82843 2.82843 0 -2.82843 0 -1 0 1-4cyli.dat
1 16 0 -20 -9 2.82843 0 2.82843 2.82843 0 -2.82843 0 1 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 0 -20 -9 -2.82843 0 -2.82843 -2.82843 0 2.82843 0 -1 0 1-4cyli.dat
1 16 0 -20 -9 -2.82843 0 -2.82843 -2.82843 0 2.82843 0 1 0 1-4edge.dat
1 16 0 -20 0 0 1 0 0 0 -1 -1 0 0 s\71710s02.dat
1 16 0 -20 -9 9 0 0 0 0 -9 0 1 0 2-4edge.dat
1 16 0 -20 -9 9 0 0 0 0 -9 0 1 0 2-4chrd.dat
1 16 0 -22.8284 -9.5 -2.8284 0 0 0 -1 0 0 0 0.5 rect3.dat
1 16 0 -17.1716 -9.5 2.8284 0 0 0 1 0 0 0 0.5 rect3.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2022-12-23 17:00:01

Orion Pobursky [OrionP]

made the following comment.

2022-12-23 20:05:01

The description is... much to be desired

Philippe Hurbain [Philo]

made the following comment.

2022-12-24 07:15:01

I can hear that, but then 48989.dat (and 65489.dat) need a better description too :D

Max Murtazin [SwampKryakwa]

made the following comment.

2022-12-24 12:35:01

Is this part an upcoming 2023 one? Can't seem to find it neither on BL or Brickset

Franklin W. Cain [fwcain]

made the following comment.

2022-12-24 15:10:01

This would be an amusing Technic piece to have on one's physical inventory.

Can you cite any upcoming sets that should contain this piece?

Orion Pobursky [OrionP]

made the following comment.

2022-12-24 15:55:02

No pic yet as the sets are unreleased but it's in the DB:
https://rebrickable.com/parts/2393/technic-pin-connector-hub-perpendicular-3l-with-2-pins/

P.S. What about RB's name?

Max Murtazin [SwampKryakwa]

made the following comment.

2022-12-24 20:15:01

It sounds fine, tho I feel it also needs a mention of pins being on the same side

Magnus Forsberg [MagFors]

made the following comment.

2022-12-24 20:20:02

I find the description to be correct.
There is a whole family of similar descriptions.
https://www.ldraw.org/cgi-bin/ptscan.cgi?q=cross%20block&;scope=header

Orion Pobursky [OrionP]

made the following comment.

2022-12-24 23:25:01

I'm not a fan of the naming of any of those parts either but I have nothing better to offer hence the comment as opposed to hold or forum post.

Philippe Hurbain [Philo]

made the following comment.

2022-12-25 15:10:02

Can be seen here: https://www.eurobricks.com/forum/index.php?/forums/topic/101081-general-part-discussion/&;do=findComment&comment=3575516

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2023-06-06 16:32:15

Rene Rechthaler [Blechtaler]
