Official File parts/24067.dat

Part Attributes:

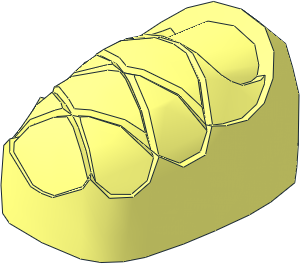

Minifig Bundled Baby with Stud Holder on Back

File Header:

0 Minifig Bundled Baby with Stud Holder on Back
0 Name: 24067.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS child, papoose, swaddled

0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2016-03-18 [Holly-Wood] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05

Show contents

0 // Understud
1 16 0 -8 0 1 0 0 0 -2 0 0 0 1 stud4.dat
1 16 0 -8 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 0 -8 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat

0 // Main subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24067s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24067s01.dat

0 // Patternable area
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24067s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24067s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24067s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24067s03.dat

0 // Common geometry
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24067s04.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Bertrand Lequy [Berth]

initially submitted the part.

2021-05-12 16:25:01

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-05-16 08:35:01

Missing condlines between the subfiles, on the inside:
2 5 0 -8.4 8 0 -12.802 13.642
2 5 0 -12.802 13.642 0 -11.478 17.841
2 5 0 -11.478 17.841 0 -1.5 18.068
2 5 0 -1.5 18.068 0 -1.509 19.101
2 5 0 3 -18.734 0 -7.636 -17.83
2 5 0 -7.636 -17.83 0 -10.315 -16.366
2 5 0 -10.315 -16.366 0 -8.566 -12.878
2 5 0 -8.566 -12.878 0 -8.4 -8
2 5 0 3 -18.734 0 3.063 -21.774

Maybe this should be made convex:
3 12 1.923 -11.018 -20.555 0 -11.393 -20.377 -1.923 -11.018 -20.555
3 12 1.875 -14.052 -17.722 0 -11.393 -20.377 -1.875 -14.052 -17.722
3 12 -1.923 -11.018 -20.555 0 -4.875 -21.485 1.923 -11.018 -20.555
3 12 -1.875 -14.052 -17.722 0 -14.623 -17.019 1.875 -14.052 -17.722

Collission with the bracket 42446
3 16 10.484 2.98 12.794 9.363 -6.486 11.638 8.732 1.347 15.051
3 16 -10.484 2.98 12.794 -9.363 -6.486 11.638 -8.732 1.347 15.051
1 10 0 13 10 1 0 0 0 0 1 0 -1 0 42446.dat

Bertrand Lequy [Berth]

made the following comment.

2021-05-16 19:25:01

the line
2 4 0 3 -18.734 0 3.063 -21.774
as condline appears quite allways that's why I didn't keep it

I follow the other suggestions. The collision problem seems to have been auto-solved when I deal with the concave/convex import issue.

I'm going to update the files all at once.

Bertrand Lequy [Berth]

submitted a new version of the part.

2021-05-17 14:20:02

Max Martin Richter [MMR1988]

posted a vote of Certify.

2021-12-26 11:40:01

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2022-11-01 10:50:01

* Missing conds:

5 24 0 -1.5 18.068 0 -1.509 19.101 -3.218 -1.326 18.732 3.218 -1.326 18.732
5 24 0 -17.823 16.146 0 -15.752 14.818 -4.436 -14.927 14.253 4.436 -14.927 14.253
5 24 0 3.064 -18.734 0 -7.636 -17.83 -5.867 3.064 -18.203 5.867 3.064 -18.203
5 24 0 -.546 -21.865 0 3.064 -21.774 6.769 3.064 -21.199 -6.769 3.064 -21.199

* Cond with wrong control points:

5 4 0 -7.636 -17.83 0 3 -18.734 5.867 3 -18.203 -5.867 3 -18.203
5 4 0 -.546 -21.865 0 3.063 -21.774 6.769 3.064 -21.199 -6.769 3.064 -21.199

[PTadmin]

edited the part header.

2022-11-01 11:05:01

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2023-01-23 08:50:01

Regenerated conds

Existing certification-votes were deleted.

Orion Pobursky [OrionP]

posted a vote of Hold.

2024-03-09 17:24:08

Not CC_BY_4

Willy Tschager [Holly-Wood]
