Official File parts/10197.dat
Part Attributes:
File Header:

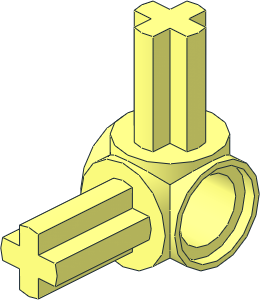

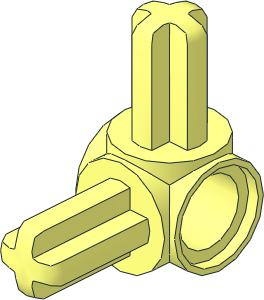

0 Technic Axle and Pin Connector Hub with 2 Axles at 90 Degrees
0 Name: 10197.dat
0 Author: Rolf Osterthun [Rolf]
0 !LDRAW_ORG Part UPDATE 2018-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2018-02-08 [arezey] Simplified using the new primitive axleconnect.dat
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
Show contents
1 16 -10 0 0 0 20 0 0 0 -9 -9 0 0 1-4cylo.dat
1 16 0 0 0 9 0.707 0 0 0 -9 -9 0.707 0 1-8edge.dat
1 16 0 0 0 -9 0.707 0 0 0 -9 -9 -0.707 0 1-8edge.dat
1 16 0 0 0 -9 -0.707 0 -9 0.707 0 0 0 -9 1-8edge.dat
1 16 0 0 0 9 -0.707 0 -9 -0.707 0 0 0 -9 1-8edge.dat
1 16 0 0 0 0 0 9 -9 0.707 0 -9 -0.707 0 1-8edge.dat
1 16 0 0 0 0 0 -9 -9 -0.707 0 -9 0.707 0 1-8edge.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 axleconnect.dat
1 16 0 0 0 0 1 0 0 0 1 1 0 0 axleconnect.dat
1 16 0 0 -9 9 0 0 0 0 -9 0 9 0 1-8cyls.dat
1 16 0 0 -9 -9 0 0 0 0 -9 0 9 0 1-8cyls.dat
1 16 0 0 -9 0 0 -9 -9 0 0 0 9 0 1-8cyls.dat
1 16 0 0 -9 0 0 9 -9 0 0 0 9 0 1-8cyls.dat
1 16 0 -9 0 9 0 0 0 9 0 0 0 -9 1-8cyls.dat
1 16 0 -9 0 -9 0 0 0 9 0 0 0 -9 1-8cyls.dat
1 16 0 -9 0 0 0 -9 0 9 0 -9 0 0 1-8cyls.dat
1 16 0 -9 0 0 0 9 0 9 0 -9 0 0 1-8cyls.dat
1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4cyli.dat
1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4cyli.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 connhole.dat
1 16 10 0 0 0 -20 0 9 0 0 0 0 9 1-4cylo.dat
1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4chrd.dat
1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4chrd.dat
1 16 0 -10 0 -9 0 0 0 1 0 0 0 -9 2-4edge.dat
1 16 0 0 -10 9 0 0 0 0 -9 0 1 0 2-4edge.dat
1 16 0 -10 0 1 0 0 0 -20 0 0 0 -1 axle.dat
1 16 0 0 -10 1 0 0 0 0 1 0 -20 0 axle.dat
