Official File parts/2443.dat
Part Attributes:
File Header:

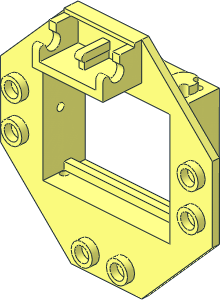

0 Hinge Window Frame 1 x 4 x 3 with Octagonal Panel
0 Name: 2443.dat
0 Author: Leonardo Zide [leozide]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1999-03-26 [PTadmin] Official Update 1999-02
0 !HISTORY 2007-05-12 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [nielsk] BFC'd and used more primitives (2006-01-09)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2020-08-08 [mkennedy] Used subpart, box2, and stug primitives
0 !HISTORY 2022-02-27 [MagFors] Corrected hinge design, added missing holes
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
0 // octagon
1 16 0 34 -14 36 0 0 0 0 30 0 -1 0 recte4.dat
4 16 -40 0 -10 -40 72 -10 -60 56 -10 -60 16 -10
4 16 40 72 -10 40 0 -10 60 16 -10 60 56 -10
4 16 -20 -24 -10 20 -24 -10 40 0 -10 -40 0 -10
4 16 20 96 -10 -20 96 -10 -40 72 -10 40 72 -10
3 16 -20 96 -10 -60 56 -10 -40 72 -10
3 16 20 96 -10 40 72 -10 60 56 -10
3 16 20 -24 -10 60 16 -10 40 0 -10
3 16 -20 -24 -10 -40 0 -10 -60 16 -10
1 16 -40 16 -12 0 -20 0 0 20 -20 2 0 0 box2-7.dat
1 16 40 16 -12 0 20 0 0 20 -20 2 0 0 box2-7.dat
1 16 -40 76 -12 0 0 -20 0 -1 -20 2 0 0 rect3.dat
1 16 20 76 -12 0 -20 20 0 20 0 2 0 0 box2-5.dat
1 16 0 -24 -14 0 0 20 0 1 0 4 0 0 rect.dat
4 16 -60 56 -14 -36 64 -14 -36 4 -14 -60 16 -14
3 16 -20 96 -14 -36 64 -14 -60 56 -14
3 16 -20 -24 -14 -60 16 -14 -36 4 -14
4 16 60 16 -14 36 4 -14 36 64 -14 60 56 -14
3 16 20 -24 -14 36 4 -14 60 16 -14
3 16 20 96 -14 60 56 -14 36 64 -14
3 16 -20 -4 -14 -20 -24 -14 -36 4 -14
3 16 20 -4 -14 36 4 -14 20 -24 -14
4 16 -36 4 -14 36 4 -14 20 -4 -14 -20 -4 -14
4 16 36 64 -14 -36 64 -14 -20 96 -14 20 96 -14
0 // studs
1 16 50 36 -14 0 0 1 1 0 0 0 1 0 stug2-1x2.dat
1 16 -50 36 -14 0 0 1 1 0 0 0 1 0 stug2-1x2.dat
1 16 0 86 -14 0 0 1 1 0 0 0 1 0 stug2-2x1.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug2-2x1.dat
1 16 0 68 0 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat
1 16 -30 -4 0 0 0 6 0 4 0 -6 0 0 2-4cylc.dat
1 16 30 -4 0 0 0 -6 0 4 0 -6 0 0 2-4cylc.dat
1 16 30 0 0 1 0 0 0 1 0 0 0 1 s\3853s01.dat
1 16 30 0 0 1 0 0 0 1 0 0 0 -1 s\3853s01.dat
1 16 -30 0 0 -1 0 0 0 1 0 0 0 -1 s\3853s01.dat
1 16 -30 0 0 -1 0 0 0 1 0 0 0 1 s\3853s01.dat
0 // hinge
2 24 20 -4 -14 20 -24 -14
2 24 -20 -24 -14 -20 -4 -14
2 24 20 -4 -36 20 -13 -36
2 24 16 -13 -36 16 -8 -36
2 24 -16 -8 -36 -16 -13 -36
2 24 -20 -13 -36 -20 -4 -36
1 16 0 -4 -25 -20 0 0 0 -1 0 0 0 11 rect.dat
1 16 0 -23 -18 0 0 20 1 0 0 0 1 0 rect2p.dat
1 16 0 -22 -16 16 0 0 0 -1 0 0 0 -2 rect3.dat
0 BFC INVERTNEXT
1 16 0 -15 -25 -16 0 0 0 0 7 0 11 0 box2-5.dat
4 16 16 -8 -36 -16 -8 -36 -20 -4 -36 20 -4 -36
4 16 -16 -13 -36 -20 -13 -36 -20 -4 -36 -16 -8 -36
4 16 20 -13 -36 16 -13 -36 16 -8 -36 20 -4 -36
1 16 2 -14 -28 0 -1 0 2 0 0 0 0 -2 2-4chrd.dat
1 16 2 -14 -28 0 -4 0 2 0 0 0 0 -2 2-4cylo.dat
1 16 -2 -14 -28 0 1 0 2 0 0 0 0 -2 2-4chrd.dat
1 16 0 -14 -14 -2 0 0 0 0 2 0 -14 0 box4o4a.dat
1 16 0 -10 -14 0 0 1.5 2 0 0 0 -14 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 -16 -14 -28 0 -4 0 4 0 0 0 0 4 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -16 -14 -28 0 -4 0 0 0 -4 4 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 -16 -14 -28 0 -4 0 4 0 0 0 0 -4 3-16cylo.dat
1 16 -20 -14 -28 0 1 0 4 0 0 0 0 4 1-4ndis.dat
1 16 -16 -14 -28 0 -1 0 4 0 0 0 0 4 1-4ndis.dat
1 16 -20 -14 -28 0 1 0 4 0 0 0 0 -4 3-16ndis.dat
1 16 -16 -14 -28 0 -1 0 4 0 0 0 0 -4 3-16ndis.dat
1 16 -20 -14 -28 0 1 0 0 0 -4 4 0 0 3-16ndis.dat
1 16 -16 -14 -28 0 -1 0 0 0 -4 4 0 0 3-16ndis.dat
0 BFC INVERTNEXT
1 16 20 -14 -28 0 -4 0 4 0 0 0 0 4 1-4cylo.dat
0 BFC INVERTNEXT
1 16 20 -14 -28 0 -4 0 0 0 -4 4 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 20 -14 -28 0 -4 0 4 0 0 0 0 -4 3-16cylo.dat
1 16 20 -14 -28 0 -1 0 4 0 0 0 0 4 1-4ndis.dat
1 16 16 -14 -28 0 1 0 4 0 0 0 0 4 1-4ndis.dat
1 16 20 -14 -28 0 -1 0 4 0 0 0 0 -4 3-16ndis.dat
1 16 16 -14 -28 0 1 0 4 0 0 0 0 -4 3-16ndis.dat
1 16 20 -14 -28 0 -1 0 0 0 -4 4 0 0 3-16ndis.dat
1 16 16 -14 -28 0 1 0 0 0 -4 4 0 0 3-16ndis.dat
1 16 18 -19.8478 -22.2346 2 0 0 0 -2.1522 0 0 0 -4.2346 box2-5.dat
1 16 20 -13 -34 0 -4 0 0 0 -2 -2 0 0 3-8cylo.dat
1 16 20 -13 -34 0 -1 0 0 0 -2 -2 0 0 3-8chrd.dat
1 16 16 -13 -34 0 1 0 0 0 -2 -2 0 0 3-8chrd.dat
2 24 20 -14.4142 -32.5858 20 -12.4692 -31.6956
2 24 16 -14.4142 -32.5858 16 -12.4692 -31.6956
4 16 16 -12.4692 -31.6956 16 -10 -32 16 -13 -36 16 -14.4142 -32.5858
4 16 20 -12.4692 -31.6956 16 -12.4692 -31.6956 16 -14.4142 -32.5858 20 -14.4142 -32.5858
4 16 20 -10 -32 20 -12.4692 -31.6956 20 -14.4142 -32.5858 20 -13 -36
4 16 16 -22 -14 16 -18 -24 16 -17.6956 -26.4692 16 -22 -26.4692
5 24 16 -14.4142 -32.5858 20 -14.4142 -32.5858 16 -14.8478 -33.2346 16 -12.4692 -31.6956
5 24 16 -12.4692 -31.6956 20 -12.4692 -31.6956 16 -11.1716 -30.8284 16 -14.4142 -32.5858
1 16 -18 -19.8478 -22.2346 -2 0 0 0 -2.1522 0 0 0 -4.2346 box2-5.dat
1 16 -20 -13 -34 0 4 0 0 0 -2 -2 0 0 3-8cylo.dat
1 16 -20 -13 -34 0 1 0 0 0 -2 -2 0 0 3-8chrd.dat
1 16 -16 -13 -34 0 -1 0 0 0 -2 -2 0 0 3-8chrd.dat
2 24 -20 -14.4142 -32.5858 -20 -12.4692 -31.6956
2 24 -16 -14.4142 -32.5858 -16 -12.4692 -31.6956
4 16 -16 -13 -36 -16 -10 -32 -16 -12.4692 -31.6956 -16 -14.4142 -32.5858
4 16 -16 -14.4142 -32.5858 -16 -12.4692 -31.6956 -20 -12.4692 -31.6956 -20 -14.4142 -32.5858
4 16 -20 -14.4142 -32.5858 -20 -12.4692 -31.6956 -20 -10 -32 -20 -13 -36
4 16 -16 -17.6956 -26.4692 -16 -18 -24 -16 -22 -14 -16 -22 -26.4692
5 24 -16 -14.4142 -32.5858 -20 -14.4142 -32.5858 -16 -14.8478 -33.2346 -16 -12.4692 -31.6956
5 24 -16 -12.4692 -31.6956 -20 -12.4692 -31.6956 -16 -14.4142 -32.5858 -16 -11.1716 -30.8284
4 16 -20 -22 -18 -20 -18 -24 -20 -17.6956 -26.4692 -20 -22 -26.4692
4 16 -20 -22 -18 -20 -24 -18 -20 -24 -14 -20 -4 -14
4 16 -20 -10 -24 -20 -18 -24 -20 -22 -18 -20 -4 -14
3 16 -20 -13 -36 -20 -10 -32 -20 -4 -36
4 16 -20 -4 -36 -20 -10 -32 -20 -10 -24 -20 -4 -14
4 16 -16 -22 -14 -16 -18 -24 -16 -10 -24 -16 -8 -14
4 16 -16 -8 -14 -16 -10 -24 -16 -10 -32 -16 -8 -36
3 16 -16 -13 -36 -16 -8 -36 -16 -10 -32
4 16 16 -10 -24 16 -18 -24 16 -22 -14 16 -8 -14
3 16 16 -13 -36 16 -10 -32 16 -8 -36
4 16 16 -8 -36 16 -10 -32 16 -10 -24 16 -8 -14
4 16 20 -17.6956 -26.4692 20 -18 -24 20 -22 -18 20 -22 -26.4692
4 16 20 -24 -14 20 -24 -18 20 -22 -18 20 -4 -14
4 16 20 -22 -18 20 -18 -24 20 -10 -24 20 -4 -14
4 16 20 -4 -14 20 -10 -24 20 -10 -32 20 -4 -36
3 16 20 -13 -36 20 -4 -36 20 -10 -32
0 // window
0 BFC INVERTNEXT
1 16 0 70 -10 0 0 36 -2 0 0 0 16 0 box3u2p.dat
4 16 40 72 10 36 72 6 -36 72 6 -40 72 10
4 16 -40 72 10 -36 72 6 -36 72 -10 -40 72 -10
4 16 -36 68 -10 -36 68 -6 36 68 -6 36 68 -10
1 16 0 70 -10 0 0 36 -2 0 0 0 -1 0 rect1.dat
4 16 36 64 -14 36 64 -6 -36 64 -6 -36 64 -14
4 16 -36 4 -14 -36 4 -6 36 4 -6 36 4 -14
4 16 40 0 -10 34 0 -6.828 -34 0 -6.828 -40 0 -10
4 16 -30 0 -6 -34 0 -6.828 34 0 -6.828 30 0 -6
4 16 30 0 6 34 0 6.828 -34 0 6.828 -30 0 6
4 16 -24 0 6 -24 0 -6 24 0 -6 24 0 6
4 16 -40 0 10 -34 0 6.828 34 0 6.828 40 0 10
4 16 -36 4 6 -36 4 10 36 4 10 36 4 6
4 16 -36 4 -2 -36 4 2 36 4 2 36 4 -2
4 16 -32 4 2 -32 4 6 32 4 6 32 4 2
4 16 -32 4 -6 -32 4 -2 32 4 -2 32 4 -6
4 16 36 64 6 36 64 10 -36 64 10 -36 64 6
4 16 32 64 -6 32 64 -2 -32 64 -2 -32 64 -6
4 16 32 64 2 32 64 6 -32 64 6 -32 64 2
4 16 -32 68 2 -32 68 6 32 68 6 32 68 2
4 16 -36 68 -2 -36 68 2 36 68 2 36 68 -2
4 16 -32 68 -6 -32 68 -2 32 68 -2 32 68 -6
4 16 40 72 -10 36 72 -10 36 72 6 40 72 10
1 16 0 0 0 40 0 0 0 1 0 0 0 10 recte4.dat
1 16 40 36 0 0 1 0 0 0 36 10 0 0 recte3.dat
1 16 -40 36 0 0 1 0 0 0 36 10 0 0 recte3.dat
2 24 36 72 -10 40 72 -10
2 24 40 72 10 -40 72 10
2 24 -40 72 -10 -36 72 -10
1 16 30 68 -8 1.5 0 0 0 4 0 0 0 2 box4-1.dat
1 16 10 68 -8 1.5 0 0 0 4 0 0 0 2 box4-1.dat
1 16 -10 68 -8 1.5 0 0 0 4 0 0 0 2 box4-1.dat
1 16 -30 68 -8 1.5 0 0 0 4 0 0 0 2 box4-1.dat
4 16 40 36 -6 40 32 -6 40 0 -10 40 72 -10
4 16 40 36 -2 40 36 -6 40 72 -10 40 72 10
4 16 40 32 -2 40 36 -2 40 72 10 40 0 10
4 16 40 0 -10 40 32 -6 40 32 -2 40 0 10
4 16 -40 0 -10 -40 32 -6 -40 36 -6 -40 72 -10
4 16 -40 72 -10 -40 36 -6 -40 36 -2 -40 72 10
4 16 -40 72 10 -40 36 -2 -40 32 -2 -40 0 10
4 16 -40 32 -2 -40 32 -6 -40 0 -10 -40 0 10
1 16 0 64 0 36 0 0 0 -4 0 0 0 -2 box3u2p.dat
0 BFC INVERTNEXT
1 16 -40 34 -4 0 4 0 -2 0 0 0 0 2 4-4cylo.dat
1 16 -36 34 -4 0 -1 0 -2 0 0 0 0 -2 4-4ndis.dat
1 16 -40 34 -4 0 1 0 -2 0 0 0 0 -2 4-4ndis.dat
0 BFC INVERTNEXT
1 16 40 34 -4 0 -4 0 -2 0 0 0 0 -2 4-4cylo.dat
1 16 36 34 -4 0 1 0 -2 0 0 0 0 2 4-4ndis.dat
1 16 40 34 -4 0 -1 0 -2 0 0 0 0 2 4-4ndis.dat
2 24 -36 4 10 36 4 10
2 24 -36 4 10 -36 64 10
2 24 36 4 10 36 64 10
2 24 -36 64 10 36 64 10
2 24 -36 64 -2 -36 64 -14
2 24 -36 64 10 -36 64 2
2 24 36 64 10 36 64 2
2 24 36 64 -2 36 64 -14
2 24 36 4 10 36 4 -14
2 24 -36 4 10 -36 4 -14
4 16 40 0 10 36 4 10 -36 4 10 -40 0 10
4 16 40 72 10 36 64 10 36 4 10 40 0 10
4 16 -40 72 10 -36 64 10 36 64 10 40 72 10
4 16 -40 0 10 -36 4 10 -36 64 10 -40 72 10
4 16 -36 36 -6 -36 60 -2 -36 60 2 -36 36 -2
4 16 -36 36 -6 -36 64 -14 -36 64 -2 -36 60 -2
3 16 -36 36 -2 -36 60 2 -36 64 10
3 16 -36 64 10 -36 60 2 -36 64 2
4 16 -36 32 -6 -36 4 -14 -36 64 -14 -36 36 -6
4 16 -36 32 -2 -36 4 10 -36 4 -14 -36 32 -6
4 16 -36 36 -2 -36 64 10 -36 4 10 -36 32 -2
4 16 36 36 -2 36 60 2 36 60 -2 36 36 -6
4 16 36 60 -2 36 64 -2 36 64 -14 36 36 -6
3 16 36 64 10 36 60 2 36 36 -2
3 16 36 64 2 36 60 2 36 64 10
4 16 36 36 -6 36 64 -14 36 4 -14 36 32 -6
4 16 36 32 -6 36 4 -14 36 4 10 36 32 -2
4 16 36 32 -2 36 4 10 36 64 10 36 36 -2
1 16 -34 64 -4 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 -34 64 -4 2 0 0 0 1 0 0 0 2 4-4ndis.dat
1 16 -34 68 -4 2 0 0 0 -1 0 0 0 -2 4-4ndis.dat
1 16 -34 68 -4 2 0 0 0 1 0 0 0 2 4-4edge.dat
0 BFC INVERTNEXT
1 16 -34 64 -4 2 0 0 0 4 0 0 0 2 4-4cyli.dat
1 16 -30 0 0 0 0 6 0 1 0 -6 0 0 2-4ndis.dat
1 16 30 0 0 0 0 -6 0 1 0 6 0 0 2-4ndis.dat
1 16 34 64 -4 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 34 64 -4 2 0 0 0 1 0 0 0 2 4-4ndis.dat
1 16 34 68 -4 2 0 0 0 -1 0 0 0 -2 4-4ndis.dat
1 16 34 68 -4 2 0 0 0 1 0 0 0 2 4-4edge.dat
0 BFC INVERTNEXT
1 16 34 64 -4 2 0 0 0 4 0 0 0 2 4-4cyli.dat
1 16 34 64 4 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 34 64 4 2 0 0 0 1 0 0 0 2 4-4ndis.dat
1 16 34 68 4 2 0 0 0 -1 0 0 0 -2 4-4ndis.dat
1 16 34 68 4 2 0 0 0 1 0 0 0 2 4-4edge.dat
0 BFC INVERTNEXT
1 16 34 64 4 2 0 0 0 4 0 0 0 2 4-4cyli.dat
1 16 -34 64 4 2 0 0 0 1 0 0 0 2 4-4edge.dat
1 16 -34 64 4 2 0 0 0 1 0 0 0 2 4-4ndis.dat
1 16 -34 68 4 2 0 0 0 -1 0 0 0 -2 4-4ndis.dat
1 16 -34 68 4 2 0 0 0 1 0 0 0 2 4-4edge.dat
0 BFC INVERTNEXT
1 16 -34 64 4 2 0 0 0 4 0 0 0 2 4-4cyli.dat
4 16 -36.828 0 4 -40 0 10 -40 0 -10 -36.828 0 -4
4 16 36.828 0 -4 40 0 -10 40 0 10 36.828 0 4
3 16 -34 0 6.828 -40 0 10 -36.828 0 4
3 16 -36.828 0 -4 -40 0 -10 -34 0 -6.828
3 16 -36.828 0 -4 -36 0 0 -36.828 0 4
3 16 36.828 0 4 36 0 0 36.828 0 -4
3 16 34 0 -6.828 40 0 -10 36.828 0 -4
3 16 36.828 0 4 40 0 10 34 0 6.828
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-08-13 17:45:01
Here is a better image of the hinge design. The opening is not vertical or horizontal, it is more diagonal. Maybe 45 degrees?
https://i.ebayimg.com/images/g/5K4AAOSwHXNfM7r4/s-l500.jpg
https://i.ebayimg.com/images/g/5K4AAOSwHXNfM7r4/s-l500.jpg
Yes, I would say 45 degrees after checking different images...
If I remember correctly, I found the set 6933 by my parents in law while playing with my nephews. When I'm next time there, I'll have a look.
If I remember correctly, I found the set 6933 by my parents in law while playing with my nephews. When I'm next time there, I'll have a look.
Forgot to look for this part. So it needs to wait a little more.
Almost a complete rework.
Added missing details on the window, missing holes in the studs.
Complete redesign of the hinge.
Existing certification-votes were deleted.
Added missing details on the window, missing holes in the studs.
Complete redesign of the hinge.
Existing certification-votes were deleted.
Added a history line
2022-02-27 08:40:01
Reference image for the redesign:
https://brickshelf.com/gallery/gyperemi/Space/Sets/68xx/6893/6893-3.jpg
https://brickshelf.com/gallery/gyperemi/Space/Sets/68xx/6893/6893-3.jpg
Extraneous edge line here
2 24 -20 -12.4692 -31.6956 -16 -12.4692 -31.6956
Missing complementary condline here:
2 24 -16 -14.4142 -32.5858 -20 -14.4142 -32.5858
...and symmetrical of course.
2 24 -20 -12.4692 -31.6956 -16 -12.4692 -31.6956
Missing complementary condline here:
2 24 -16 -14.4142 -32.5858 -20 -14.4142 -32.5858
...and symmetrical of course.
Corrected edge and cond lines.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2022-02-27 17:20:01
2023-09-11 13:12:28
2023-10-17 03:39:34
2023-10-31 03:34:33
Release 2023-05
Creative Commons Attribution License information
This part is copyright © Leonardo Zide
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Niels Karsdorp,
Mark Kennedy,
Magnus Forsberg,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
https://www.ebay.com/itm/Lego-Window-Frame-1x4x3-with-Octagonal-Panel-and-Hinge-2443-Black-x1/274489878508?epid=1117242856&;hash=item3fe8df27ec:g:ePQAAOSwRQpfXSiu
It is also missing all the small holes for window glass and window panes.
https://i.ebayimg.com/images/g/elEAAOSwLSBfWg9Z/s-l1600.jpg
Like in this part:
1 12 0 0 0 1 0 0 0 1 0 0 0 1 3853.dat
All of the empty comments should be removed.
0
