Official File parts/24199.dat
Part Attributes:
File Header:

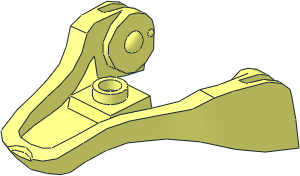

0 Animal Dragon Head Jaw Lower with 1 Stud
0 Name: 24199.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Stud position: Y=-5, Z=-37.5
0 BFC CERTIFY CCW
0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2018-05-09 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
1 16 0 -5 -37.5 0 0 -1 0 1 0 1 0 0 stud2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24199s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24199s01.dat
4 16 9.544 -0.416 -64.604 -9.544 -0.416 -64.604 -7.358 -0.363 -72.573 7.358 -0.363 -72.573
4 16 7.358 -0.363 -72.573 -7.358 -0.363 -72.573 -5.074 -0.378 -74.144 5.074 -0.378 -74.144
3 16 -5.074 -0.378 -74.144 0 -0.228 -74.749 5.074 -0.378 -74.144
4 16 11.327 -0.374 -54.602 -11.327 -0.374 -54.602 -9.544 -0.416 -64.604 9.544 -0.416 -64.604
3 16 -7.949 6.092 -63.48 7.949 6.092 -63.48 0 11.581 -68.134
4 16 7.949 6.092 -63.48 -7.949 6.092 -63.48 -8.787 3.252 -55.478 8.787 3.252 -55.478
4 16 9.824 2.287 -47.227 -9.824 2.287 -47.227 -10.977 3.207 -37.686 10.977 3.207 -37.686
4 16 9.844 5.345 -28.009 -9.844 5.345 -28.009 -10.349 0.175 -27.812 10.349 0.175 -27.812
4 16 9.626 -5 -47.003 -9.626 -5 -47.003 -10.178 -0.2116 -47.6165 10.178 -0.2116 -47.6165
4 16 10.349 0.175 -27.812 -10.349 0.175 -27.812 -9.572 -5 -27.929 9.572 -5 -27.929
4 16 9.572 -5 -27.929 -9.572 -5 -27.929 -9.626 -5 -47.003 9.626 -5 -47.003
4 16 10.977 3.207 -37.686 -10.977 3.207 -37.686 -9.844 5.345 -28.009 9.844 5.345 -28.009
4 16 8.787 3.252 -55.478 -8.787 3.252 -55.478 -9.824 2.287 -47.227 9.824 2.287 -47.227
2 24 9.844 5.345 -28.009 -9.844 5.345 -28.009
2 24 9.626 -5 -47.003 -9.626 -5 -47.003
2 24 -10.178 -0.2116 -47.6165 10.178 -0.2116 -47.6165
2 24 9.572 -5 -27.929 -9.572 -5 -27.929
4 16 11.327 -0.374 -54.602 10.178 -0.2116 -47.6165 -10.178 -0.2116 -47.6165 -11.327 -0.374 -54.602
5 24 9.824 2.287 -47.227 -9.824 2.287 -47.227 8.787 3.252 -55.478 -10.977 3.207 -37.686
5 24 9.544 -0.416 -64.604 -9.544 -0.416 -64.604 11.327 -0.374 -54.602 -7.358 -0.363 -72.573
5 24 -7.358 -0.363 -72.573 7.358 -0.363 -72.573 -5.074 -0.378 -74.144 9.544 -0.416 -64.604
5 24 -8.787 3.252 -55.478 8.787 3.252 -55.478 -9.824 2.287 -47.227 7.949 6.092 -63.48
5 24 -10.349 0.175 -27.812 10.349 0.175 -27.812 -9.572 -5 -27.929 9.844 5.345 -28.009
5 24 11.327 -0.374 -54.602 -11.327 -0.374 -54.602 -9.544 -0.416 -64.604 10.178 -0.2116 -47.6165
5 24 -7.949 6.092 -63.48 7.949 6.092 -63.48 -8.787 3.252 -55.478 0 11.581 -68.134
5 24 5.074 -0.378 -74.144 -5.074 -0.378 -74.144 7.358 -0.363 -72.573 0 -0.228 -74.749
5 24 -10.977 3.207 -37.686 10.977 3.207 -37.686 -9.844 5.345 -28.009 9.824 2.287 -47.227
5 24 -10.977 3.207 -37.686 -9.844 5.345 -28.009 10.977 3.207 -37.686 -24.875 2.571 -35.457
5 24 0 0.807 -81.048 0 8.4 -75.244 -4.989 0.934 -80.451 4.989 0.934 -80.451
5 24 9.824 2.287 -47.227 8.787 3.252 -55.478 -9.824 2.287 -47.227 16.542 2.141 -55.925
5 24 7.949 6.092 -63.48 0 11.581 -68.134 -7.949 6.092 -63.48 7.378 10.118 -68.524
5 24 10.349 0.175 -27.812 9.844 5.345 -28.009 18.587 0.173 -25.01 -10.349 0.175 -27.812
5 24 9.844 5.345 -28.009 10.977 3.207 -37.686 -9.844 5.345 -28.009 24.875 2.571 -35.457
5 24 0 8.4 -75.244 0 11.581 -68.134 -7.367 7.114 -74.864 7.367 7.114 -74.864
5 24 0 11.581 -68.134 -7.949 6.092 -63.48 7.949 6.092 -63.48 -7.378 10.118 -68.524
5 24 -7.949 6.092 -63.48 -8.787 3.252 -55.478 -14.331 4.298 -63.639 7.949 6.092 -63.48
5 24 8.787 3.252 -55.478 7.949 6.092 -63.48 14.331 4.298 -63.639 -8.787 3.252 -55.478
5 24 -10.178 -0.2116 -47.6165 -11.327 -0.374 -54.602 11.327 -0.374 -54.602 -12.901 -0.211 -47.844
5 24 -9.824 2.287 -47.227 -10.977 3.207 -37.686 -18.862 1.407 -47.976 9.824 2.287 -47.227
5 24 0 0.566 -78.302 0 0.807 -81.048 -3.557 0.559 -79.405 3.557 0.559 -79.405
5 24 0 -0.228 -74.749 0 -1.769 -75.717 5.074 -0.378 -74.144 -5.074 -0.378 -74.144
5 24 -8.787 3.252 -55.478 -9.824 2.287 -47.227 8.787 3.252 -55.478 -16.542 2.141 -55.925
5 24 -9.844 5.345 -28.009 -10.349 0.175 -27.812 9.844 5.345 -28.009 -18.587 0.173 -25.01
5 24 10.178 -0.2116 -47.6165 11.327 -0.374 -54.602 12.901 -0.211 -47.844 -10.178 -0.2116 -47.6165
5 24 0 -1.276 -77.717 0 0.566 -78.302 -3.654 -0.91 -78.759 3.654 -0.91 -78.759
5 24 0 -1.769 -75.717 0 -1.276 -77.717 -3.654 -0.91 -78.759 3.654 -0.91 -78.759
5 24 10.977 3.207 -37.686 9.824 2.287 -47.227 18.862 1.407 -47.976 -10.977 3.207 -37.686
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2018-05-09 16:50:01
2021-09-25 20:55:02
2023-09-09 14:12:02
2023-09-09 14:27:52
Why is Elves use in the description? I think this needs a better description.
Header Edits
description:
Animal Dragon Head Elves Lower Jaw
to
Animal Dragon Head Jaw Lower with 1 Stud
Harmonized description with Rebrickable.
2023-10-11 15:02:31
2023-10-31 03:34:33
Release 2023-05
